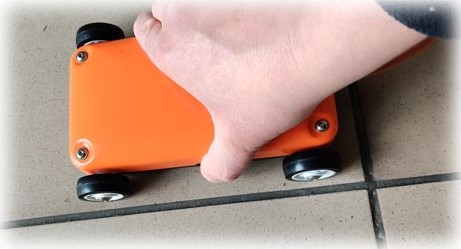

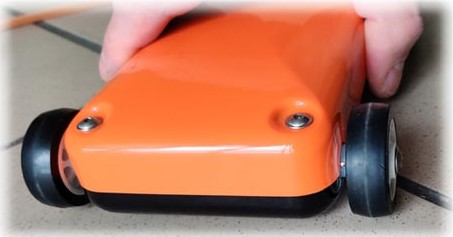

VIY5-1500 Ground Penetrating Radar
The VIY5-1500 Ground Penetrating Radar (GPR) is a high-frequency professional radar system specifically developed for non-destructive testing (NDT) of concrete, brick, and other construction materials. Equipped with a 1500 MHz shielded antenna, the system delivers exceptional near-surface resolution, enabling engineers and inspectors to accurately locate reinforcement bars, cables, pipes, cracks, and internal voids without damaging the structure.
The VIY5-1500 combines high-speed digital data acquisition, advanced signal processing, and intuitive software to provide fast, reliable, and accurate inspection results. Its lightweight antenna, integrated measuring wheel, and USB-powered operation allow for easy deployment in the field while eliminating the need for an external control unit. The system is ideal for construction professionals, civil engineers, infrastructure inspectors, and researchers requiring precise structural evaluation.
The VIY5-1500 GPR is suitable for concrete structure inspection and searching of both metallic and dielectric objects (cracks, voids, rebars, etc.).
Basic applications:
- Concrete and brick structure inspection;
- Cable and pipes detection
- Examination of engineering construction (building walls and fondations, etc);
- Search for reinforcement rods in building constructions;
- Search for hidden and immured objects.
Features:
- Real time signal pre-processing (Online filtering)
- Auto-calibrated online filters

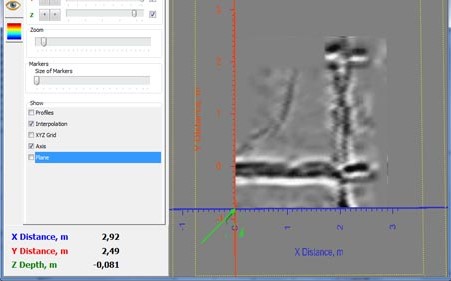

- Wide range of post processing tools
- Increased dynamic range due to digital traces-stacking
- Innovative Telbin technology to get high signal-to-noise ratio

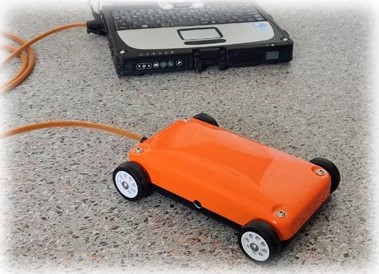

- Connection to laptop: USB
- No additional Control Unit. Any Windows-based laptop can be used for working
- Antenna case: IP65 compliant
- Not need battary, powered from computer's USB port
- Low power consumption
Specification:
- Antenna frequencies: 1500MHz
- Analogue-to-Digital Converter range: 18 bit
- Dynamic range: not less than 135 dB
- Data acquisition rate: up to 150 traces per second
- Survey window: 8, 12, 16, 20 nsec
- Maximum number of samples per trace: 1 000
- Trace stacking number: up to 300
- Depth of sounding: up to 0,5 m (determined by soil properties)
- Spatial resolution: <0.03 m
- Trigger mode: single, internal, external
- File size of a single profile: up to 1 000 000 traces
- Interface: USB2
- Built-in inclinometer
- Dimensions (L x W x H): 190x40x40 mm
- Weight of antenna 0,6 kg
- Operating temperature range: -20°C to 40°C
- Environmental rating: IP65
- Continuous operation timt: until the laptop runs out
