VIY5-070 Ground Penetrating Radar
The VIY5-070 Ground Penetrating Radar (GPR) is a professional low-frequency subsurface imaging system designed for deep geological investigations and large-scale underground exploration. Equipped with a 70 MHz shielded antenna system, the VIY5-070 provides exceptional penetration depth, allowing professionals to investigate geological formations, underground voids, tunnels, and other large subsurface structures. Under favorable ground conditions, the system can achieve a maximum investigation depth of up to 30 meters, making it the deepest-penetrating model in the VIY5 product range.
Unlike compact monoblock GPR systems, the VIY5-070 utilizes separate transmitter and receiver antenna units, minimizing surface interference and improving signal quality during deep investigations. Combined with advanced Telbin® signal enhancement technology, real-time filtering, GPS compatibility, and professional VIY software, the system delivers reliable performance for demanding geological, hydrological, environmental, and engineering surveys.
Basic applications:
- Research of geological structures
- Investigation of man-caused accident areas
- Search for underground objects (voids, cracks, heterogeneous inclusions, fissuring rocks)
- Search for underground constructions (underground passages, sewers, etc.)
- Ground water level mapping
- Search for soil frost penetration zones, permafrost areas
- Exploring ground structure in quarries
- Subsurface deposits profiling
- Search for source of leakage from pipelines by indirect signs (excessive moisture)
- Hydrologic investigations of bottom structure at fresh water reservoirs
Features:

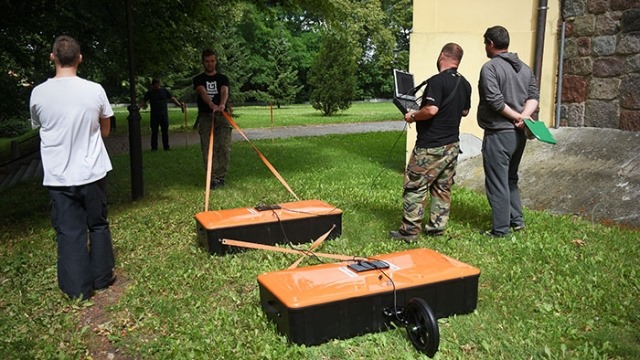

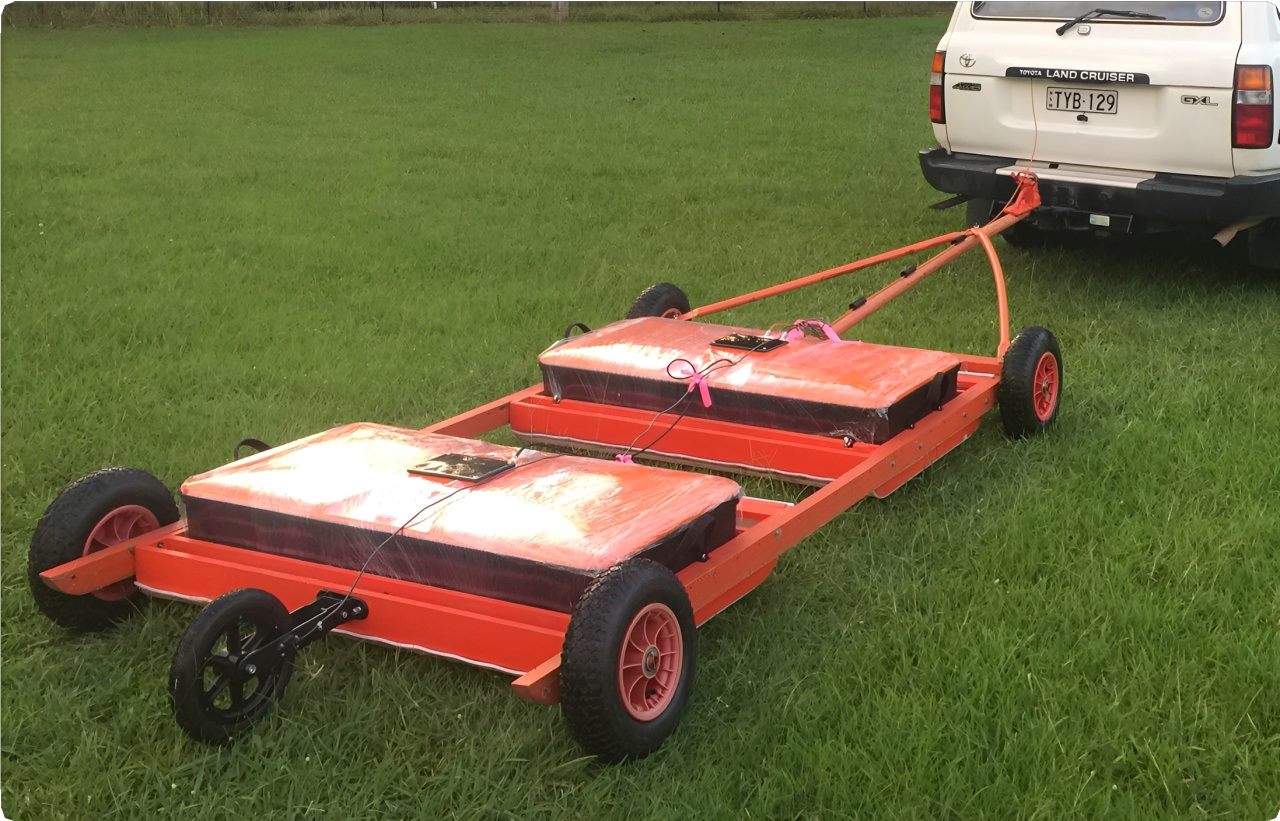

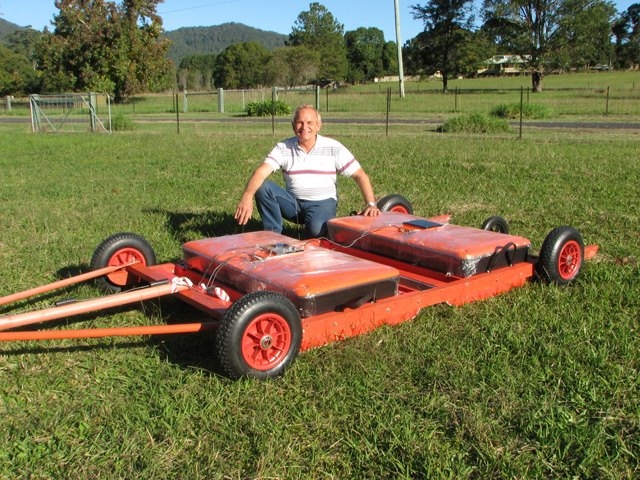

- GPR consists of 2 separate antenna units: transmitter and receiver
- Direct connection of Measuring wheel and GPS to antenna unit
- Receiver antenna unit can be connected to laptop through Wi-Fi or USB
- Real time signal pre-processing (Online filtering)
- Auto-Calibrated online filters
- Increased dynamic range due to digital traces-stacking
- High signal-to-noise ration due to innovative Telbin technology
- Automatic recognition of connected antenna unit
- Wide range of post processing filters
- GPR data are processed in a computer with VIY3 software installed
- No additional Control Unit. Any Windows-based computer (laptop) can be used for working
- Batteries are installed in each antenna unit
- Low power consumption: not less than 6 hours of working session before next charging
- Long-life sealed lead acid batteries permitted for air-carrying
- Durable antenna bodies made of fiberglass plastic
Specifications:
- Antenna frequency: 70 MHz
- Receiver-to-Transmitter offset: 1500 mm
- Analogue-to-Digital Converter range: 18 bit
- Dynamic range: not less than 135 dB
- Data acquisition rate: up to 120 traces per second
- Survey window: 240, 360, 480, 600 ns
- Maximum number of samples per trace: 1 000
- Trace stacking number: up to 300

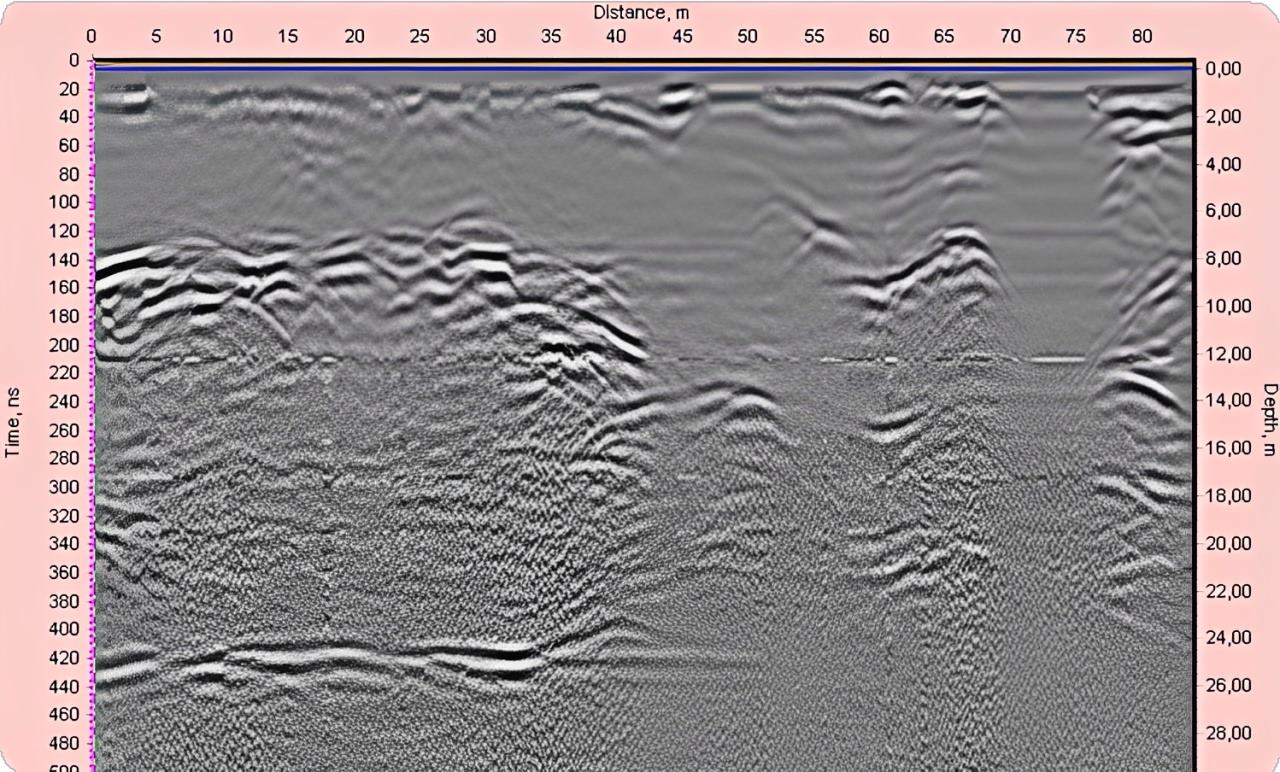

- Depth of sounding: up to 30 m (determined by soil properties)
- Spatial resolution: better than 2.0 m
- Trigger mode: single, internal, external
- File size of a single profile: up to 1 000 000 traces
- Interface: USB2 or WiFi
- Dimensions (L x W x H) each antenna: 1200x607x308 mm
- Weight: 2*36.0 kg
- Operating temperature range: -20°C to 40°C
- Continuous operation time: not less than 6 hours
