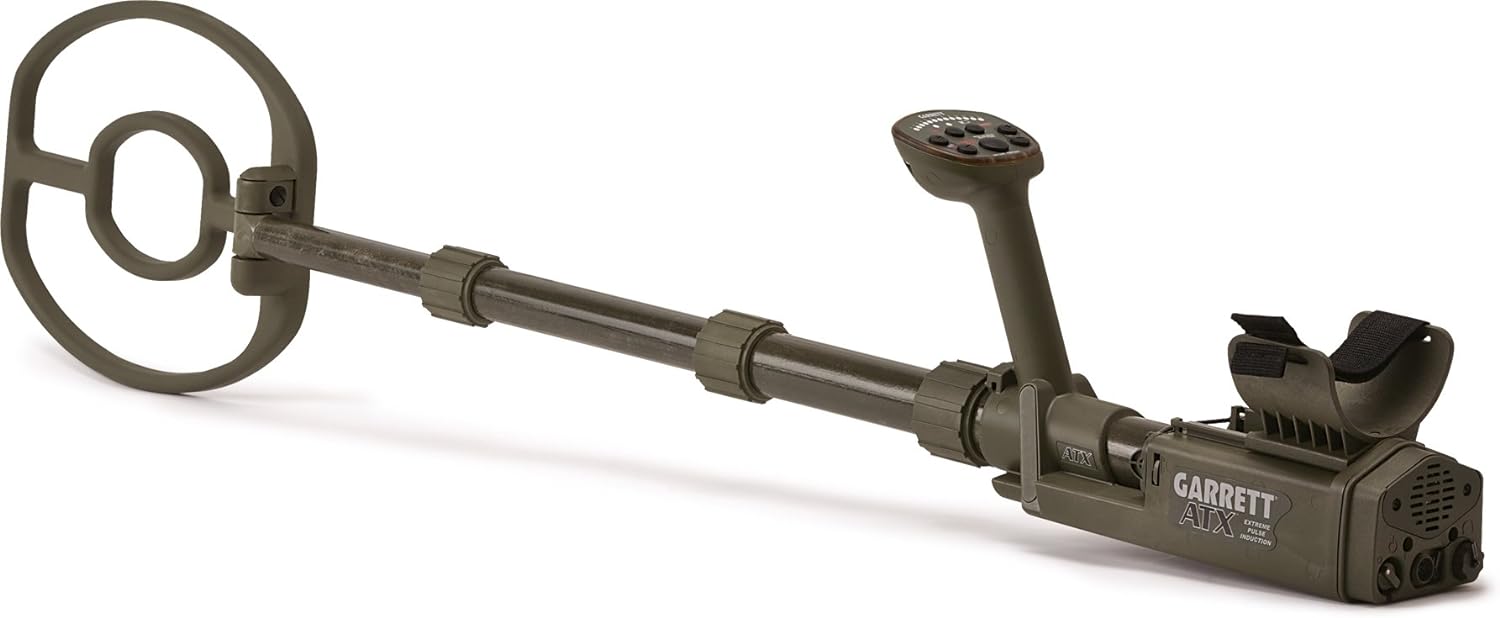

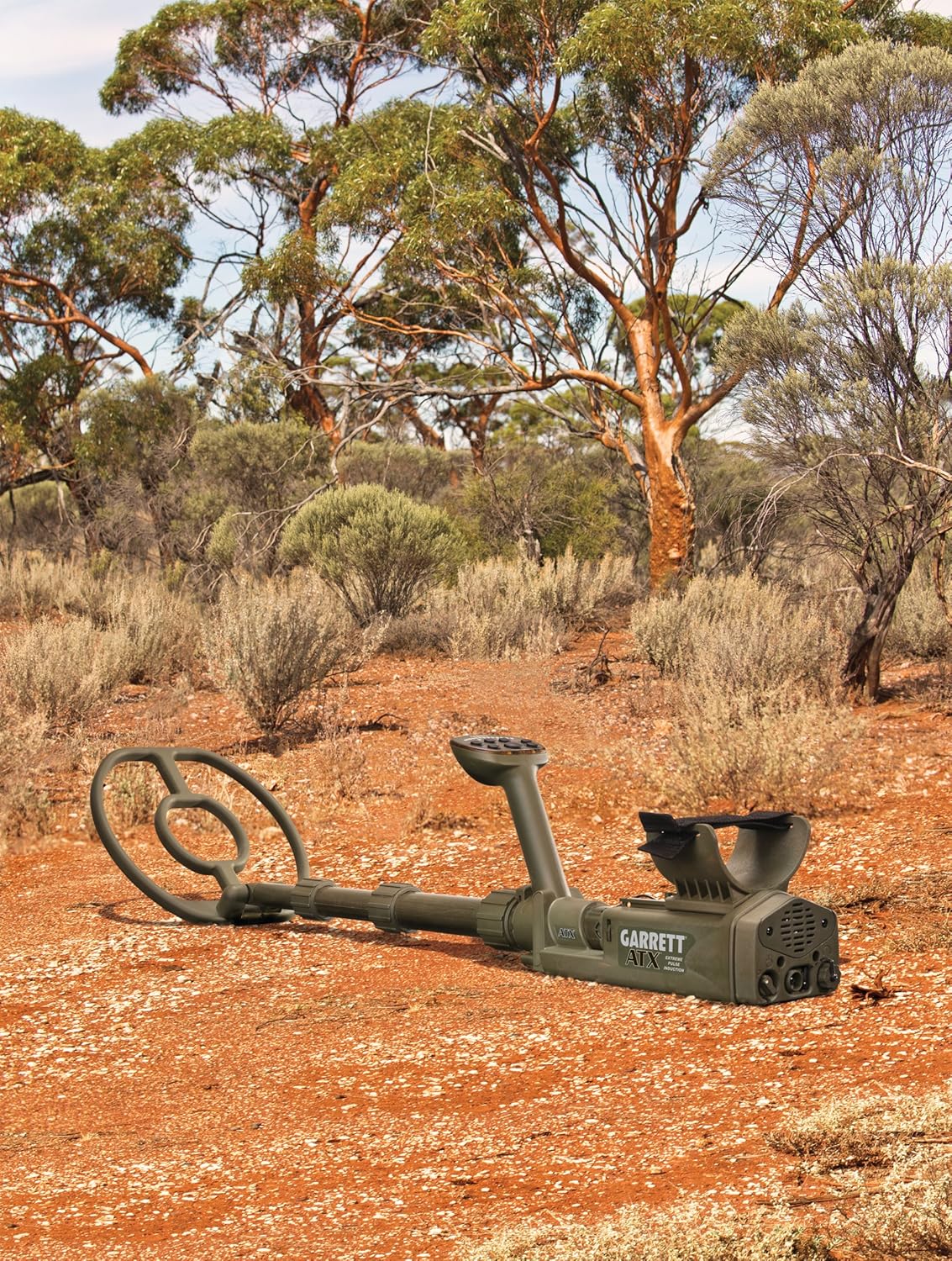

Garrett ATX Pulse Induction Metal Detector

PN: 1140860	ATX with 10" x 12" DD open coil
PN: 1140870	ATX with 11" x 13" DD closed coil
PN: 1140880	ATX with 11" x 13" Mono closed coil

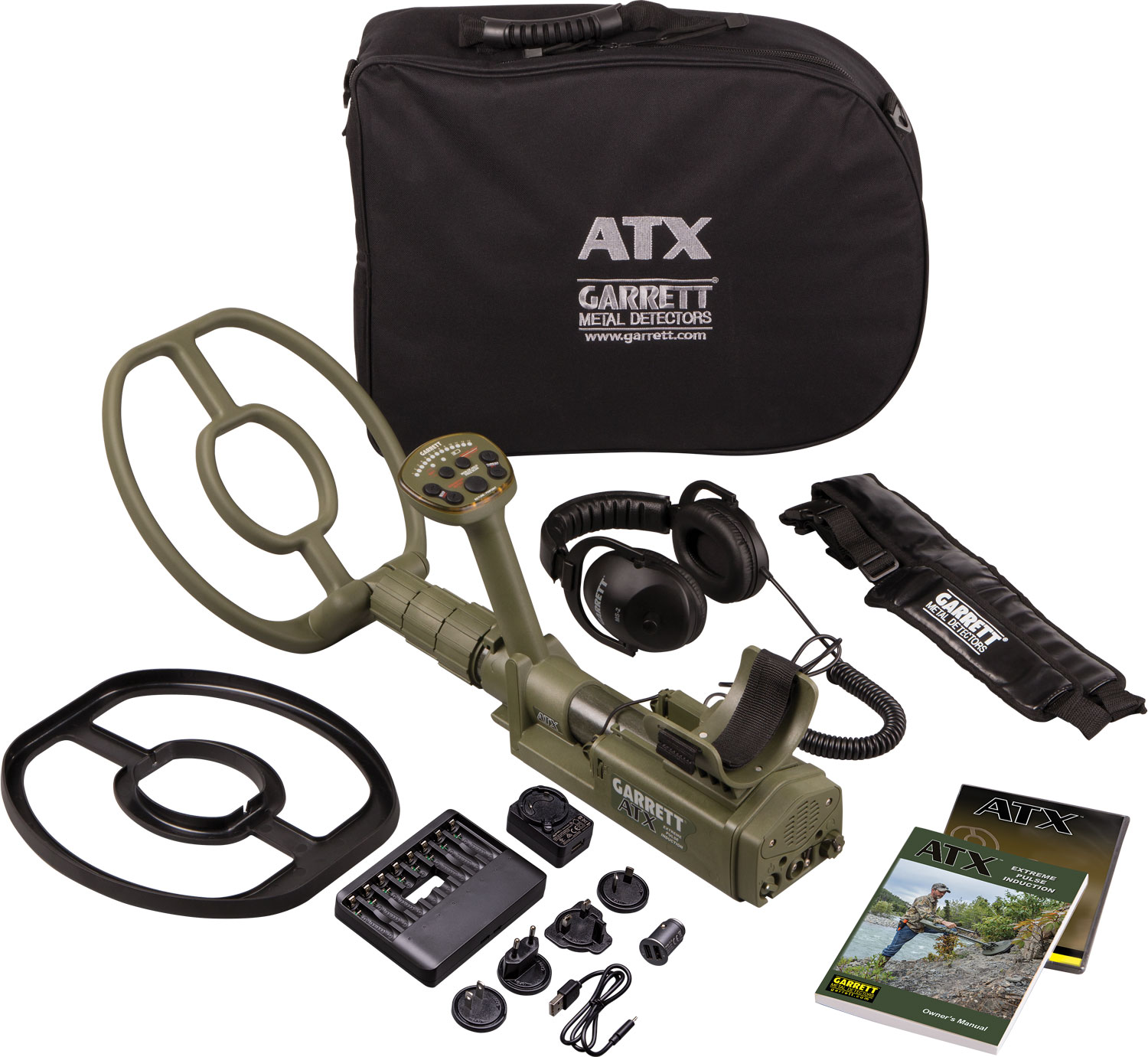

ATX Basic Packages Include:

Garrett MS-2 Headphones (waterproof headphones sold separately)
10" x 12" Open coil cover
Garrett Detector Sling
Battery charger
AA alkaline and rechargeable batteries
Soft storage/travel case
Owner’s Manual

ATX DEEPSEEKER Packages:

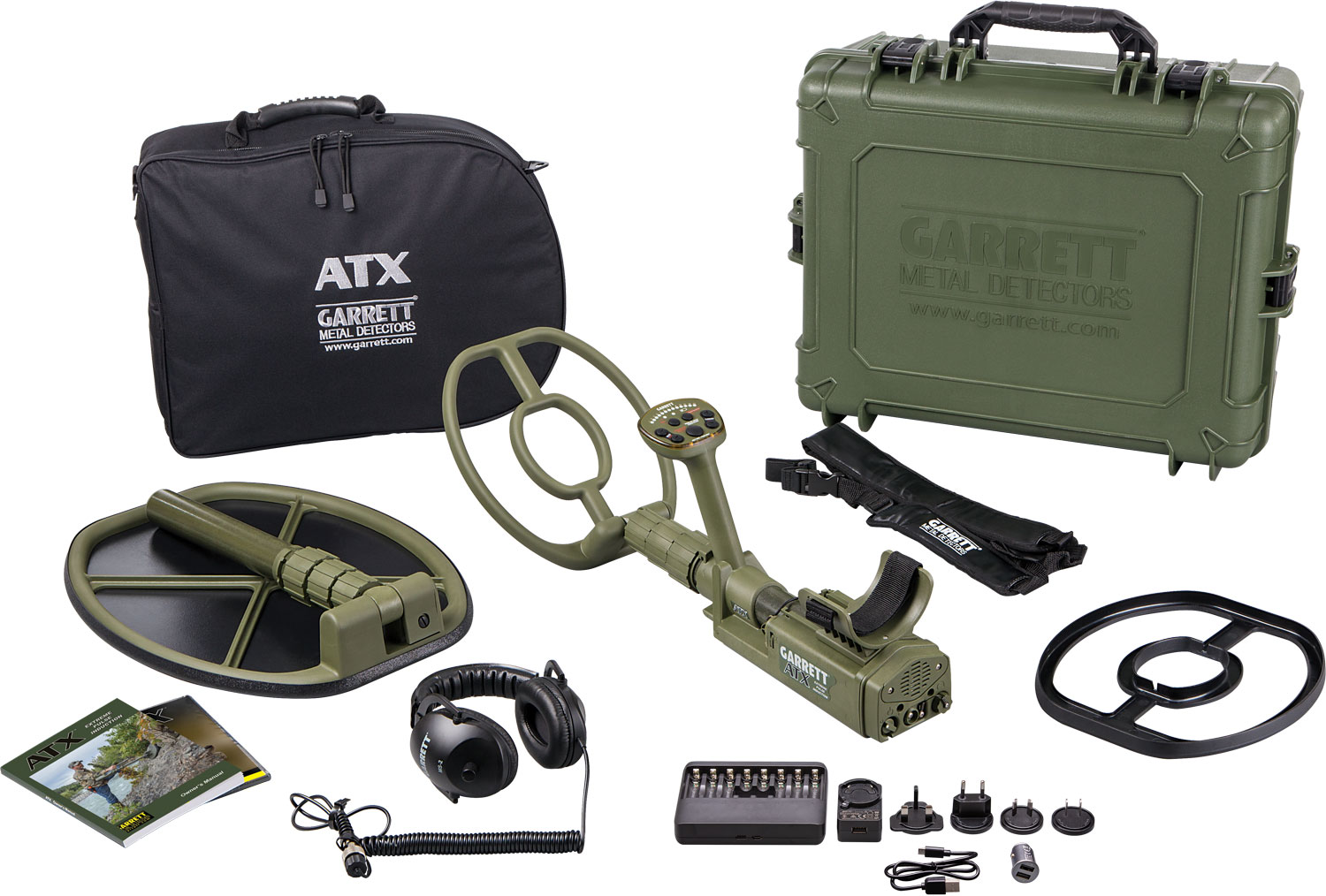

Garrett ATX DEEPSEEKER Package with 20" (50 cm) Deepseeker and 10"x12" DD open searchcoil (shown)
PN: 1140820

Garrett ATX DEEPSEEKER Package with 20" (50 cm) Deepseeker and 11"x13" DD closed searchcoil
PN: 1140830

Garrett ATX DEEPSEEKER Package with 20" (50 cm) Deepseeker and 11"x13" Mono closed searchcoil
PN: 1140840

ATX DEEPSEEKER Packages include:

20" (50cm) Deepseeker mono coil
Garrett MS-2 Headphones (waterproof headphones sold separately)
Military-grade Garrett hard case
15" x 20" Closed coil cover (shown attached to searchcoil)
10" x 12" Open coil cover
Garrett Detector Sling
Battery charger
AA alkaline and rechargeable batteries
Soft storage/travel case
DVD and Manual

Accessory items are subject to change.

Garrett ATX Metal Detector

Motion and Non-Motion Modes: Provides optimum performance based on your hunting preference and conditions.

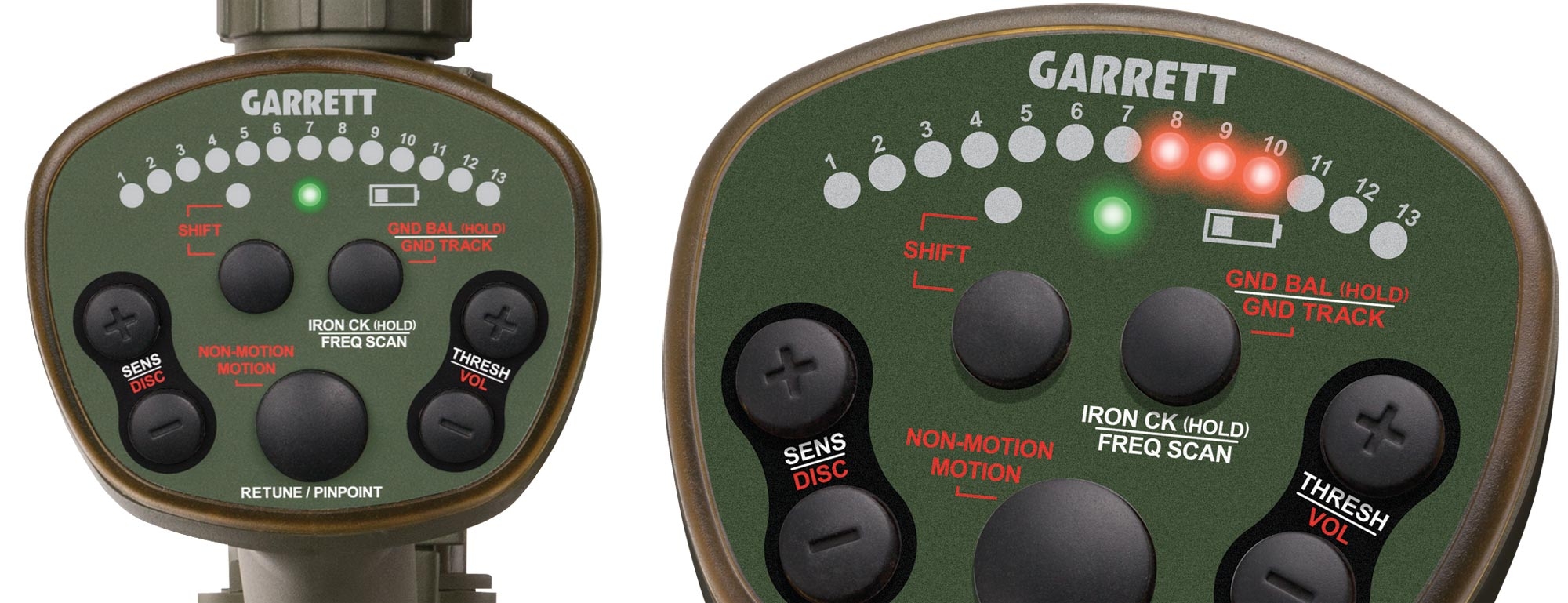

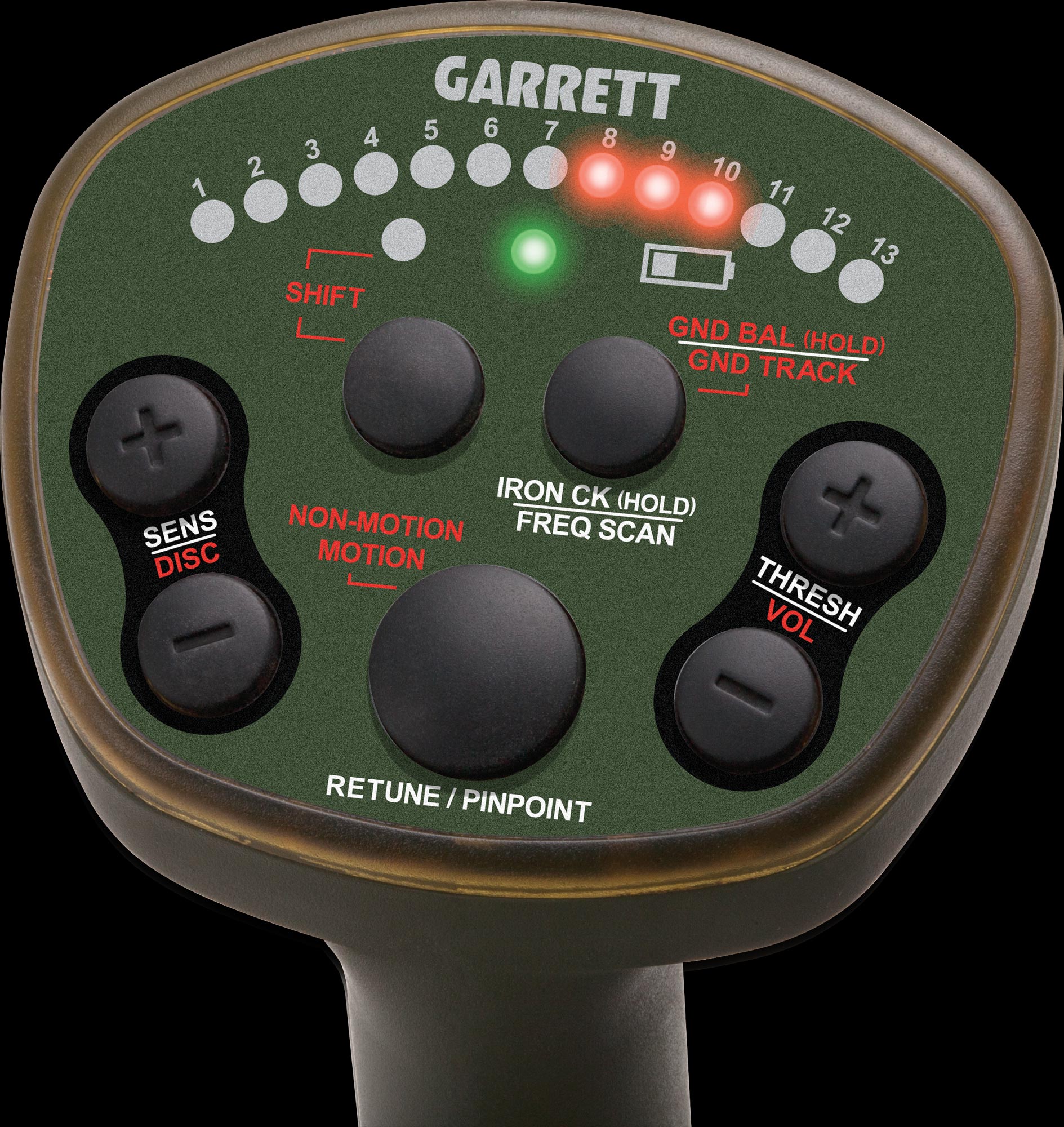

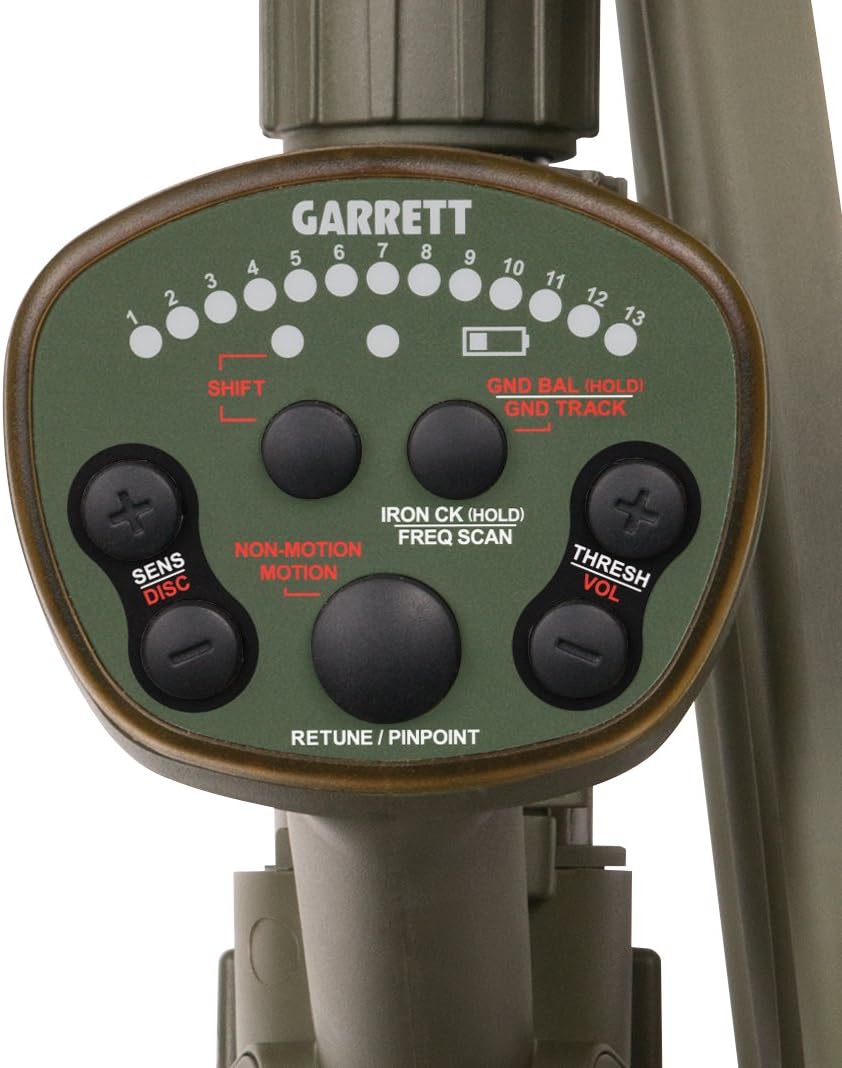

LED indicators: show signal strength and current settings.

Garrett ATX Metal Detector

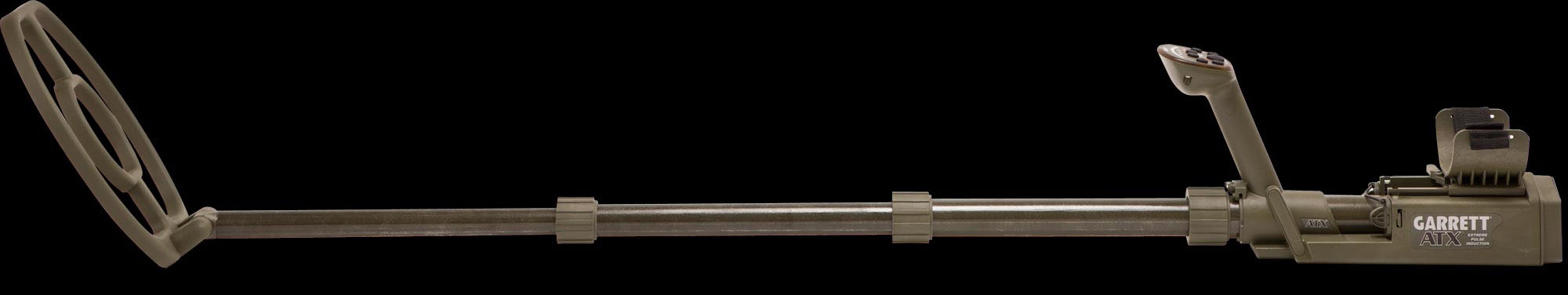

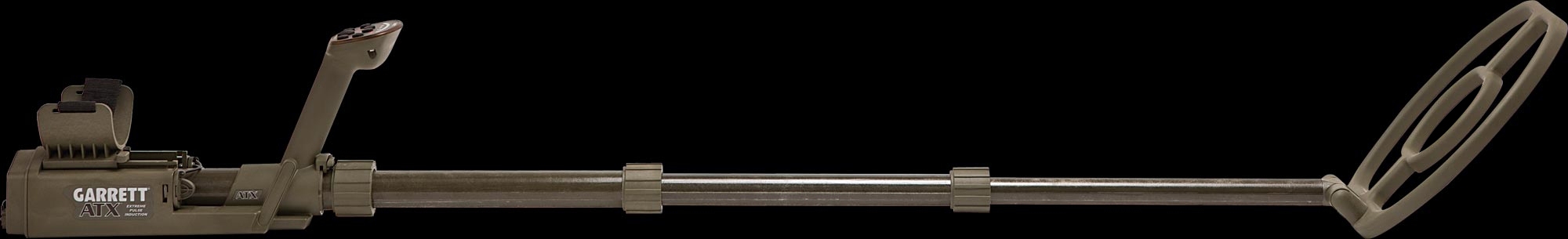

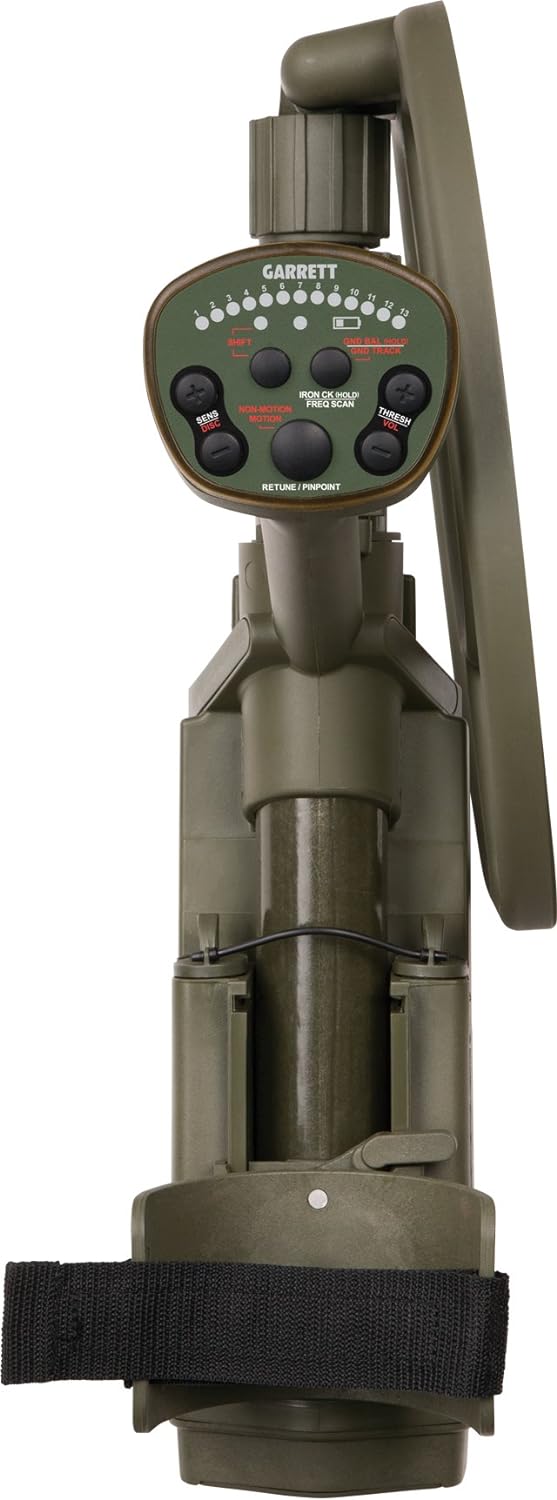

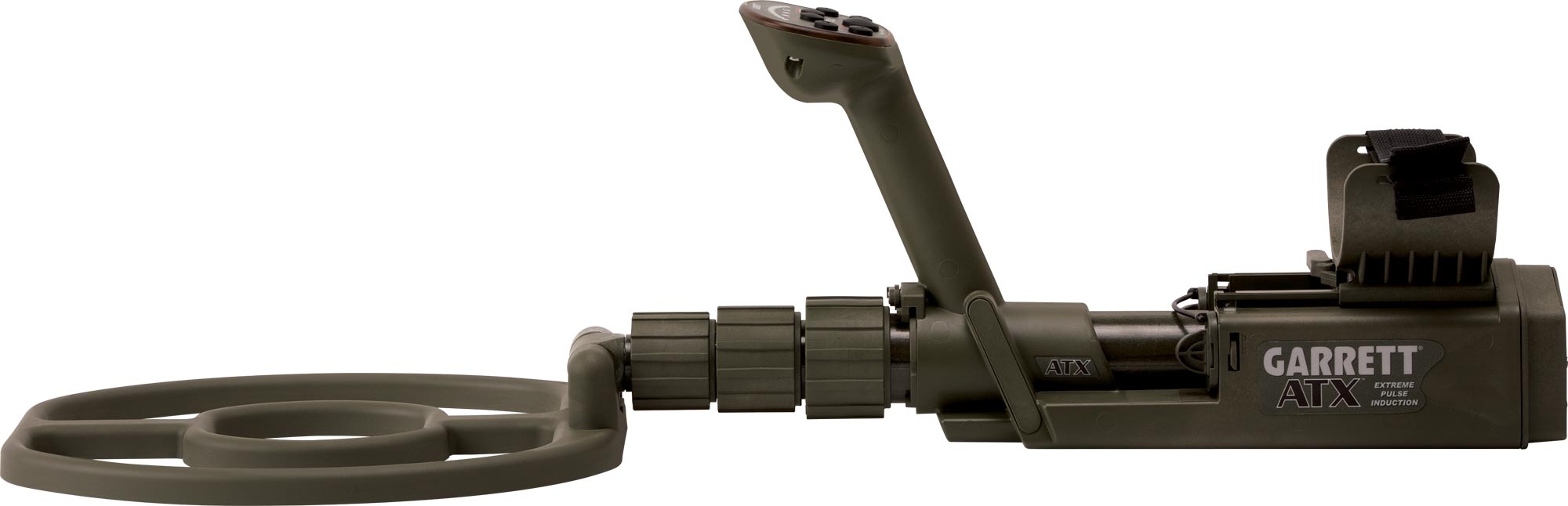

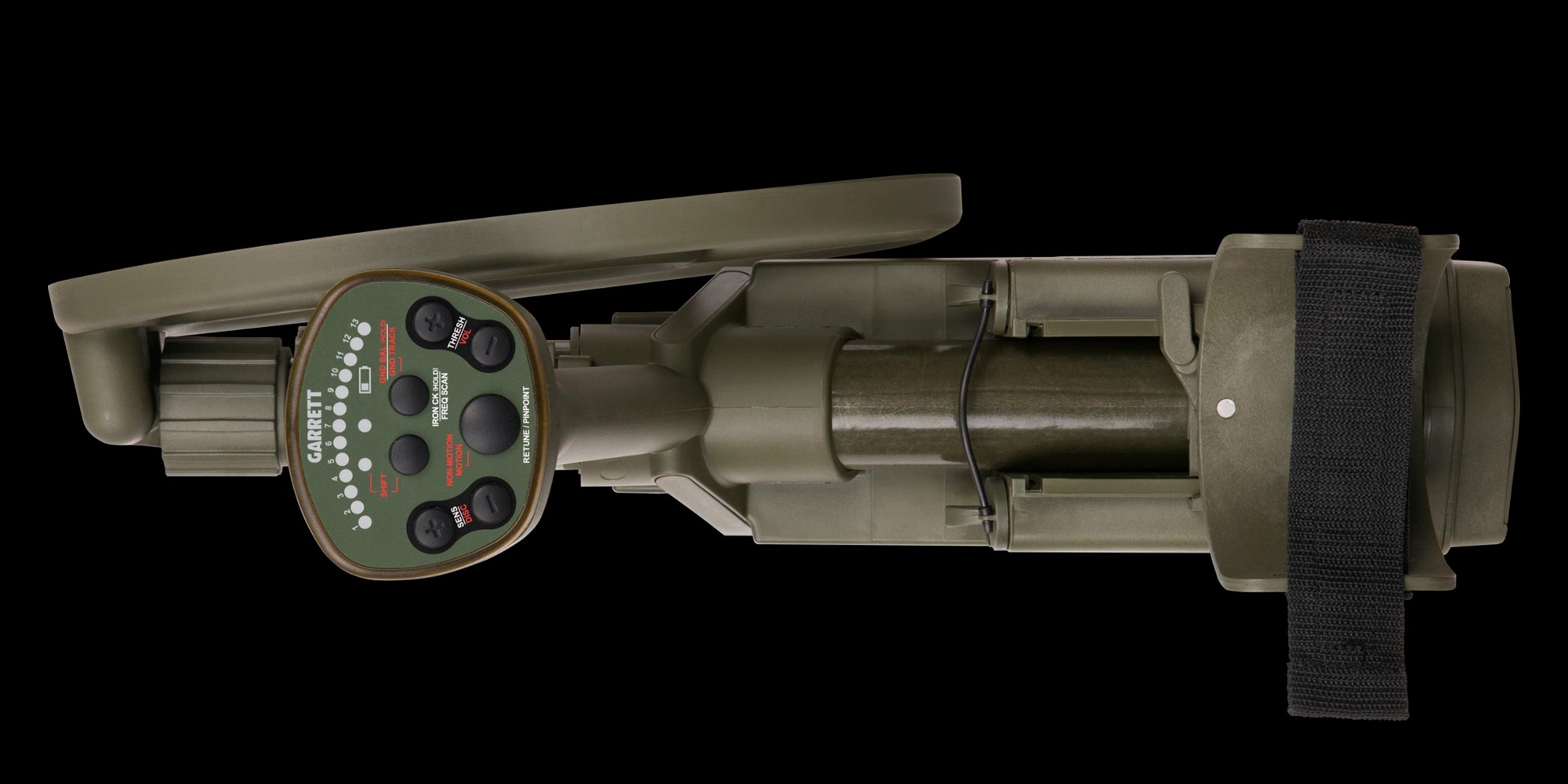

Fully Collapsible: the ATX can be operated with its stem fully extended, fully collapsed, or anywhere in between.

Rugged military-spec design

Adjustable armrest

Garrett ATX Metal Detector

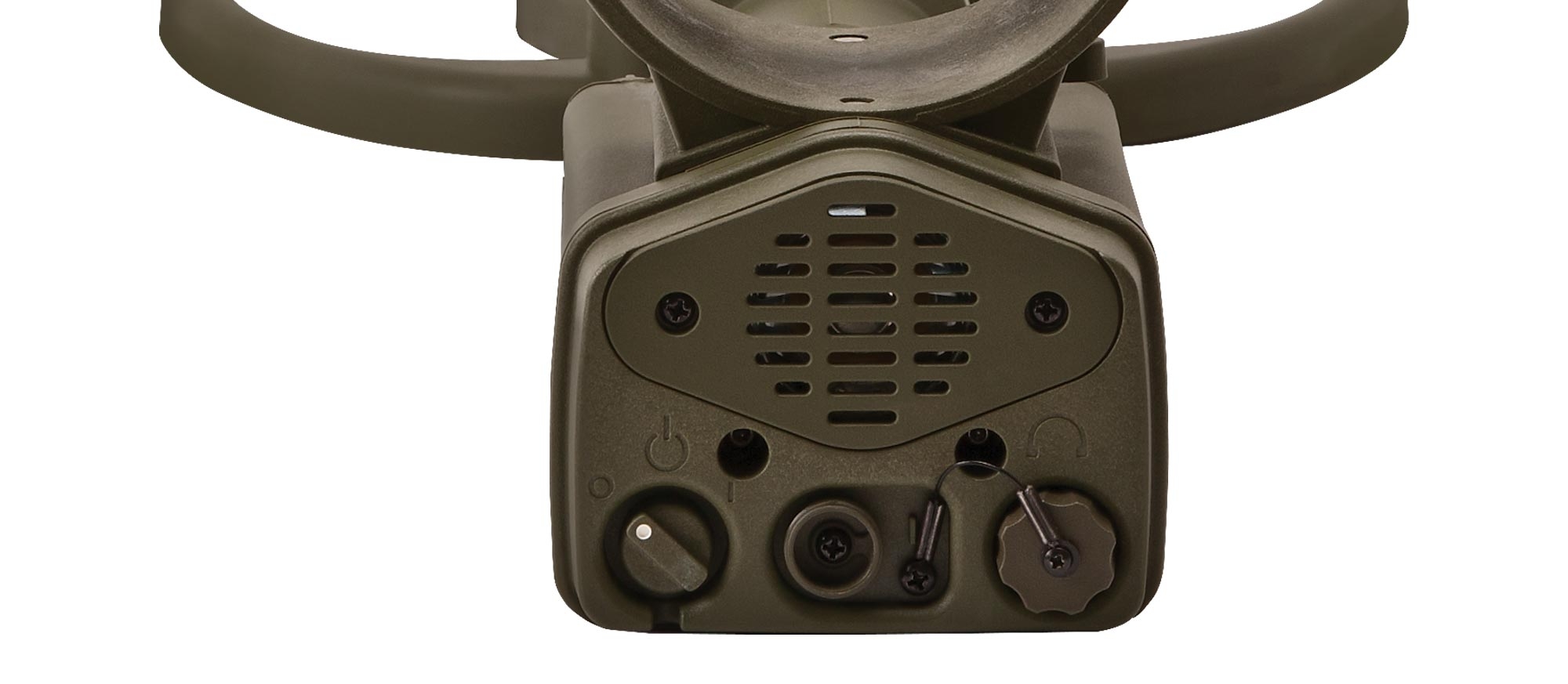

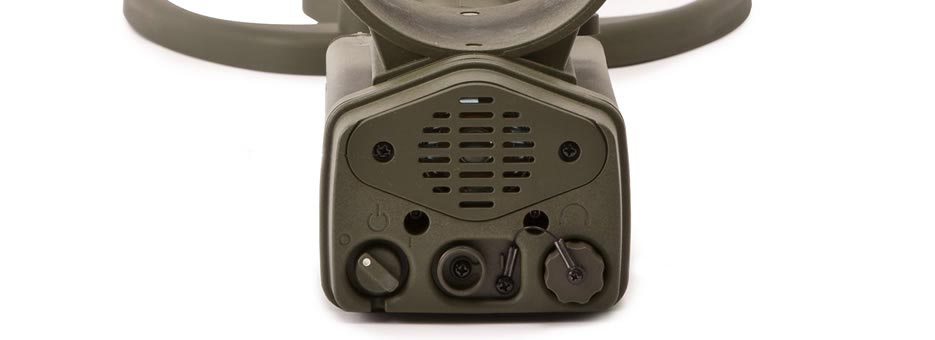

External Speaker: built in for option to search without headphones.

HIGH-END ALL-TERRAIN PULSE PERFORMANCE

Highly sensitive on tiny gold. Extends depth in the most extreme mineralized soils.

MAXIMUM DETECTION ON ALL TARGETS AT THE SAME TIME

No need to switch modes to enhance detection of one target while degrading another.

ADVANCED GROUND BALANCE

Wide range to ground balance from saltwater to heavily mineralized ground (ironstone) without switching to special modes.

ATX ADDITIONAL FEATURES

Garrett AT Gold Audio

TRUE ALL METAL MODE

Detects all types of metal and provides the greatest possible detection depth and sensitivity.

Garrett ATX Metal Detector

ALL TERRAIN

Designed for use in wet, humid and dusty environments. Can be submerged in water to 10-foot (3m) depth.

Garrett ATX Metal Detector

IRON CHECK

Allows user to audibly identify iron targets when using a DD searchcoil.

Garrett AT Gold

ADJUSTABLE THRESHOLD

User can manually adjust the audio threshold (the constant background “hum”) to better hear targets.

Garrett CSI Pro

FAST TRACK GROUND BALANCE

Automatic feature that allows the user to quickly ground balance the detector in mineralized soil conditions.

Garrett ATX Metal Detector

GROUND TRACK (AUTOMATIC)

Detector continually measures ground mineralization and automatically adjusts itself for optimum performance. (Four track speeds on ATX.)

Garrett CSI Pro

ELECTRONIC PINPOINTING

This non-motion All-Metal Mode function is used to precisely locate a detected target’s position.

GARRETT PI DETECTORS SPECS COMPARISON


Overview	Garrett’s highest performance PI technology. Provides maximum sensitivity on all targets all the time. Easy access to all controls with one hand. Includes advanced features to overcome the most extreme environmental conditions.	Proven PI technology with 22 Frequencies. Ideal for saltwater hunting and wreck diving use.
Detection Performance	Superior sensitivity on all targets, especially on small, low conductivity items (sub 0.1 gram nuggets, fine jewelry, etc.).	Good detection on all targets from jewelry to coins to nuggets.
Ground Balance Capabilities	YES. Fast Track	NO
Balances to Saltwater	YES. Inherently immuneto most saltwater; use Ground Balance if needed.	NO. Inherently immune to most saltwater; use Discrim if necessary.
FastTrack Ground Balance	YES	NO
Continuous GroundTrack	4 settings: Off, Slow, Med, Fast	NO
User Controls/Functions	LED indicators show signal strength, current settings. Easy push-button control to alter Audio Threshold (25 settings), Volume, Sensitivity (13 settings), Pinpoint, etc.	Control knobs to alter Audio Threshold, Discrimination. Sensitivity/Depth adjustment is fixed.
EMI Control	Excellent immunity in more severe EMI environments. Has push-button automatic frequency scan and selection to provide quietest operation.	Good immunity in moderate EMI environments. No frequency adjustment available.
Discrimination/Delay	25 settings, via push-button control	Adjustable via control knob
Iron Audio	YES (Requires DD coil)	NO
Search Modes	Motion and Non-Motion Modes, plus Pinpoint	Two Trash Elim Modes (both Motion Modes)
Submersion Depth	10 feet (3m)	200 feet (65m)
Standard Searchcoil	10" x 12" DD	8" Mono
Length (Adjustable)	20" to 68" (.51m - 1.72m)	28" to 52" (.71m - 1.32m)
Power	8 AA alkaline, plus 8 AA rechargeables and charger	8 AA alkaline
Warranty	3 Year, Limited Parts/Labor	3 Year, Limited Parts/Labor
Headphones Included	Standard land-use	Submersible
Total Weight	6.9 lbs (3.13 kgs)	5.1 lbs (2.3 kgs) stem-mounted
