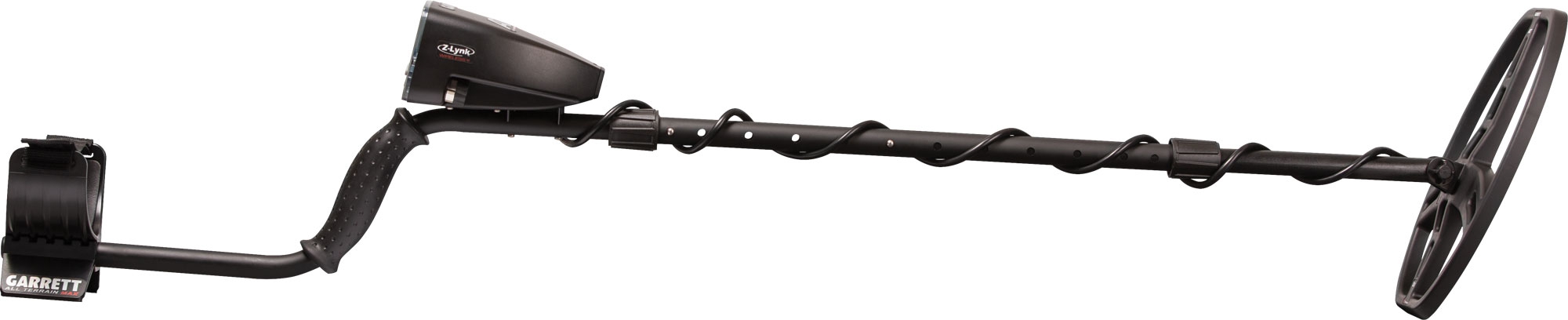

Garrett AT MAX

Waterproof Metal Detector

MAXIMUM DETECTION. POWERFUL, WIRELESS, ALL TERRAIN PERFORMANCE.

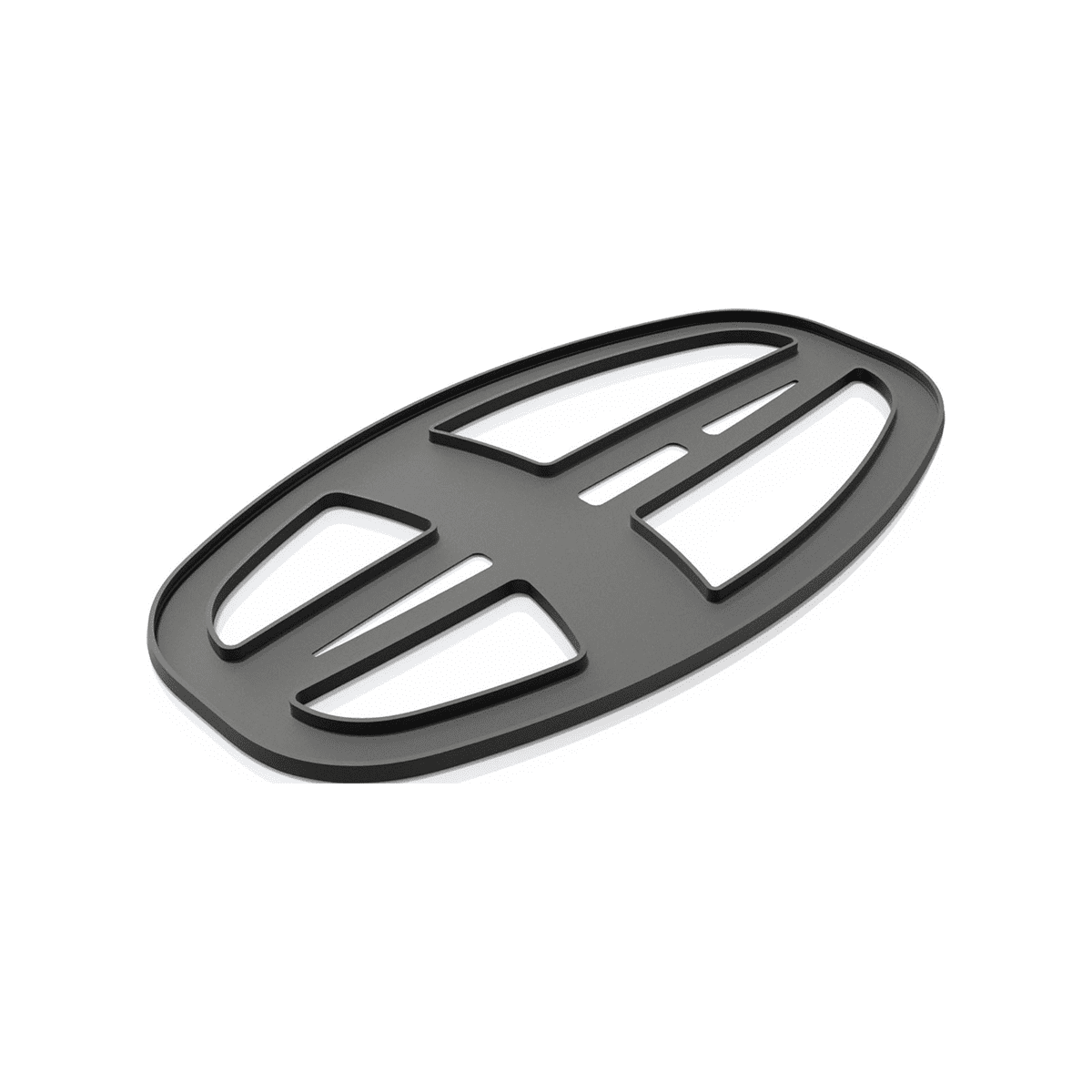

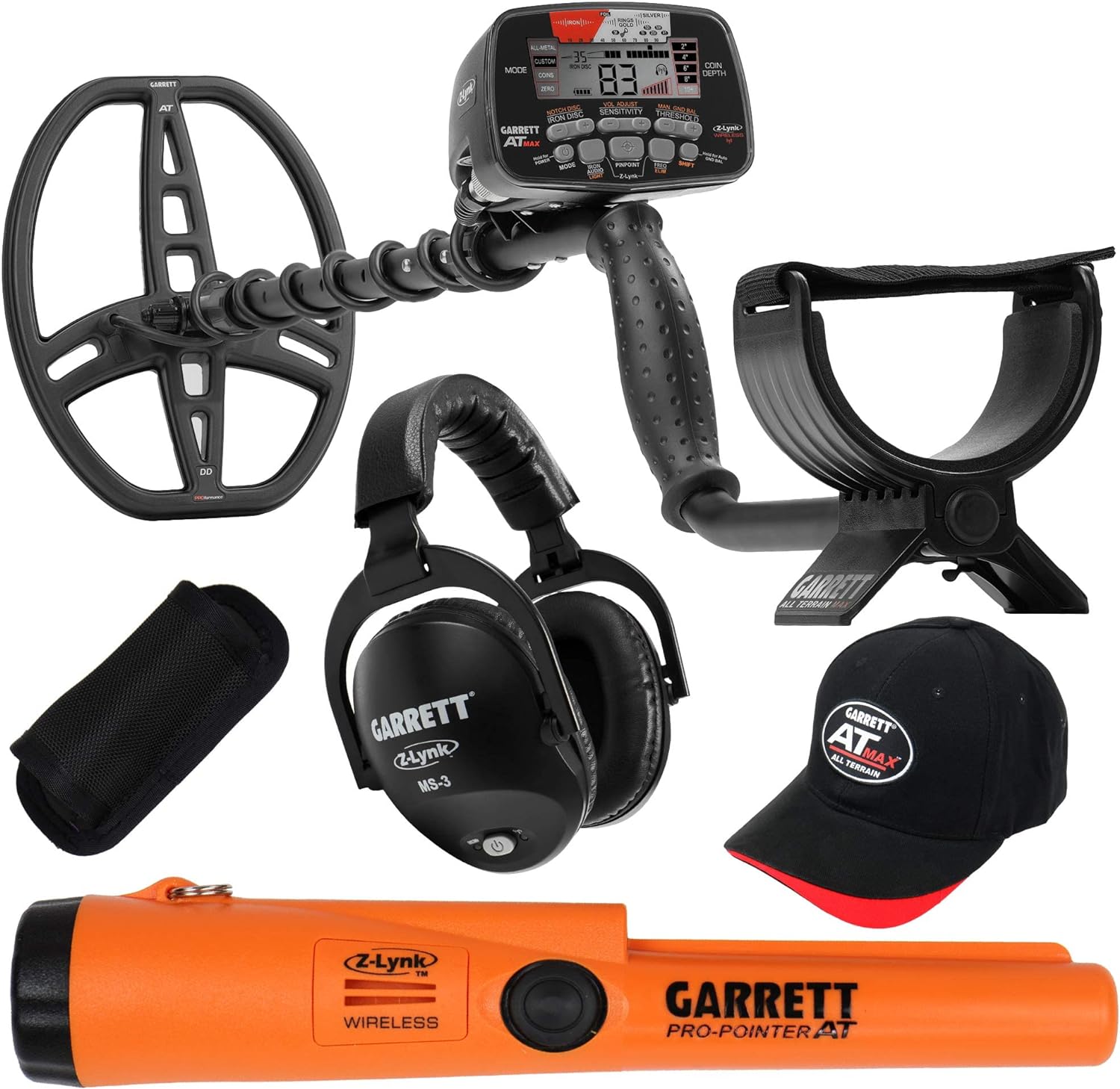

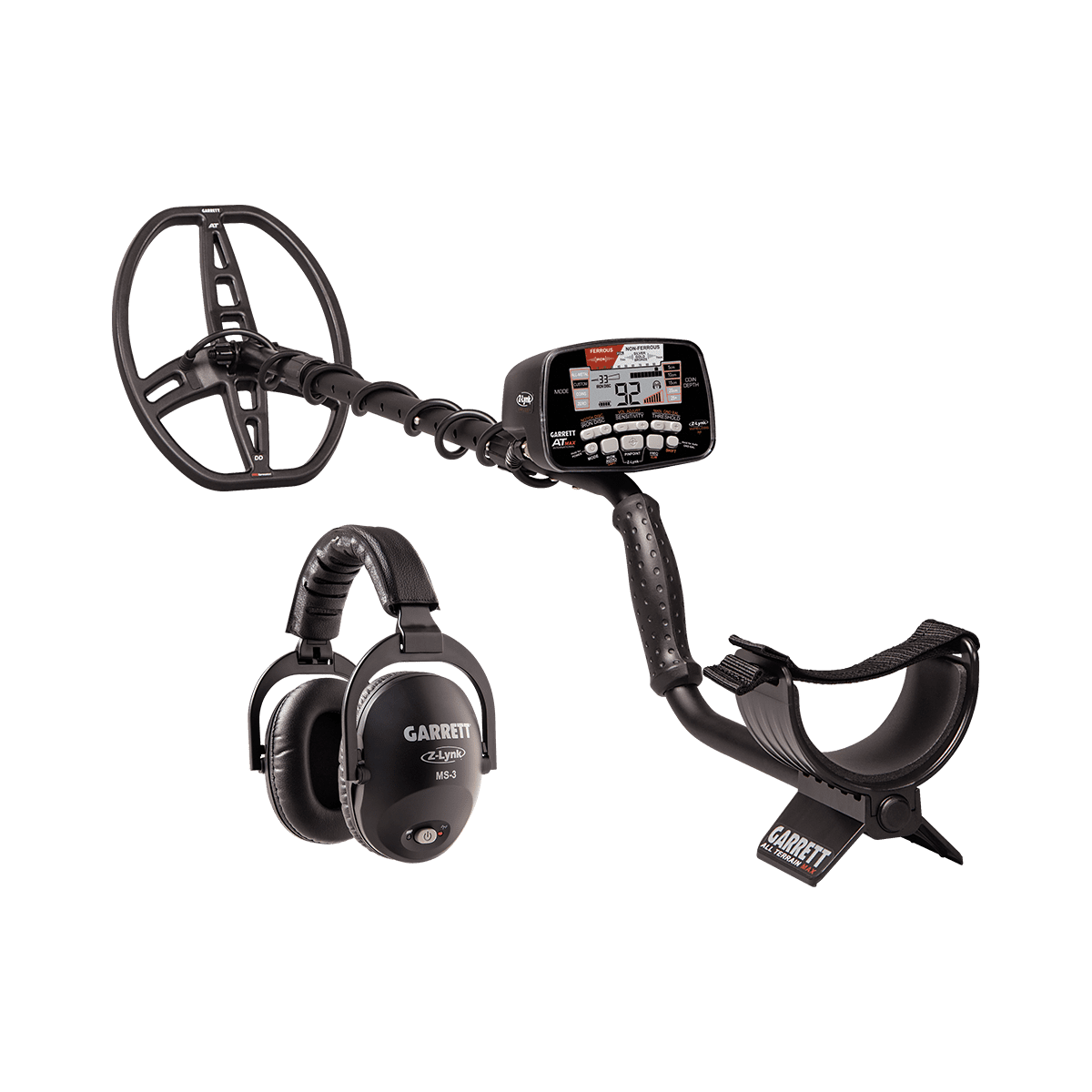

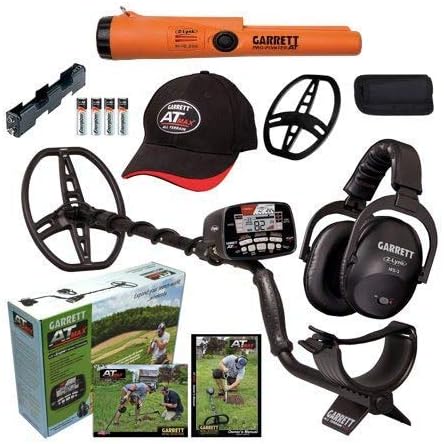

PN: 1142060	AT Max Metal Detector with 8.5” x 11” PROformance^™ DD submersible searchcoil, Garrett MS-3 Z-Lynk wireless headphones and coil cover

ALL TERRAIN.

Designed for dusty, humid or wet environments.

Fully waterproof to 10 feet

Garrett Submersible Headphones are sold separately.

GO WHERE OTHERS FEAR TO FOLLOW.

GO WIRELESS
WITH Z-LYNK SPEED!

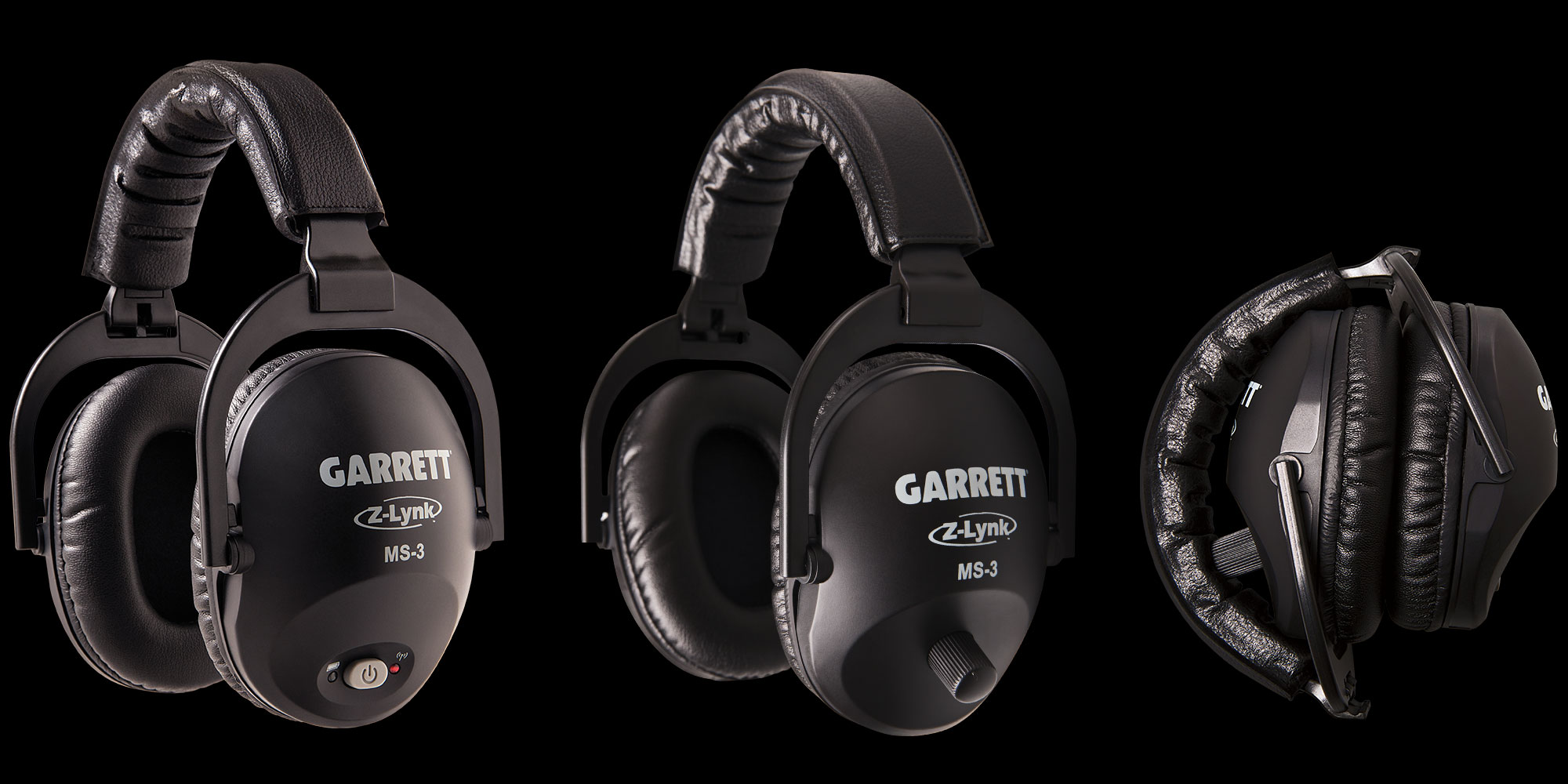

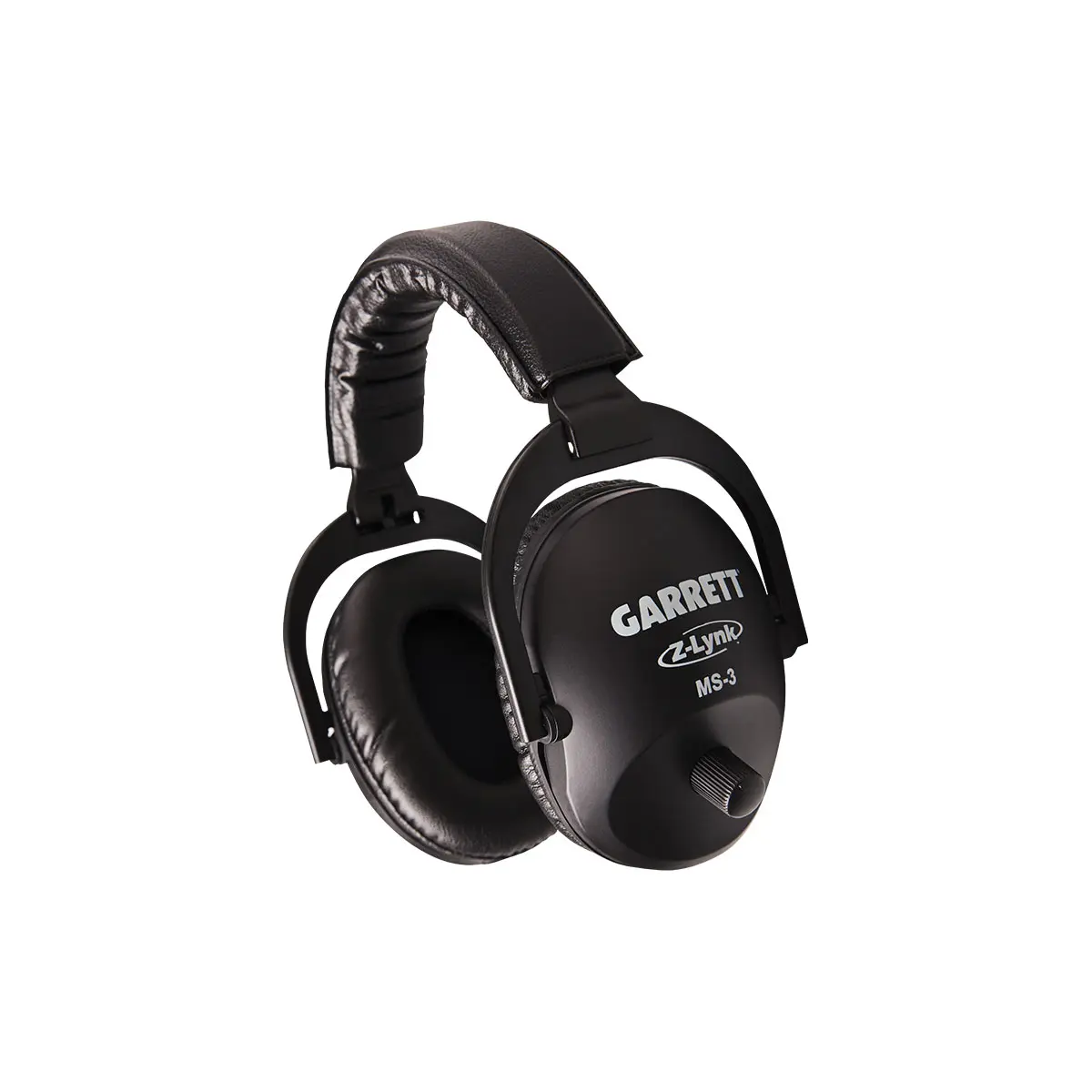

Sync to Garrett’s MS-3 Z-Lynk wireless headphones that are included with the AT MAX^™.

Garrett Pro-Pointer AT Z-Lynk (sold separately) can also sync with Garrett MS-3 Z-Lynk wireless headphones.

Enjoy the treasure tones and alarms only you can hear.

SUPER FAST Z-LYNK^™ WIRELESS TECHNOLOGY.

Garrett AT MAX z-link

Near-zero delay (17-milliseconds) from your detector to your headphones.

Which means you will be able to quickly and accurately pinpoint with Garrett MS-3 Z-Lynk wireless headphones.

MAXIMUM DETECTION DEPTH

Enhanced electronics, a 13.6 kHz operating frequency, and eight Sensitivity/Depth adjustments allow you to detect targets deeper than other Garrett AT detectors.

AUTOMATED GROUND BALANCE WINDOW^™

GARRETT EXCLUSIVE

This Garrett exclusive feature can simultaneously "spread" the ground balance setting to a range of values to reduce ground response in severely mineralized areas. Automatic and manually adjustable ground balance options also available.

HUNT DAY AND NIGHT

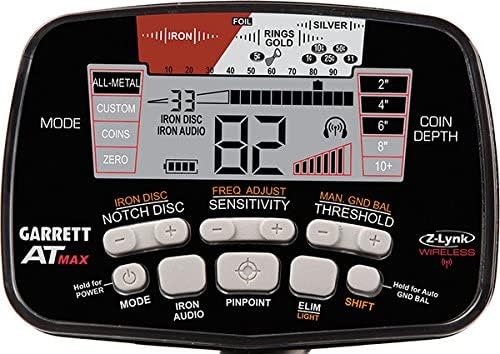

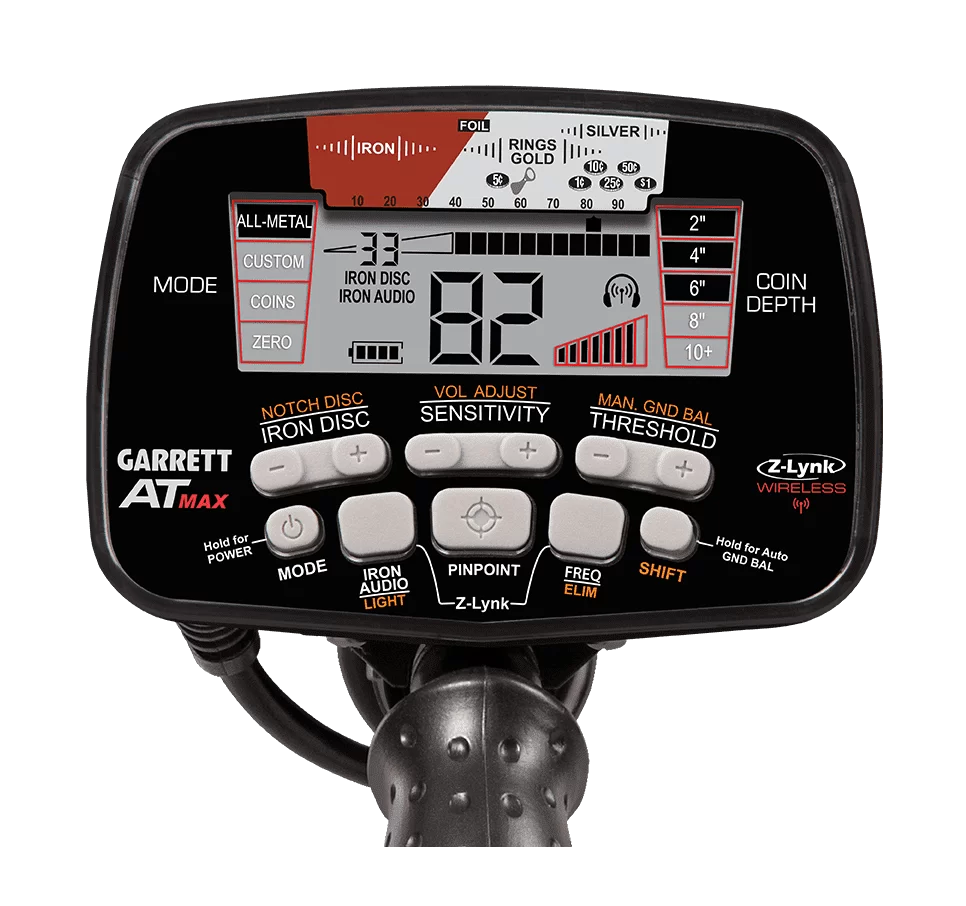

The AT MAX^™ includes a backlit display feature, allowing you to continue hunting in low-light conditions.

Click the “Iron Audio/Light” button on the unit to see it in action!

AT MAX^™ IRON AUDIO

HEAR THE IRON TRASH BEFORE YOU DIG IT!

Iron Audio allows you to hear discriminated iron (normally silenced) to avoid digging undesired flat iron targets such as bottle caps or washers.

NOTE: To use the Iron Audio feature, some degree of Iron Discrimination must be set. In this demonstration, the Iron Discrim setting is at 35. Without Iron Audio, both the bottle cap and silver coin sound like good targets. With the Iron Audio, the bottle cap response includes iron “grunts” to indicate this might be a trash target.

AT MAX^™ ADDITIONAL FEATURES

TRUE ALL METAL MODE

Detects all types of metal and provides the greatest possible detection depth and sensitivity.

ALL METAL IRON AUDIO^™

Garrett exclusive feature that audibly identifies discriminated iron while operating in a True All-Metal Mode (also available in the three Discrim Modes).

DIGITAL TARGET ID

Numeric identification scale from 0 to 99. Identifies a target metal’s conductivity.

ADJUSTABLE THRESHOLD

User can manually adjust the audio threshold (the constant background “hum”) to better hear targets.

AT TECH SPECS COMPARISON


Z-Lynk^™ Wireless Technology	Yes (With MS-3 Z-Lynk headphones included)	No
Backlight	✔	No
Iron Discrimination Segments	44	40
True All-Metal Mode	✔	No
Volume Adjustment	✔	No
Notch Discrimination	Adjustable	Adjustable
Search Modes	4, all Pro Audio	6 (3 Standard, 3 Pro)
Proportional Audio	✔	✔
Standard Binary Audio	No	✔
Fast Recovery Speed	✔	✔
Sensitivity/ Depth Adjustments	8	8
Iron Audio^™ (Disc. Modes)	✔	✔
Iron Audio^™ (All Metal Mode)	✔	No
Threshold Adjustment	✔	No
Digital Target ID	✔	✔
Ground Balance, Auto/Manual	✔	✔
Ground Balance Window^™	✔ (Automatic)	No
Pinpoint	✔	✔
Waterproof	✔ (to 10 feet / 3m)	✔ (to 10 feet / 3m)
Freshwater use	✔	✔
Saltwater use	✔	✔
Frequency	13.6 kHz, adjustable	15 kHz, adjustable
Audio Tone ID Levels	3	3
Target Depth Indicator	✔	✔

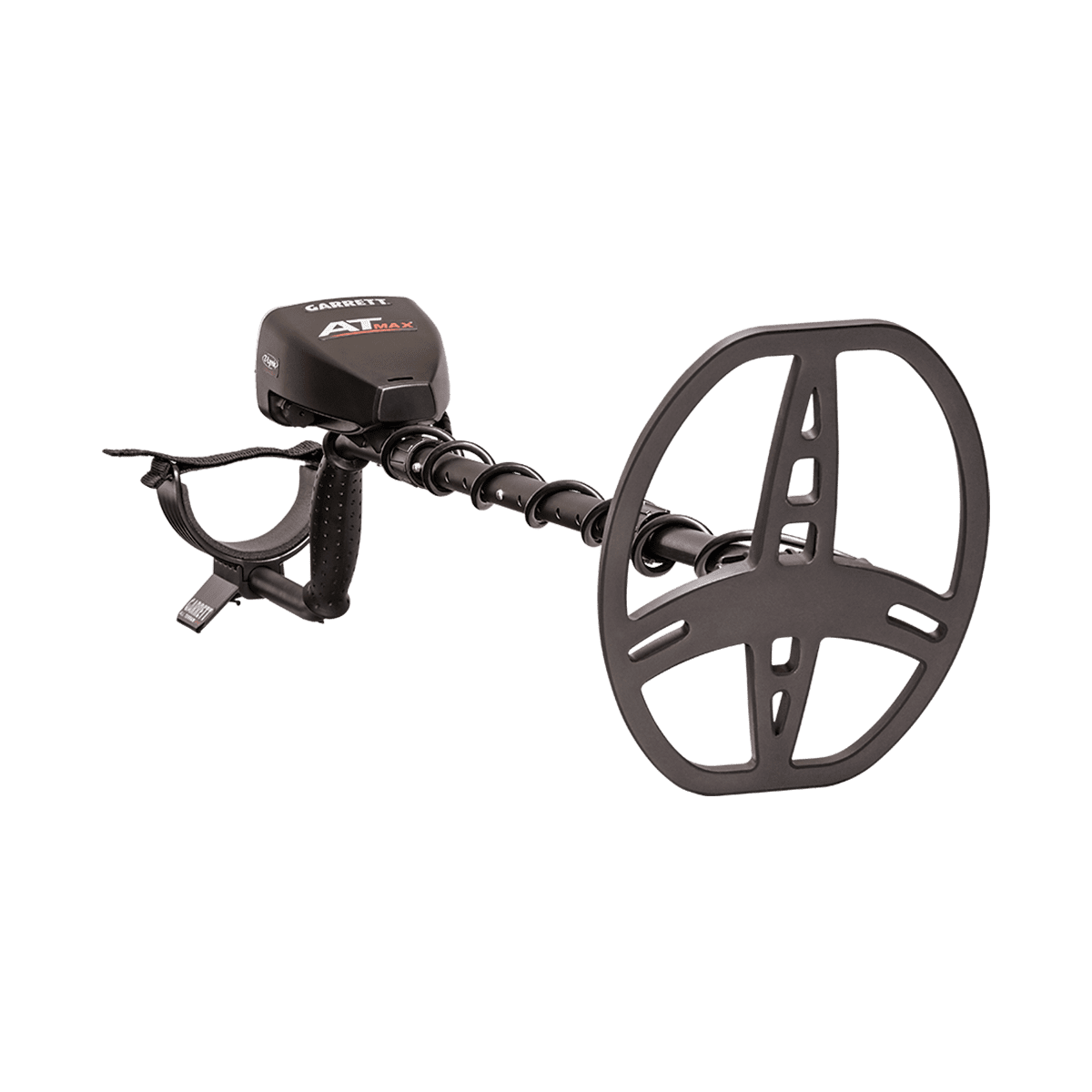

Standard Searchcoil	8.5” x 11” DD PROformance^™	8.5” x 11” DD PROformance^™
Length (Adjustable)	43" to 56" (1.09m - 1.4m)	43" to 56" (1.09m - 1.4m)
Power	4 AA (included)	4 AA (included)
Battery Condition Indicator	✔	✔
Warranty	3 Years	3 Years
Total Weight	3.03 lbs (1.4 kgs)	3.03 lbs (1.4 kgs)
