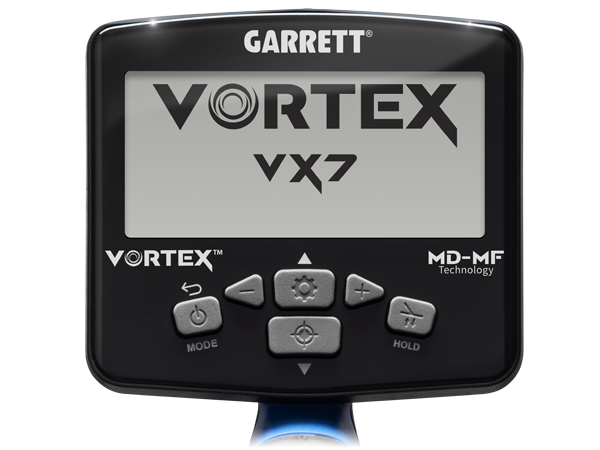

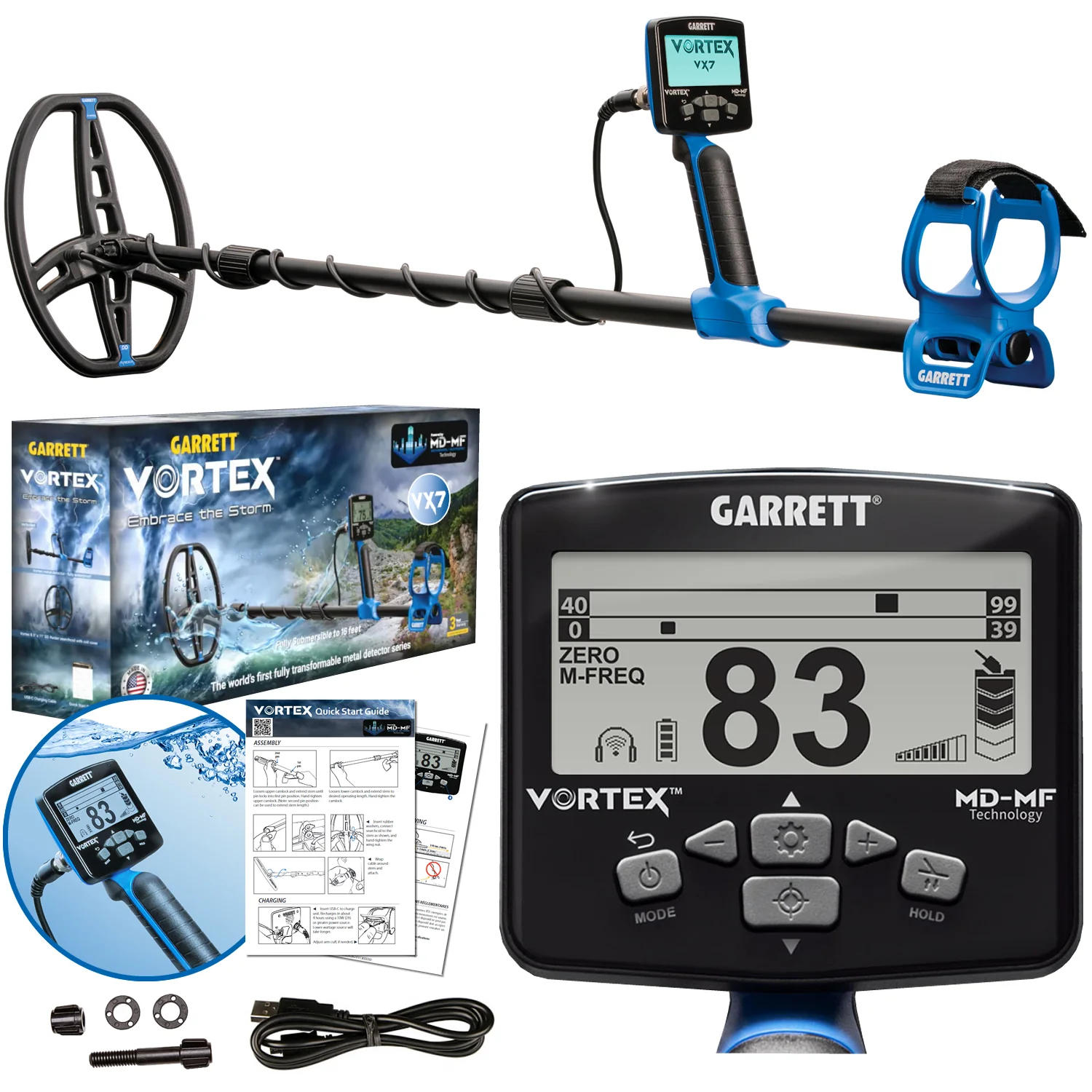

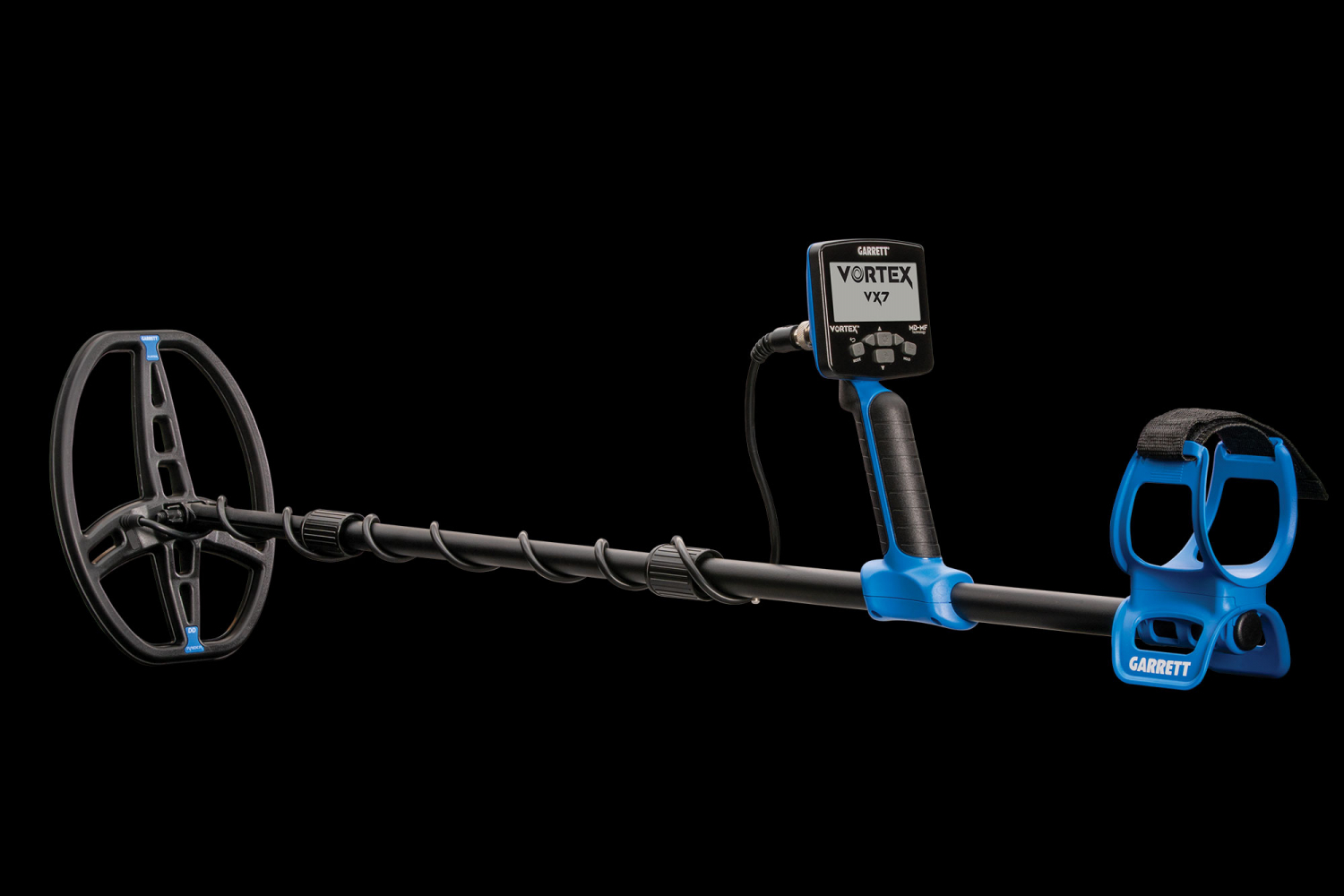

Garrett Vortex VX7

VX7

MORE POWER THAN VX5

More advanced. Includes more frequency and mode options than VX5, including the powerful Multi-Frequency Salt mode for wet sand and saltwater surf use. Two-tiered MD-MF Target ID display (with separate ferrous and non-ferrous target scales). Additional audio tones plus adjustable Recovery Speed.

INCLUDES BEACH MODE AND MULTI-FREQUENCY SALT OPERATION!

Utilize the power of MD-MF Technology and Multi-Salt operation. Smooth operation and deep Target ID accuracy along wet salt beaches and in the surf. Fully submersible to 16 feet.

RECOVERY SPEED CONTROL

Select from Standard or Fast speed. Increased recovery/reactivity speed helps you more clearly distinguish adjacent targets.

A great benefit for competition hunts and for hunt sites filled with metallic trash that might otherwise mask good targets.

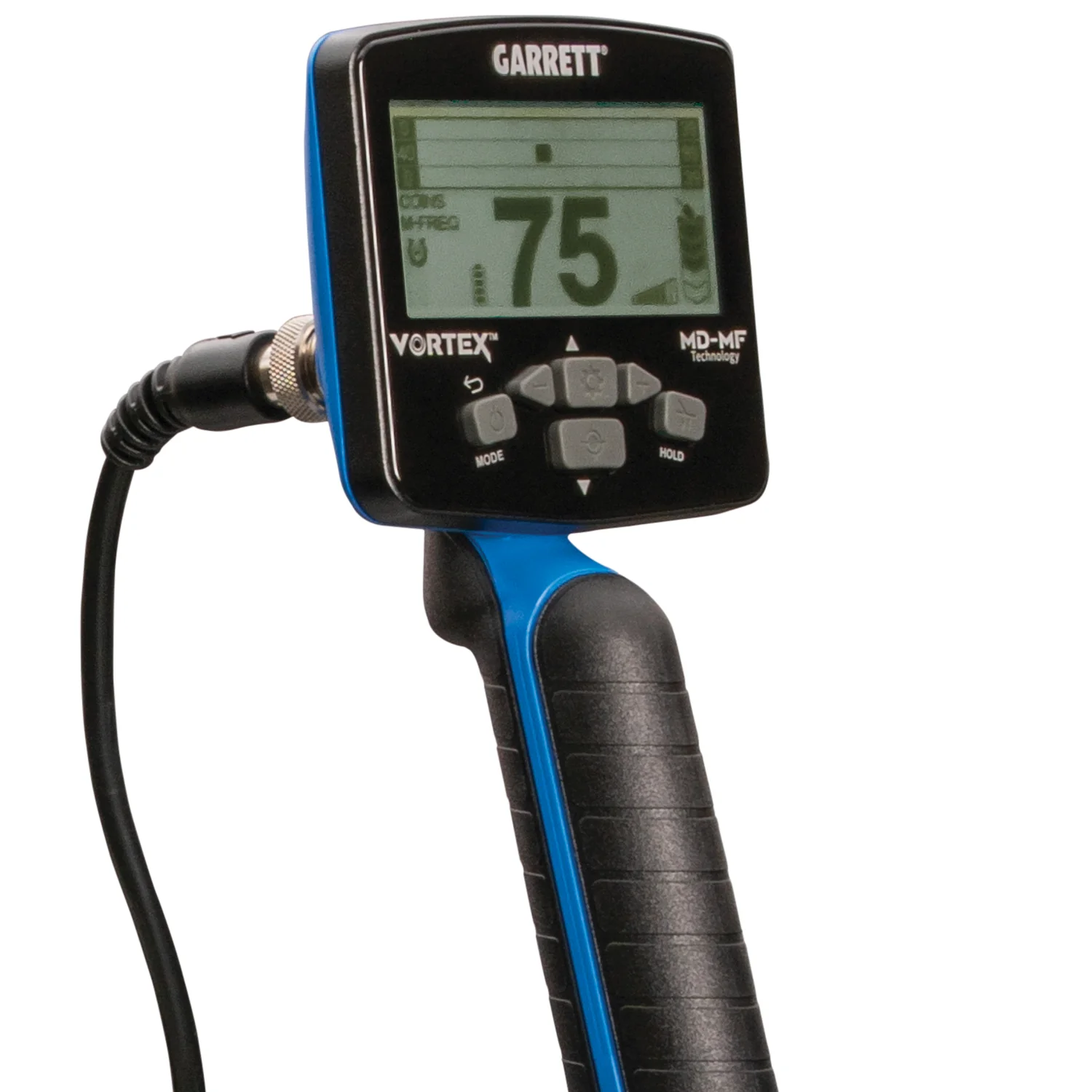

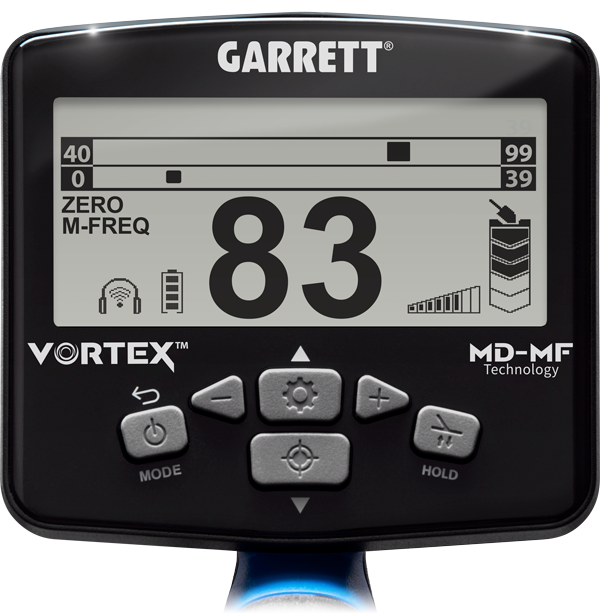

DUAL TARGET ID SCALE

When operating in Multi-Frequency, the VX7’s Target ID system displays both a ferrous target scale and a non-ferrous scale. Complex

targets may indicate on both scales simultaneously. More target information . . . so you can make better dig decisions!

WIRELESS READY!

Built-in Z-Lynk wireless technology means you can search without cords attached to your detector.

Garrett MS-3 Z-Lynk headphones and other Z-Lynk accessories sold separately

IRON VOLUME
CONTROL WHAT YOU HEAR

Iron Volume allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal

level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired

items. Eight adjustment levels.

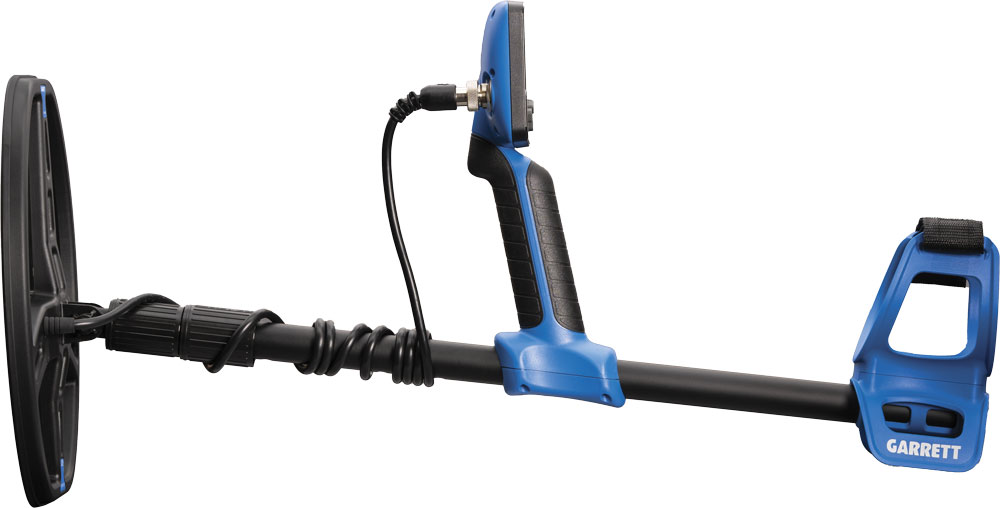

LIGHTWEIGHT AND COLLAPSIBLE!

Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm)

Weight: 3 lbs. (1.38 kg) with coil cover installed.

MD-MF TECHNOLOGY EXPLAINED

The world’s first fully upgradeable waterproof detector series! As your skills increase, you can opt to convert your VX-5 to a VX-7 or VX-9 model

with software updates. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power!

FOUR (4) FREQUENCY OPTIONS

Choose from two powerful single frequencies (5 kHz or 13 kHz) or search with one of two Vortex simultaneous Multi-Frequency options (the traditional Multi or Multi-Frequency Salt for saltwater beach use).

SEARCH MODE VERSATILITY

Choose from 5 options:

Zero Discrimination
Beach Mode
Standard Mode (ideal for hunting relics, jewelry, and most international coins)
US Coins Mode
Custom Mode

SUBMERSIBLE TO 16 FEET (5 METERS)

Search streams, lakes, and the ocean coast with your Vortex.

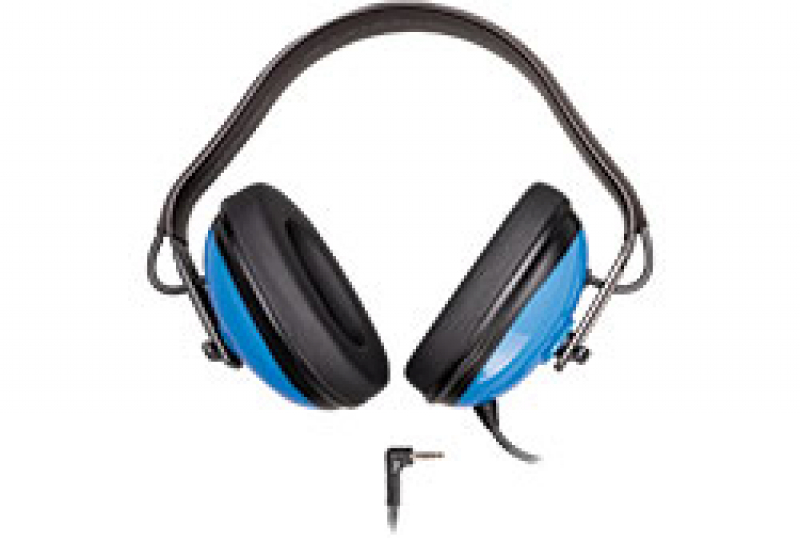

(Submersible headphones available from Garrett)

SEARCH WITH CONFIDENCE

Fast Target Recovery Speed (2 settings)
5-Tone Audible Target ID
Excellent Detection Depth and Target ID accuracy
Backlit LCD for night operation
Rechargeable Battery

Built-in lithium ion battery provides approximately 15 hours of search time per charge.

EASY-ACCESS POWERFUL MENU OPTIONS

Hi-Resolution Ground Balance
175 points of ground balance resolution, ranging from ferrous ground to saltwater.

Volume Control
For both the built-in speaker and headphones.

Eight Sensitivity/Depth Adjustments

Iron Audio
Garrett’s unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers.

Five Search Modes + Pinpoint

Frequency Shift
Use to reduce noise or electrical interference (EMI)

Backlight
Illuminate your LCD screen to see target information at night.

World’s first fully transformable detector series!

As your skills increase, transform your VX7 into a VX9.

VORTEX SERIES COMPARISON CHART

	Vortex VX5	Vortex VX7	Vortex VX9
Target ID Scale(s)	One 0-99 Target ID	2-tier Target ID Scales	3-tier Target ID Scales
Frequencies	Two: Multi-Frequency (Multi) and 13 kHz	Four: Multi, 5 kHz, 13 kHz, Multi Salt	Seven: Multi, Multi-Salt, 5 kHz, 9 kHz, 13 kHz, 18 kHz, 25 kHz
Search Modes Included	Four: Zero, Standard, US Coins, Custom	Five: Zero, Standard, US Coins, Beach, Custom	Seven: Zero, Standard, US Coins, Thin Coins, Custom, Beach, Fast
Notch Discrimination	Yes	Yes	Yes
High-Resolution Iron Discrimination	Yes	Yes	Yes
Variable Recovery Speed	No	Yes: 2 settings	Yes: 3 settings
Submersible to	16 feet (5m)	16 feet (5m)	16 feet (5m)
Z-Lynk Wireless enabled	No	Yes	Yes
Increased sensitivity/depth	No	Yes	Yes
Number of ID Tones	3	5	5
Iron Volume	No	Yes	Yes
Pinpoint Mode	Yes	Yes	Yes
Iron Audio	Yes	Yes	Yes
Multi-Dimensional Multi-Freq.	Yes	Yes	Yes
Ground Balance	Yes	Yes	Yes
Frequency Shift (EMI reduction)	Yes	Yes	Yes
Volume control	Yes	Yes	Yes
LCD Backlight	Yes	Yes	Yes
Detector Length	24.75" to 56.75"	24.75" to 56.75"	24.75" to 56.75"
Weight	2.9 lbs. without coil cover; 3.05 lbs. with cover installed	2.9 lbs. without coil cover; 3.05 lbs. with cover installed	2.9 lbs. without coil cover; 3.05 lbs. with cover installed

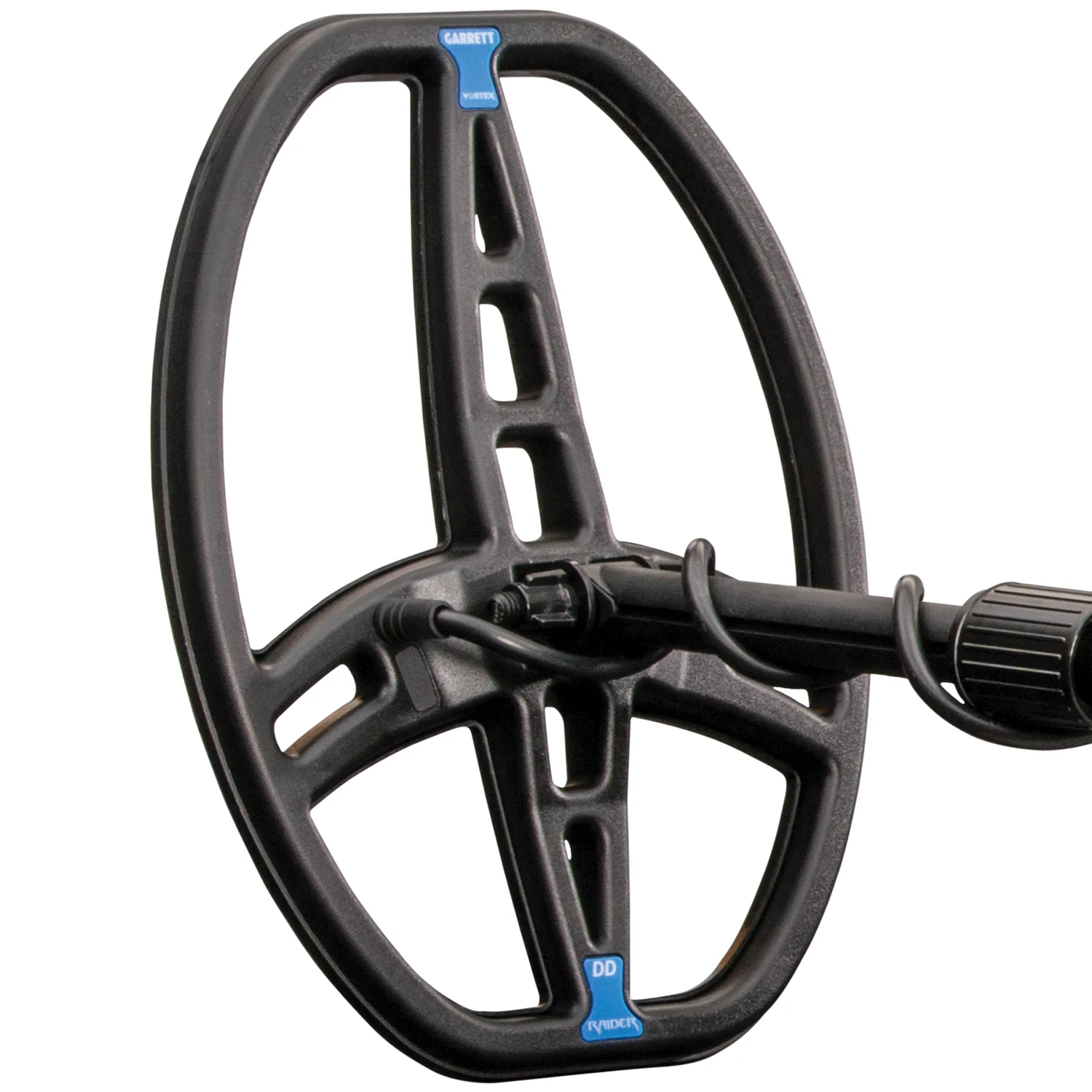

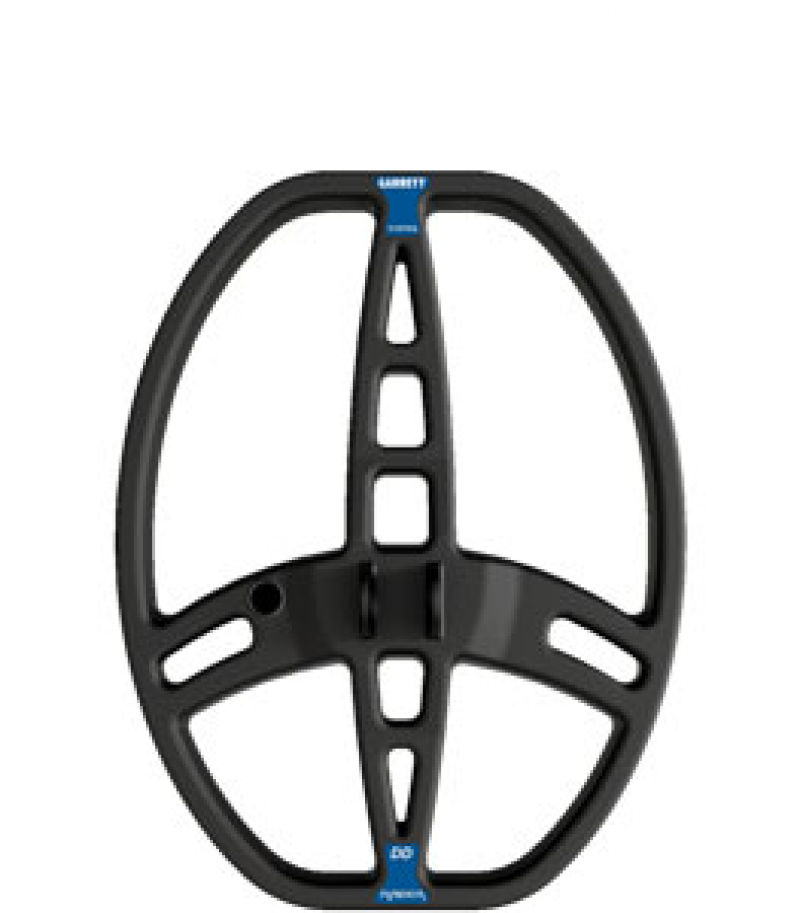

Standard Coil Included	8.5" x 11" DD Raider	8.5" x 11" DD Raider	8.5" x 11" DD Raider

Updateable / Upgradeable	Yes	Yes	Yes
