USA Dominator Pro
Technical Specifications USA PLUS SERIES DOMINATOR

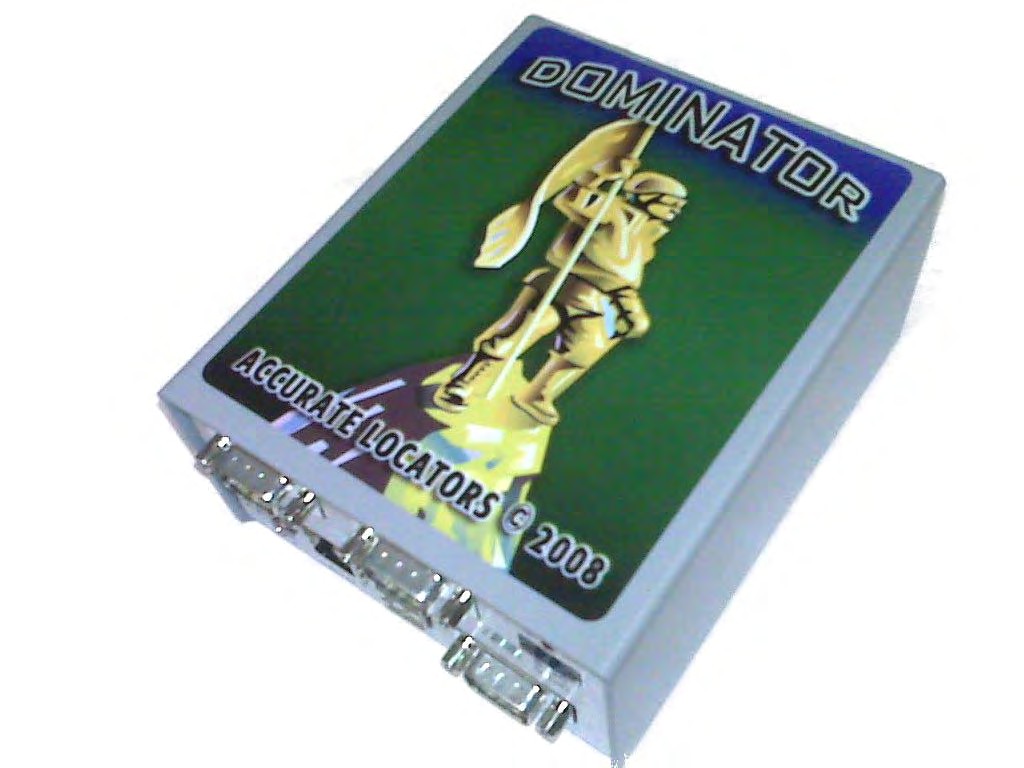

Control Unit
Control Unit Voltage 8-30 VDC
Current Consumption unknown
RAM 32MB SDRAM
Operating Temperature -40°F - 158°F
Data Transfer Rate 100 MB/S
Battery Run Time 8 HOURS
Sensor Current Consumption max 2.50 mA ±0.50 mA
Control Unit H x W x L 2-1/2” x 4 3/8” x 5 3/8”
Control Unit Weight 1.75 lbs
Laptop Computer min specs*
AMD Athlon XP-M 1000+/ Pentium 4 Equivalent
256 MB DDR (minimum)
20GB Hard Drive (minimum)
10/100 NIC Ethernet Port

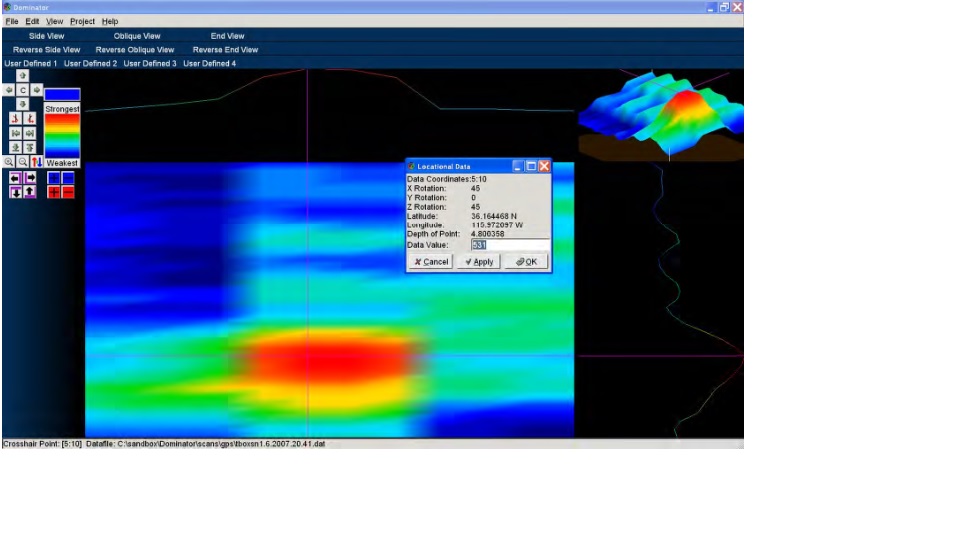

Geo Surveyor Software
Supported Operating Systems
Windows XP, Vista, or 2000 Platform and Windows 7 compatible System Requirements
1000 MHz+ PENTIUM CPU OR GREATER
1 GB RAM
16 MB Video Card
1 Gig Hard Drive Space
*Laptop makes and model specifications may change without notice.*

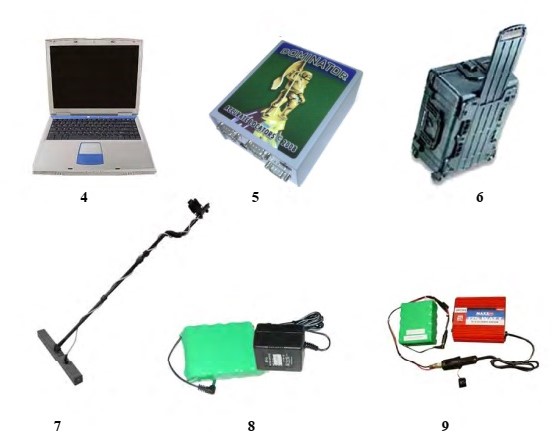

Packing Contents
(Standard and Optional Accessories Shown)
1. Field Pack (front and rear pack)
2. Battery in Pack
3. DOMINATOR Control Unit in Pack
4. Pre-Configured Laptop*
5. DOMINATOR Control Unit
6. Carrying Case**
7. DOMINATOR 20" 4 Sensor Antenna
8. x2 Control Unit Battery and x1 Charger***
9. Additional Laptop Power Supply (Optional)
10. Wiring Harness
11. Instruction Manual
12. Software Installation USB Thumb Drive/CD Rom
