Synchro Program for VIY® Ground Penetrating Radar Systems
Synchro is the primary data acquisition and processing software developed by Transient Technologies LLC for the VIY® Ground Penetrating Radar (GPR) product line. The software provides a complete environment for controlling VIY GPR systems, acquiring radar data in real time, visualizing radar profiles, and processing survey results using advanced filtering and interpretation tools.
Designed for professional geophysicists, engineers, utility surveyors, archaeologists, and researchers, Synchro combines an intuitive user interface with powerful processing capabilities to improve data quality and simplify field operations.
VIY3 software package allows to make all the settings of VIY5 and VIY3 GPR, to control of the measurement process, upload into a computer and store all GPR data in it, process and print the measured data. Also there is a possibility to import data from the VIY2 GPR.
Main features of Synchro3 program:
- User-friendly multiple-windows interface
- Available language interfaces - English, Italian, Ukrainian, Russian, Polish, Chinese, Spanish, Turkish and German
Key Features
- Complete control of VIY® Ground Penetrating Radar systems
- Real-time GPR data acquisition
- Live radar profile visualization
- Signal processing and filtering tools
- Automatic gain and signal enhancement
- Object and surface marker support

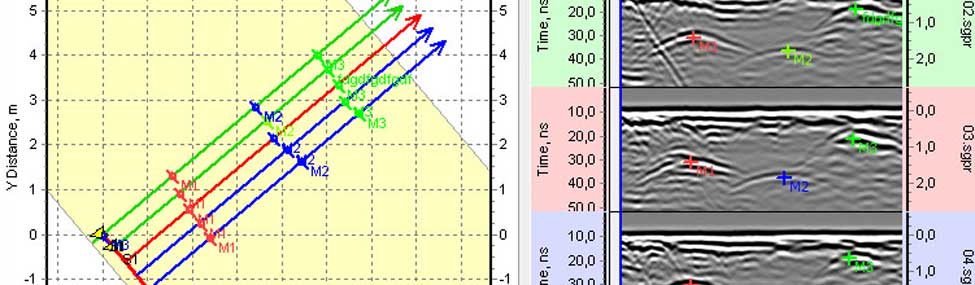

- Polyline interpretation tools
- High-speed data rendering
- Support for GPS integration

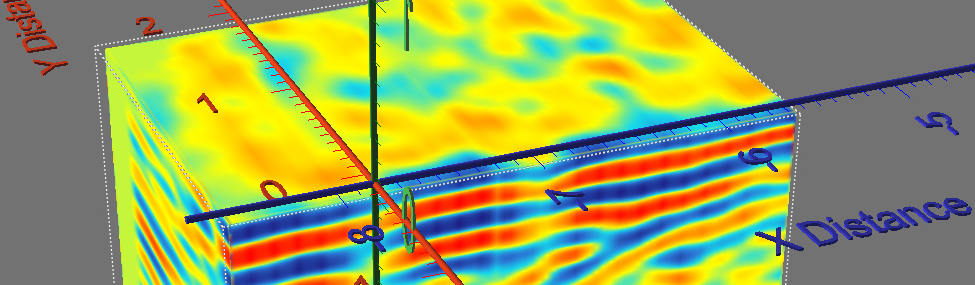

- 3D visualization compatibility
- Export compatibility with Planner software
- User-friendly Windows interface
- Continuous software updates and improvements
Main Functions
Synchro software is designed to perform the following tasks:
- Control VIY® GPR hardware
- Configure survey parameters
- Display radar profiles during scanning
- Process and filter GPR data
- Improve signal-to-noise ratio
- Save and manage survey projects

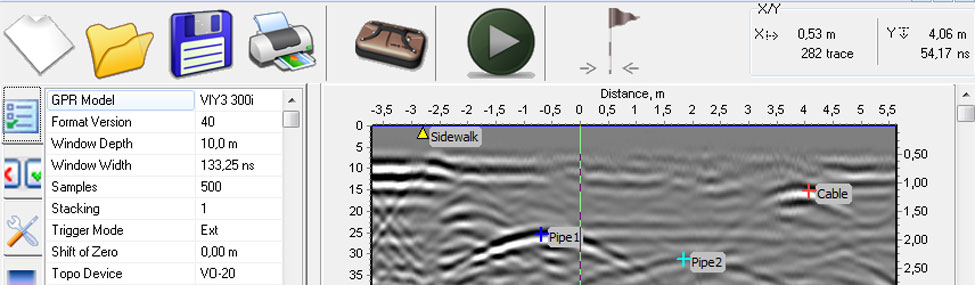

- Add, edit, and manage survey markers
- Prepare collected data for further interpretation in Planner software
Advanced Processing Tools

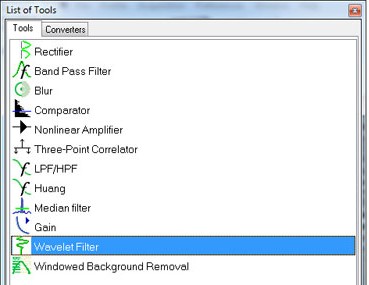

Synchro includes a comprehensive collection of processing functions to enhance radar data quality, including:
- Background removal
- Time-zero correction
- Signal gain adjustment
- Digital filtering
- Trace stacking
- Noise reduction
- Signal normalization
- Profile enhancement
- Marker management
- Real-time processing during data acquisition
System Compatibility
Synchro is designed to operate with the complete range of VIY® Ground Penetrating Radar systems, including:
- VIY5-1500
- VIY5-900
- VIY5-600
- VIY5-300
- VIY5-125
- VIY5-070
The software runs on Microsoft Windows computers and integrates directly with VIY® GPR hardware through USB or Wi-Fi connections, depending on the radar model.

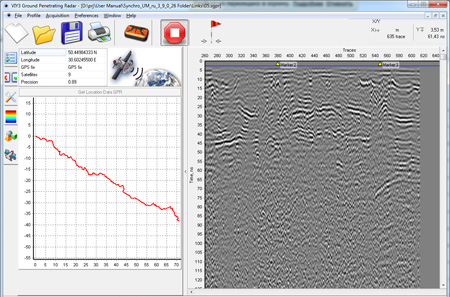

- GPS can be optionally used together with GPR
- Full support of languages with 2-bit coding
- Results of measurement can be displayed as a separate trace (A-scan) or GPR profile (B-scan)
- All antennas are equipped with built-in inclinometers
- Automatic topographic correction
- Safe way to store the GPR data
- Original GPR data are kept unchangeable during data processing
- Export GPR profiles data to BMP, text and SEG-Y

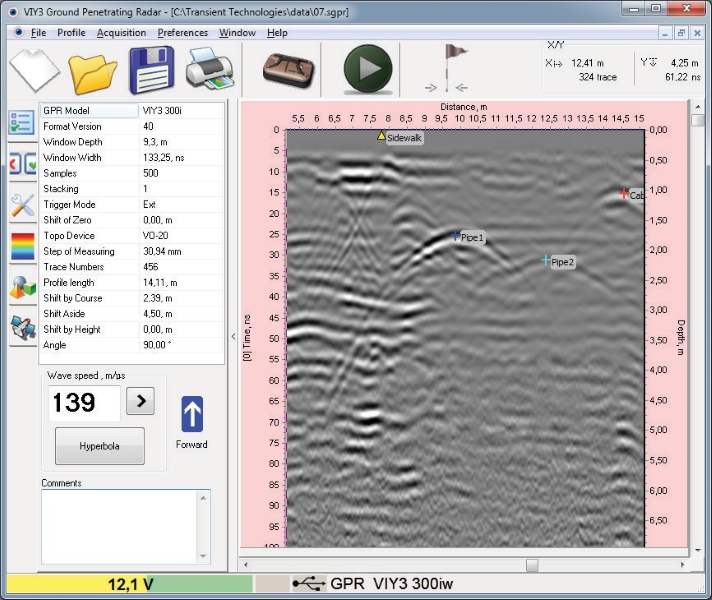

- 'Hyperbola' tool for adjustment of the wave speed in the medium

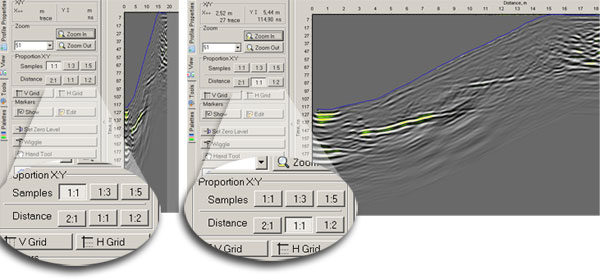

- Handy scaling with interpolation

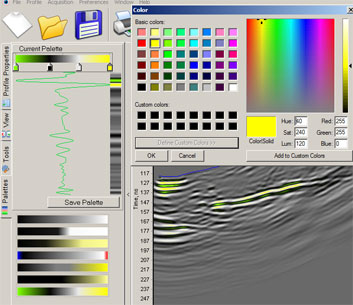

- Very flexible GPR profile graphic palette adjustment
- Automatic recognition of connected antenna
