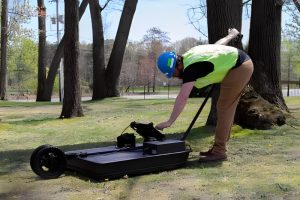

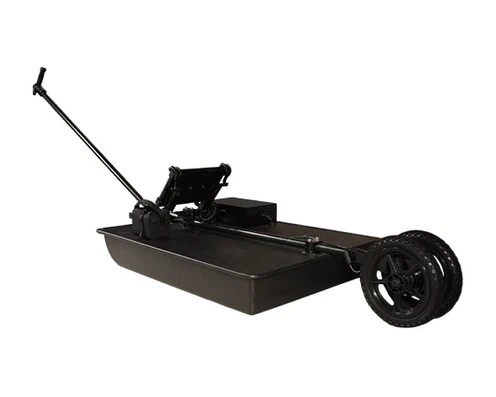

100 Series Geophysical Scanner Ground Penetrating Radar System
Our Most Powerful GPR System for Geophysical Scanner Survey
100 Series geophysical scanner systems offer the greatest realistic penetration that ground penetrating radar (GPR) can provide. It is used for locating deeper targets up to 100 ft. (30.48m). Typically, this system is most often used for locating tunnels and for geophysical analysis.
About the 100 Series
The 100 Series is one of our most versatile systems, as the tablet and software are interchangeable with our other systems. This means that you can easily convert a 100 Series into one of our many other configurations for more high-resolution scanning applications.
Think of your 100 Series system as more than a high-powered GPR device. When conducting a survey, you are doing more than seeing beneath the surface. You are compiling essential data that can be used to create an instant deliverable in the field – right from your tablet controller. This ensures everyone is on the same page and operating from a shared point-of-reference with greater efficiency, safety, and confidence.
Featured Technologies
- Self-Calibrating Antenna
- SmartGain
- SmartStack
- StreetSmart Onboard Processing
- Autoconfiguration
- Broadband GPR
- Depth Calibration
Applications
Locating Deep/Large Utilities:
- Non-metallic Pipes
- Metallic Pipes
Environmental:
- Tanks
- Rubble Limits
- Voids
Geophysics:
- Strata
- Bedrock
Strategic:
- Deep Tunnels
- Bunkers
Features
Durable, Glare-Resistant Tablet Interface
- Daylight readable, weatherproof Getac tablet interface
- High performance CPU enables real-time data processing
- Built-in 3D view capability
- WiFi supported
- USB, Ethernet, HDMI and Audio ports

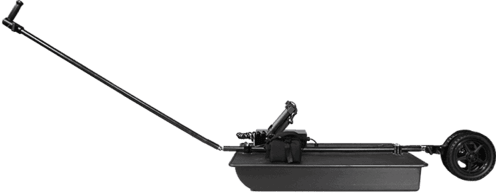

Sloped Antenna
- Easily overcomes obstacles and rough terrain
- Powerful low-frequency 100 MHz antenna for unmatched depth penetration
Battery Packs
- 2 battery packs included with each system
- Total runtime of 10 hours
- Typical lifetime of several years
Military Grade Connectors
- Never worry about loose connections
- Connectors hold up across a variety of weather conditions
Aluminum Handle
- Hybrid composite/aluminum pull handle
- Designed to precisely avoid GPS interference
Optional GPS Integration
- Optional GPS Pole mount
- Enables GPS to be centered over antenna
- Integrates with most high-end GIS and RTK units
- Optional integration with Google Earth
Airless, Solid Tires
- Airless, solid tires that cannot go flat
- Require no maintenance
Software
Acquisition Software
- Easy to use out of the box
- Perfect for on-the-go locating
- Auto-Calibrates Antenna
Autoconfiguration
- Sets system parameters
- Adjusts to soil conditions
Time-Varying Gain & Manual Configuration
- Enhance image at desired depth
- Multiple gain configuration filters
Color Palettes
- Use pre-made or make your own
- Alter gain (contrast)
- Zoom to enhance view
Mark-out & Measure Data
- Mark & label points in radar data
- Measure distance between points
Automatic Report Generation & File Export
- Exports radar data automatically
- Choose from many file formats
Optional Google Earth/SatelliteImaging Software Integration
- Overlay radar data on satellite imaging
- Create reliable utility maps
- See data in relevant environmental context
- Annotate & map data
Optional 3D Imaging & Modeling
- Generate depth slices overlays
- Generate point clouds
- Create isosurface models
Optional Mapping Software
- Create as-built drawings
- Use in the field or at the office
- Export into many file formats
Specifications
Radar Controller Computer
Getac F110
- Operating System: Windows 7 or 10 64-bit
- Third-generation Intel® Core™ i5vPro™ Processor
- Durability: MIL-STD-810G, 4-foot drop and all-weather IP65 dust and water resistant design
- Display: 11.6 inch, HD daylight-readable, ten-point multi touch + digitizer
- I/O Interface: Ethernet Port, DC Power Port, 1 USB 3.0 Port, HDMI Port, WiFi and Bluetooth
- Expansion Options: MicroSD or second USB 2.0 port, RJ45 Ethernet, Dedicated GPS
- Communications: Wi-Fi, Bluetooth® and optional 4G LTE or 3G Gobi™
Software
- Microsoft Windows
- US Radar Control Software Including:
- System Configuration
- A Scan Display (Oscilloscope Mode)
- B Scan Display (Cross Sectional View)
- C Scan Display (3D) (Optional)
- Real Time Signal Processing
- Data Storage and Playback
System Scan Modes
- Maximum typical logging scan rate of 390 traces per second
- Trigger Modes: Free run, timed interval, shaft encoder, GPS, manual
- Nominal Sampling Rate: 550,000,000 samples per second
- Maximum Resolution: 100 Gigasamples per second
- Hardware Time Varying Gain: 45dB
- Software Time Varying Gain: 60dB
- Software Flat Gain: 60dB
System Environmental Specifications
- Temperature: -11 deg. To 50 deg. C
- Moisture and dust resistance: IP 65
Radar Hardware Specifications
- Sampling Interval: 10 ps-6.4 ns
- Pulse Repetition Frequency: 0.1-4 MHz-adjustable
- Samples per Trace: 2-8192, Adjustable
- Effective Bandwidth (typ.): >3 GHz
- Stacking: Automatic
- Transmitter: Broadband, 100 MHz Center Frequency
- Receiver: Direct RF Sampling
Support
- Warranty: 2 Years Parts and Labor
- Complimentary telephone and email technical support
