EZ RES PRO - Resistivity Meter

Easily find underground anomalies such as Gold Veins and Deposits, Caves and Tunnels, Water deposits, and even Buried Caches or Treasure at depths of 1 to 50 meters or more!

The EZ RES PRO is a Professional Grade Resistivity Meter that is used to perform Electrical Resistivity Tomography (ERT) Surveys. ERT is used by professional geophysical surveyors to accurately locate sub-surface anomalies such as water, mineral deposits, caves or tunnels, archaeological sites, and even buried caches and treasure! The EZ RES PRO can perform simple 2 probe 'prospecting' surveys and 8 to 16 probe Imaging Surveys.

NO GIMMICKS! The EZ RES PRO produces REAL Images! Not images from a pre-programmed data base! With the included computer and the EZ RES PRO Imaging App you can easily see what lies underground.

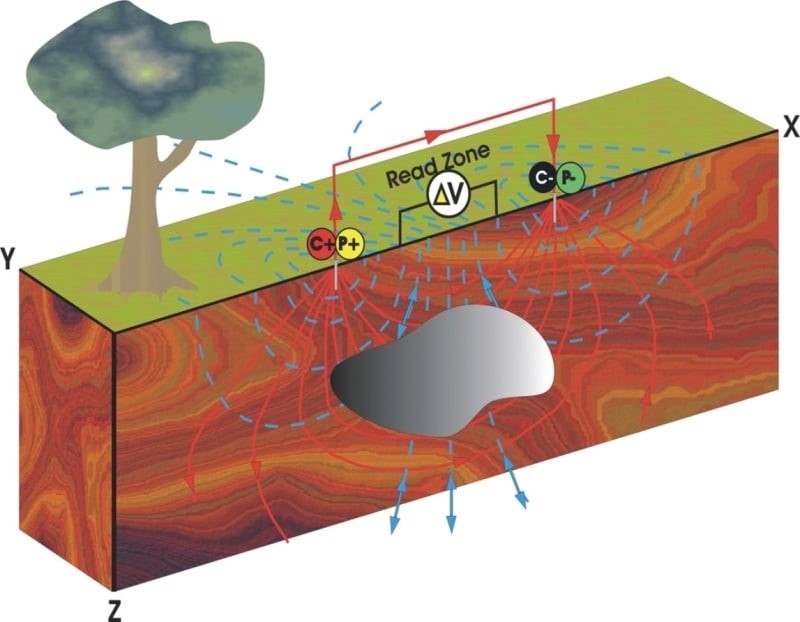

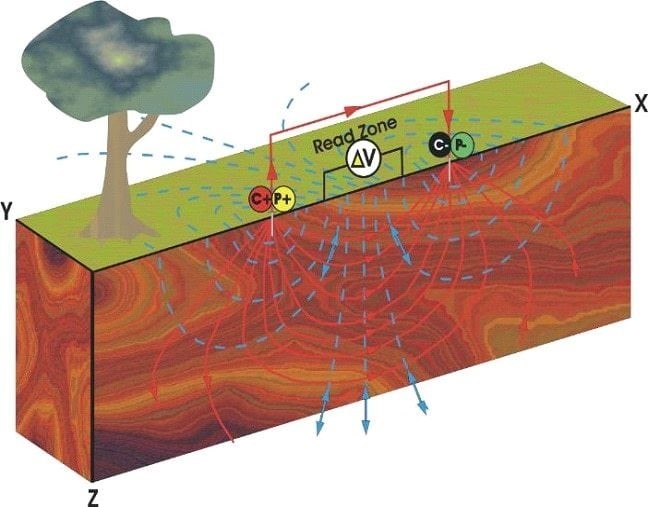

The Basic Principals of Resistivity:

A Resistivity Survey is conducted by placing metal probes into the ground and an electrical current is passed between them. The resistance of the current is measured in Ohms. Depending on the resistance the current encounters, you can identify different underground anomalies.

A high resistance anomaly would indicate something like a void, cave, or tunnel. A low resistance anomaly would indicate something like metal, minerals, or water.

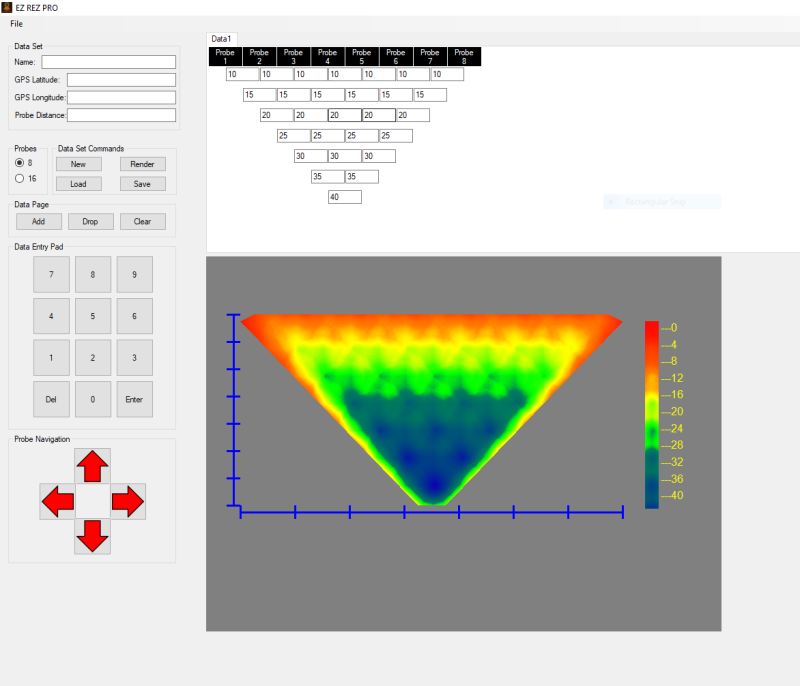

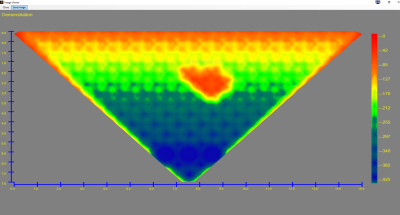

Imaging Basics:

In order to create an Image with the EZ RES PRO, 8 to 16 probes are inserted into the ground and all possible combinations are scanned. The EZ RES PRO App guides you through this process and automatically creates an image of what is underground.

Features:

2 Year Warranty
Data Logger can Store up to 300 Scans
Designed, Created and Supported in the USA
Will Perform up to 5000 Scans from 6 Changeable C Cell Batteries
Accurately finds Underground Anomalies at Depths from 1 to 300 Meters or More
Supports All of the Standard 2, 3, and 4 Probe Arrays that are Used by Professional Surveyors

What's Included:

Gear Bag
10 Survey Flags
2 - 25 Meter Cables
2 - 50 Meter Cables
5 Steel Probes with Case
2 - 50 Meter Measuring Tapes
Main Host Unit in Waterproof Case
2 - Jumper Wires (for 2 probe surveys)

Specifications:

Quick Look: Going professional? This EZ Pro resistivity survey meter makes your effort worthwhile. Easily finds Gold veins, buried treasures, etc.
SKU: 970-0320
Manufacturer SKU: 320
Product Type: Commercial Equipment
Warranty: Yes
Detector Type: Professional
Interchangeable Search Coil: No
Technology: Multiple Pulse Induction
Arm Strap: Yes
Adjustable Shaft: No
Apps: None
GPS: No
Audio Tones: No
Depth Indication: Yes
Programmable Target ID: No
Target ID: No
Pinpoint Mode: No
Vibration Mode: No
Search Mode Types: Depth Reading, Ground Balance Pulse Induction, Pulse Induction
Search Flashlight: No
Display Type: LCD
Backlit Display: Yes
Volume Control: No
Bluetooth Compatible: No
Interchangeable Headphones: No
Battery Type: C
Battery Quantity: 6
Battery Life (hr): 300 Hours
Rechargeable System: No
Exclusive Features: Depths from 1 to 300 meters or more, Perform up to 5000 scans, Data logger stores up to 300 scans
Warranty: 2 Year Limited Warranty
