OKM eXp 5000

Archeological exploration

The Earth Imager are the stars of our "FS - Future Serie". They can represent graphical measuring results without using any additional computer. Because of the high amount of optional accessories they are extendable individually. Every customer can purchase only that what he needs for his purposes.

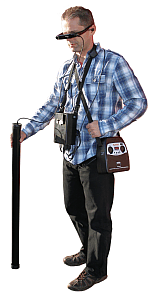

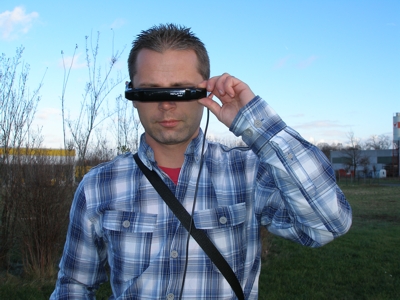

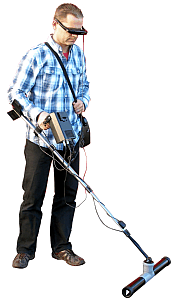

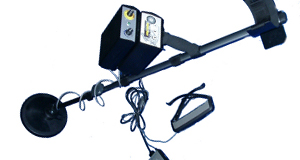

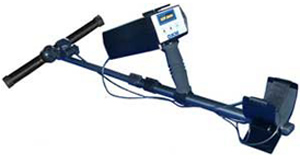

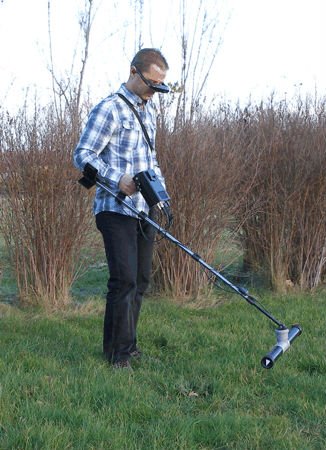

The metal detector eXp 5000 is a measuring instrument of newest technology and has been developed in particular for professional use. Through the supplied video eyeglasses buried objects like boxes, pipes, metals but also cavities and grave chambers under the surface becomes visible immediately. Furthermore the video eyeglasses are optimised for the search during the night and also protects against perturbing sunlight at day.

Compact equipment and easy handling

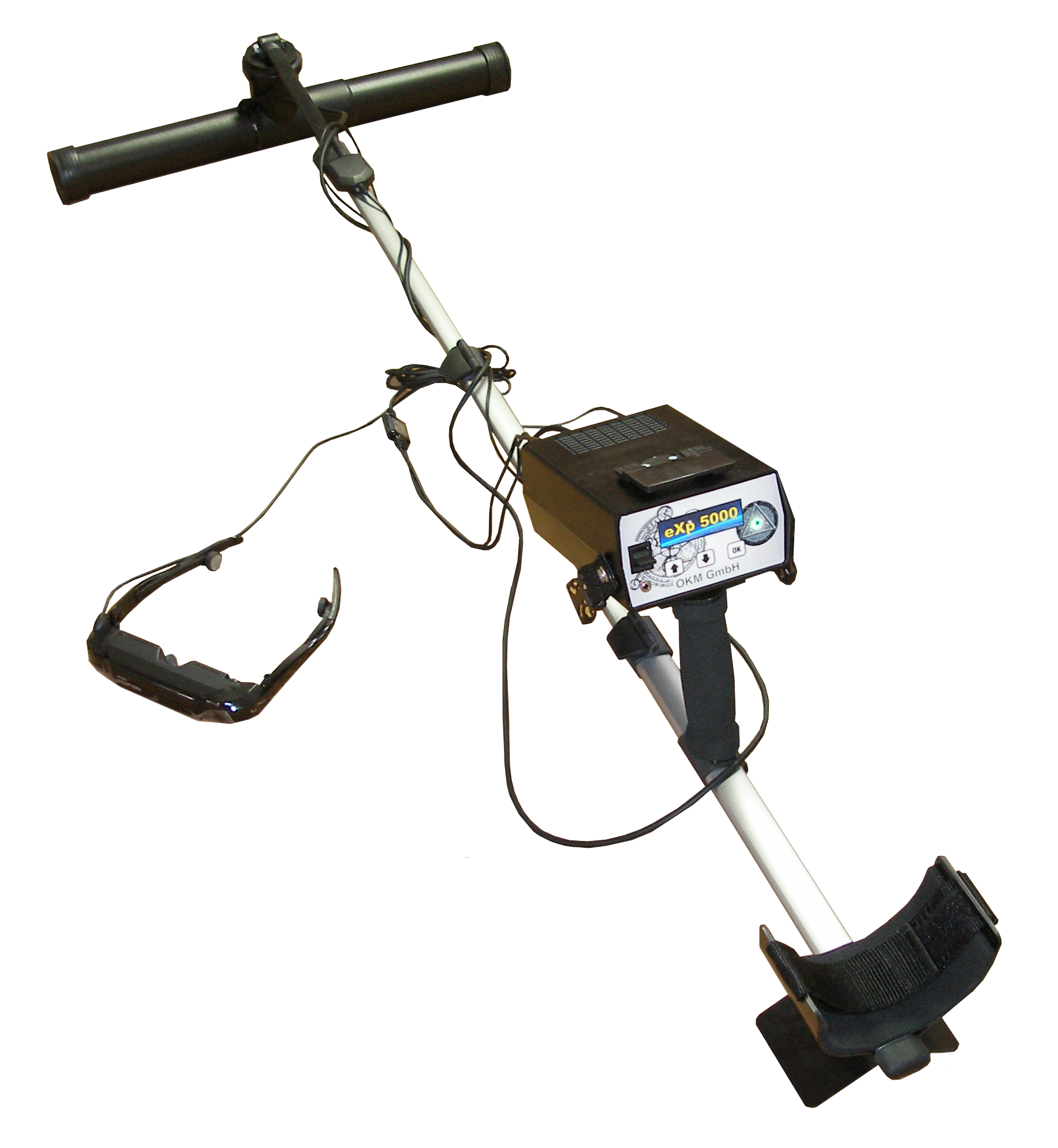

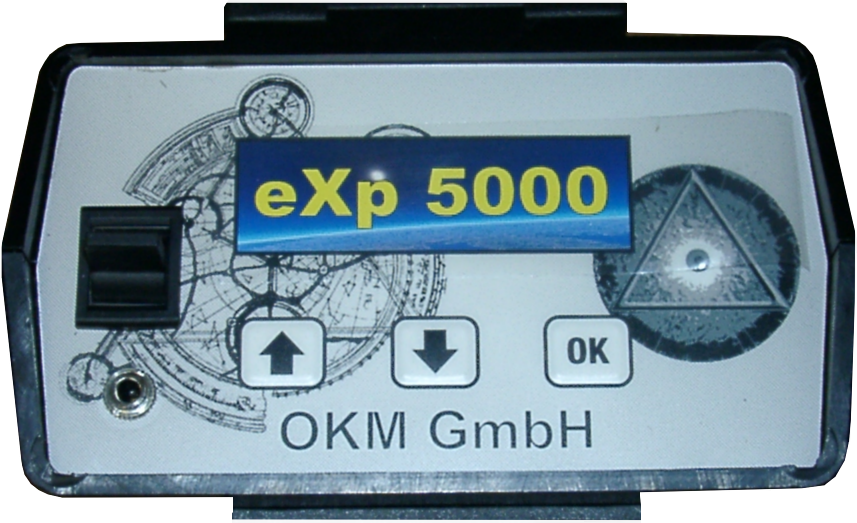

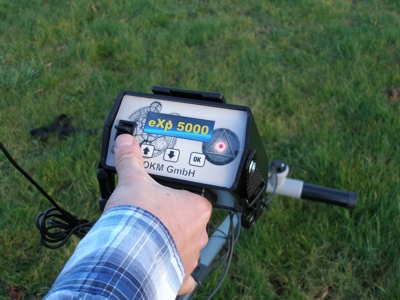

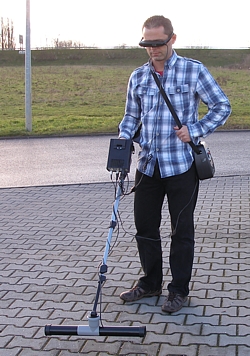

The Earth Imager eXp 5000 includes an easily removable control unit which makes it easier to use in different areas. With its compact equipment the device is also easy to handle in terrains which are difficult to access.

Fast processing of measured data

The device allows measurements in brilliant resolutions. All recorded data is processed immediately through the integrated pc-module and becomes visible through the video eyeglasses. The size of any measurement is almost indefinite and only limited by the storage capacity of 256 MB. All collected measured data can be transferred afterwards to a personal computer to analyse the results professionally in the software program Visualizer 3D. Besides the measuring values additional information like

the date and time,
the used antenna,
the GPS coordinates (if GPS has been activated) and
the current measurement settings

will be stored in every graphical representation automatically. Date and time settings can be adapted individually to the actual time zone.

Individual operating modes

The geophysical instrument and metal detector eXp 5000 supports different operating modes which can be used for specific underground investigations. According to your personal requirements one of the following operating modes comes into operation:

Magnetometer ( detect ferromagnetic metals )

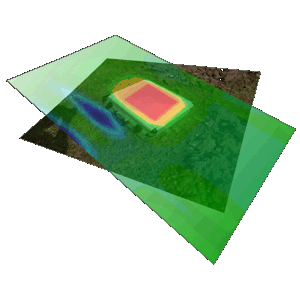

Ground Scan ( create colored representations of the underground in 3D )
Discrimination ( metal discrimination : precious metals / base metals )
Metal Detector ( metal discrimination : gold, silver, iron and aluminium )
Live Scan ( live display of the underground )
Thermograph ( measure differences in temperature )
Thermo Scan ( create infrared images in 3D )

GPS receiver for navigation

The integrated GPS receiver refers every recorded measurement to its appropriate measured area. If you do not know exactly where a measurement was performed, the metal detector eXp 5000 is able to navigate you to the corresponding place

Optional accessories as specialization

With different antennas the metal detector eXp 5000 can be optimized on special purposes:

GPR-antennas ( 25 cm, 50 cm, 75 cm, 100 cm ) to scan the underground in 3D
Tunnel Sensor ( antenna for tunnel and cavity detection )
DDV system ( Antenna for metal discrimination ) to discriminate between gold, silver, iron and aluminium
Super Sensor for high resolution ground scans in 3D
VLF emitter ( 4 pieces ) to optimize the measurement
Livestream Sensor for live display of buried objects
FS-Thermoscan to create infrared images in 3D

OKM Exp 4000 Probes

Probes

VLF emitter

By positioning the 4 VLF emitter onto the ground the search for metallic objects will be optimised. In that way the scan images of the underground looks much better and hidden objects are much easier to find.

Livestream Sensor

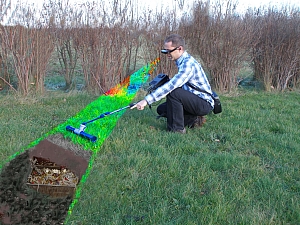

The Livestream Sensor shows hidden objects immediately. As soon as you move the antenna over an object it will be shown in the video eyeglasses of the Earth Imager eXp 5000.

OKM thermoscan

OKM Thermoscan

Specifications:

The following technical indications are medial values. During operation small variations are quite possible.
Control unitOperating temperature 0 °C – 50 °C
Storage temperature -20 °C – 60 °C
Air humidity 5 % – 75 %
Waterproof No
Dimensions (H x W x D) 8 x 13 x 18 cm
Weight approx. 2 kg
Voltage 9.6 - 14.4 VDC, 22 W maximum
Safety class IP40
Operating time (full charged battery, delivered power supply, 25° C) approx. 3 hours
Video eyeglasses 640 x 480 Pixel, Color
Processor 300 MHz Prozessor, INTEL i586-compatible
Working memory 256 MB RAM
Data memory 256 MB
Feedback audible, visual

Data transmission (USB)Technology USB
Maximum Transfer Rate 19200 Baud

Computer, minimum requirements

The computer is not part of the scope of delivery. The indicated values should help you for a correct selection of a suitable computer for analysis of your measured results.CD-ROM drive minimum 4x
Interface (Data transmission) USB
Free disk space minimum 50 MB
Working memory (RAM) minimum 256 MB
Graphic card minimum 128 MB, OpenGL-compatible
Processor minimum 1.2 GHz
Operating system Windows Vista, XP, 98SE, 2000

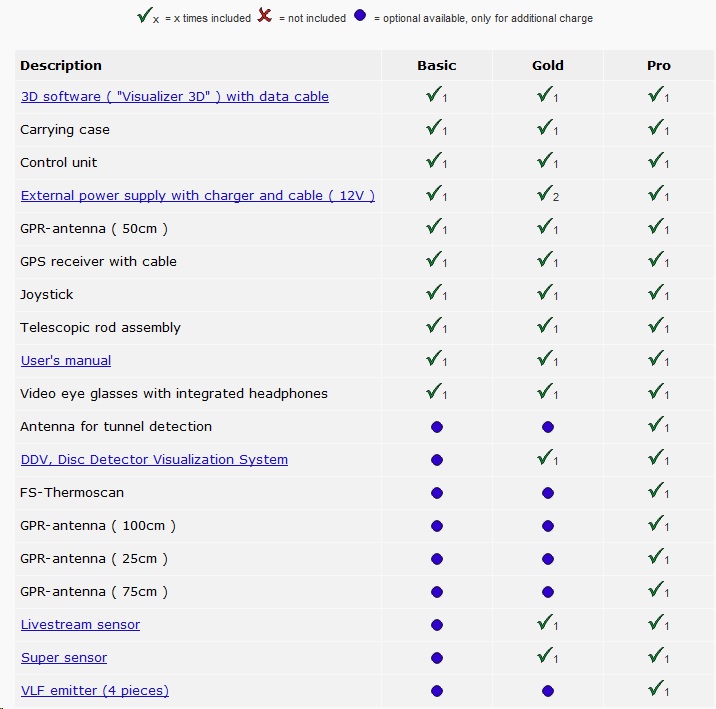

In the following table you can see the complete delivery contents and all optional accessories.
The used symbols have the following signification:
