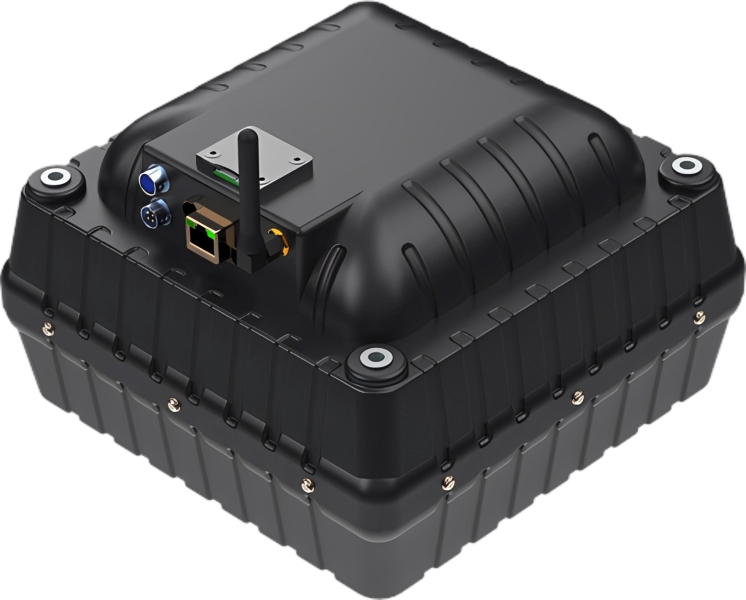

Geoscanners SPG-1600

The Geoscanners SPG-1600 is a compact and fully integrated Ground Penetrating Radar (GPR) system engineered for high-resolution subsurface investigations. The system combines the transmitter, receiver, control electronics, power supply, and communication interfaces into a single lightweight unit, simplifying deployment while maintaining excellent radar performance. Designed for professional geophysical surveys, the SPG-1600 supports both traditional ground-based operations and airborne applications when mounted on compatible UAVs or aerial platforms. Its onboard data storage, GPS support, and wireless communication make it a versatile solution for a wide range of surveying tasks.

Advantages

• Lightweight integrated design for maximum portability
• High-resolution imaging with a 608 MHz antenna
• Autonomous operation using onboard data storage
• Fast wireless communication through Wi-Fi
• GPS integration for accurate positioning and mapping
• Low power consumption, ideal for extended field surveys
• Easy installation on carts, robotic platforms, vehicles, or UAVs
• Reliable performance in demanding geophysical applications

Features

• Ice road measurement
• layer mapping
• USB connectivity and WiFi
• lower cost solution

Technical specifications

• Dimensions - 220x220x130mm
• Weight - 991g
• Frequency - 600MHz
• HS code - 90158020
