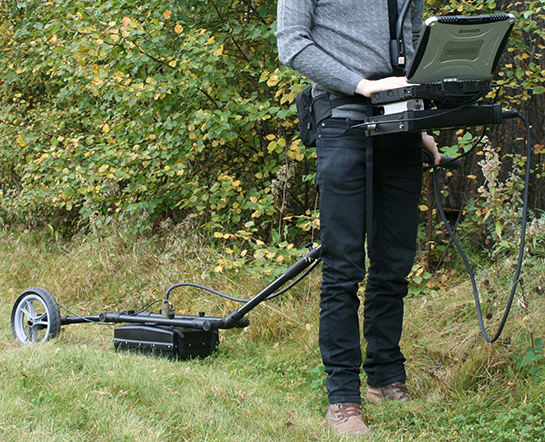

Geoscanners Scorpio
Complete GPR System
The Scorpio is not limited to one antenna configuration, but gives you the possibility to use its control unit the Akula-9000 with all supported antennas. This makes the initial investment more sound since the expansion of the unit can be done without any hurries and when it is necessary and financially possible.
Not only is the Scorpio giving a wide array of possible antennas to use, but it also comes with our powerful and user friendly software package GPRSoft standard edition already installed and ready to use.
The collection software GAS is so intuitive that most customers seldom need to read the manual or even open the help file to find out how to do one operation or the other. This user friendly interface is a result of an intense work by our designers and a tight interchange of ideas with a group of very talented power users of ground penetrating radar units.
Not only is the Scorpio giving a wide array of possible antennas to use, but it also comes with our powerful and user friendly software package GPRSoft standard edition already installed and ready to use.
No matter which configuration you'll buy, the amount of available antennas are many and the quality of the data as high as you can get. This is due mainly to the fact that all units utilize the same control unit, our Akula 9000.
Comes included
Technical Specifications:
Analogue Bandwidth: 10MHz to 1400MHz
Range: 32 to 1021ns in 1ns Steps
Filters: IIR, FIR, FFT, Stacking, Background Removal, Dewow
Gain: -20 to +60dB with 6 points
Software: GAS and GPRSoft Std
Power Comsumption: 7 Watts
Temperature: -20 to +40°C
Humidity: 96% non condensing
Size and Weight: Depends on antenna
