Garrett RECON-PRO® AML-1000
The Recon Pro Aml 1000 is a detector specifically designed for military purposes in discovering targets such explosive remnants of war, landmines, and other dangerous things submerged under the ground. The Recon Pro Aml 1000 hand held metal detector comes with accurate pinpointing and tells you the size, depth and shape of larger bodies of metal. Comes with powerful Deep Search Capacity. Folds down to 24 inches and unfolds to 63 inches. Weighs 6 lbs and 24 lbs with the case. explosive remnants of war.
Garrett RECON-PRO is versatile, highly rugged, waterproof and is operational to 3 meters depth.
It is very simple to ground balance and offers excellent sensitivity to small targets in difficult ground conditions.
FULL OPERATIONAL VERSATILITY
MILITARY:
Rapid deployment for mines, UXO, and IED search.
HUMANITARIAN:
Highly dependable with deep detection capability.
- MILITARY: Rapid deployment for mines, UXO, and IED search.
- HUMANITARIAN: Highly dependable with deep detection capability.
- Optimum Detection Sensitivity: Low metal content targets to large metallic items are detected in ALL soils and shallow water with full detection capability.
- Advanced Pulse Induction Technology: Allows operation in ALL soil conditions (including areas withconductive stones) with minimal and fast adaptation. Use additional fine tuning control for extreme soil conditions.
- No Assembly Required: Simply remove from its case and the RECON-PRO® is ready for operation!
- Adjustable Operating Length: Three camlocks allow operator to extend the telescopic shaft and lock in various lengths to best suit the search environment and/or the operator. Detection work can be done in standing, kneeling or prone position. Interchangeable assembly allows user to quickly exchange search heads.
- Easy and Accurate Pinpointing: A special pinpoint function is provided to identify the size, shape and position of large buried targets.
- Compact Design: The RECON-PRO easily collapses and folds to a compact size for storage in its backpack or watertight transport case.
- Deep Search Capability: The RECON-PRO’s standard search head had excellent detection depth on small targets.
- Optional UXO search head: Use for locating larger and more deeply buried objects. Includes surface debris elimination.
- Selectable “salt/surf zone” mode: Eliminate false responses from surf action.
OPTIMUM DETECTION SENSITIVITY
Low metal content targets to large metallic items are detected in ALL soils and shallow water with full detection capability.
Designed for military and industrial use where user interface is more controlled.
Includes standard 8” (20cm) search head.
True Non-Motion Mode (static) search operation.
EASY TRANSPORT!

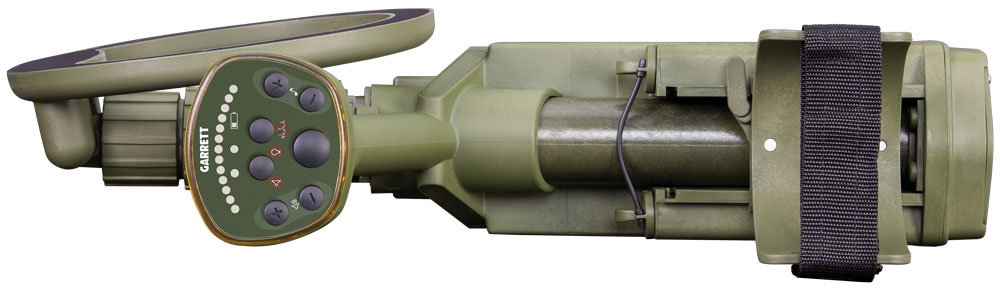

Only 19.8 inches (504 mm) when folded.

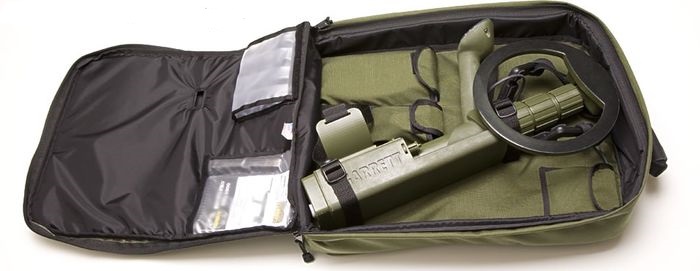

The RECON-PRO easily collapses and folds to a compact size for storage in its backpack or watertight transport case.

External speaker allows Recon Pro to be used with or without headphones for full field versatility.

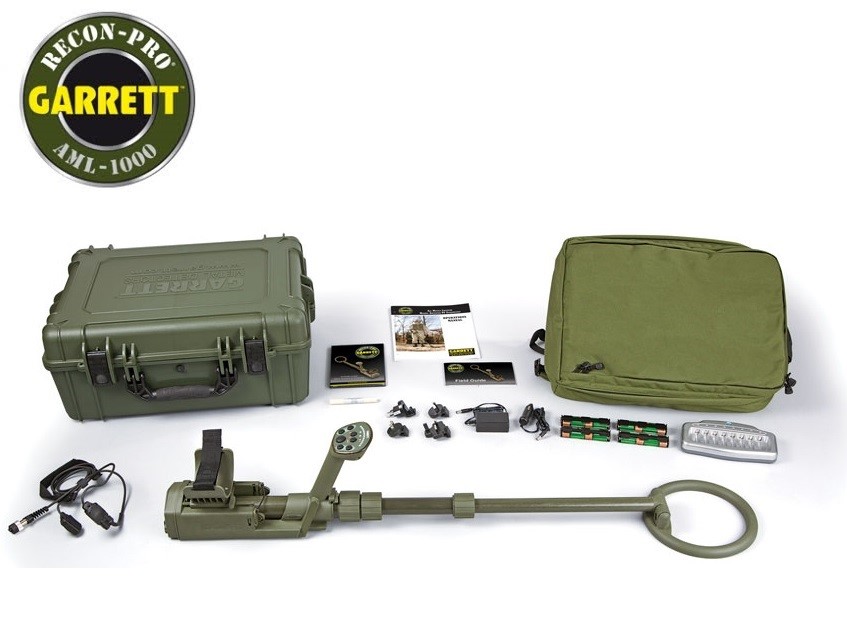

- Includes 20 cm and 38 x 50cm search heads
- Tactical headset
- Charging set
- NiMH batteries (2 sets)
- Field back pack
- Hard carry case
- Test piece
- Field guide
- Operational manual and DVD.

GARRETT RECON PRO ACCESSORIES
- Travel Cases.
- Coil Covers.
- Headphones.
- Rechargeable batteries.

GARRETT RECON PRO SEARCH HEADS
TECHNICAL SPECIFICATIONS
| Detector Length | 19.8 in./504 mm (folded) 63 in./1600 mm (extended) |
|---|---|
| Weight | 6.25 lbs. (2.83 kg) for detector; 24.15 lbs. (10.95 kg) w/case. |
| Detection Technology | Advanced Pulse Induction Technology (APIT) |
| Water and Dust Protection | IP 67 |
| Design Standard | MIL STD 810 G |
| Warranty | 36 months, Limited Parts/Labor |
| Operating Temperatures | Humidity to 95% non-condensing. Alkaline, NiMH batteries: -10°F (-23°C) to 149°F (65°C). Lithium batteries:-40°F (-40°C) to 149°F (65°C). Storage temperature (without batteries): -72°F (-58°C) to 158°F (70°C). |
| Power | Eight (8) rechargeable AA cells. Charger and extra set rechargeable batteries included. Alkaline batteries optional. Average operation time with fresh batteries is 10–12 hrs. |
| Target Alerts | Adjustable audio volume/LED bar |
Download:
Garrett RECON-PRO AML-1000 Specifications Sheet
