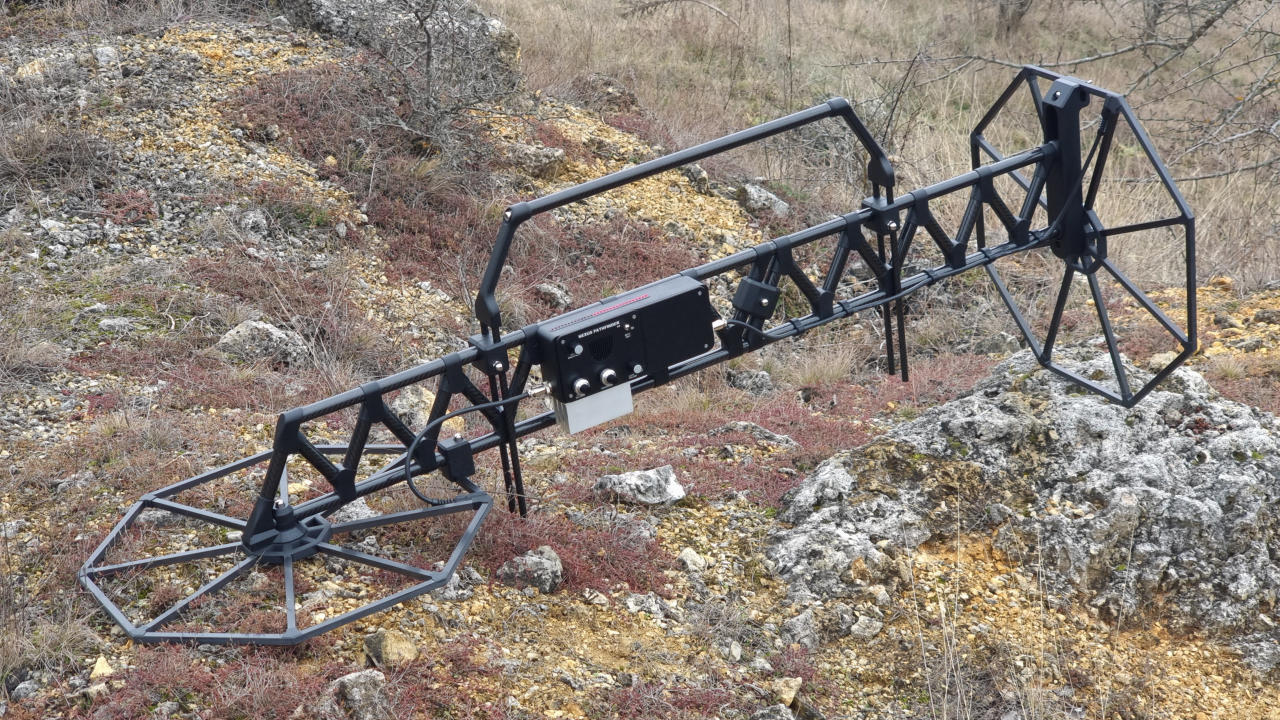

Nexus Pathfinder V3
Two Box / Twin Box metal detector

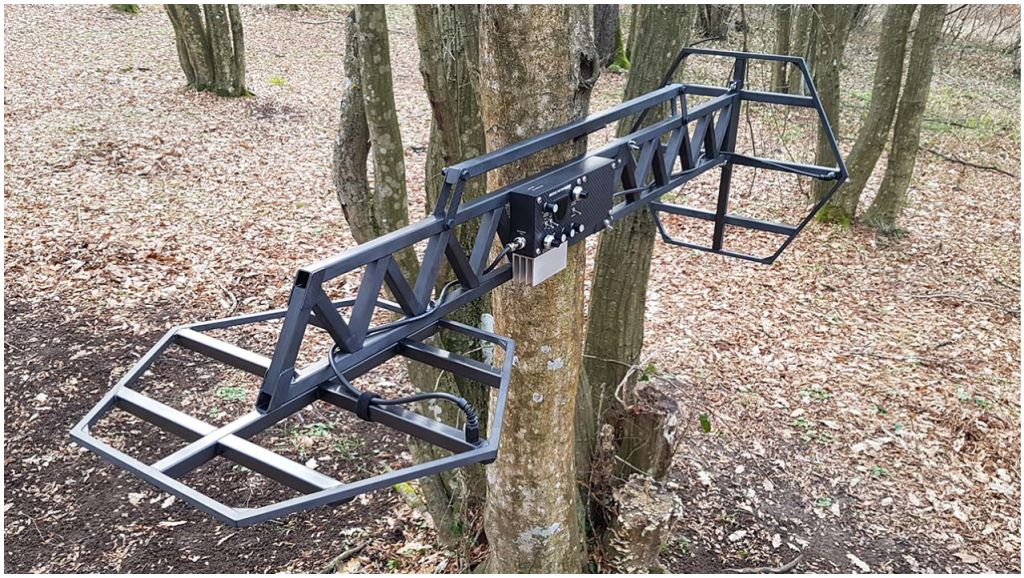

The Nexus Pathfinder is a well established twin box metal detector in our product range. The V3 is the very latest upgrade with brand new redesign to a smaller, more mobile, lightweight and easier to use search coil system with two 20" search coils, with the new development no compromise in the extreme depth capabilities of the detector.

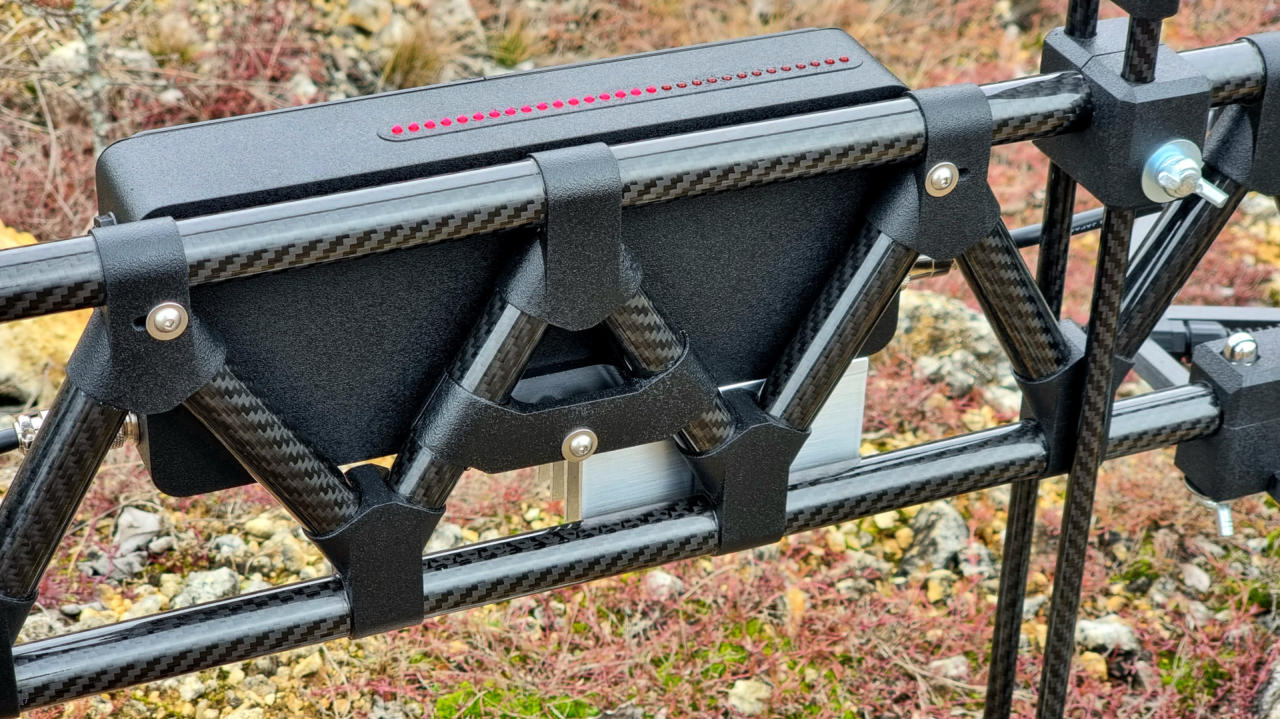

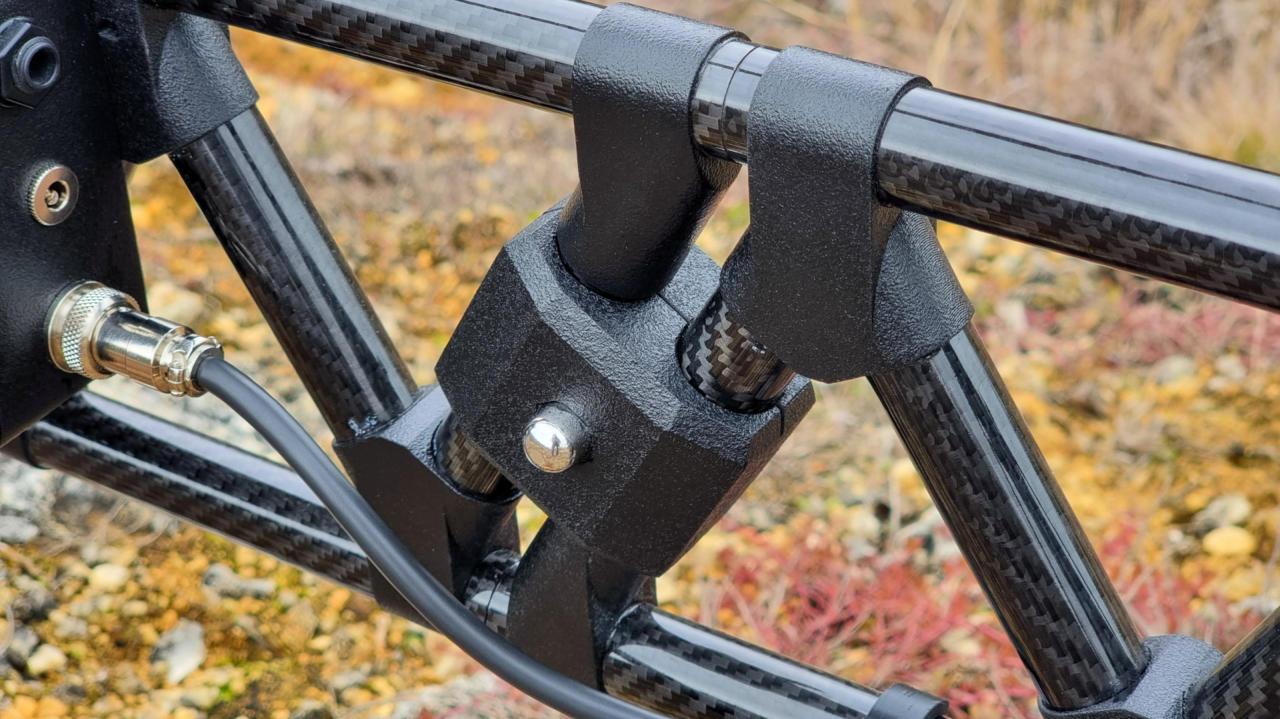

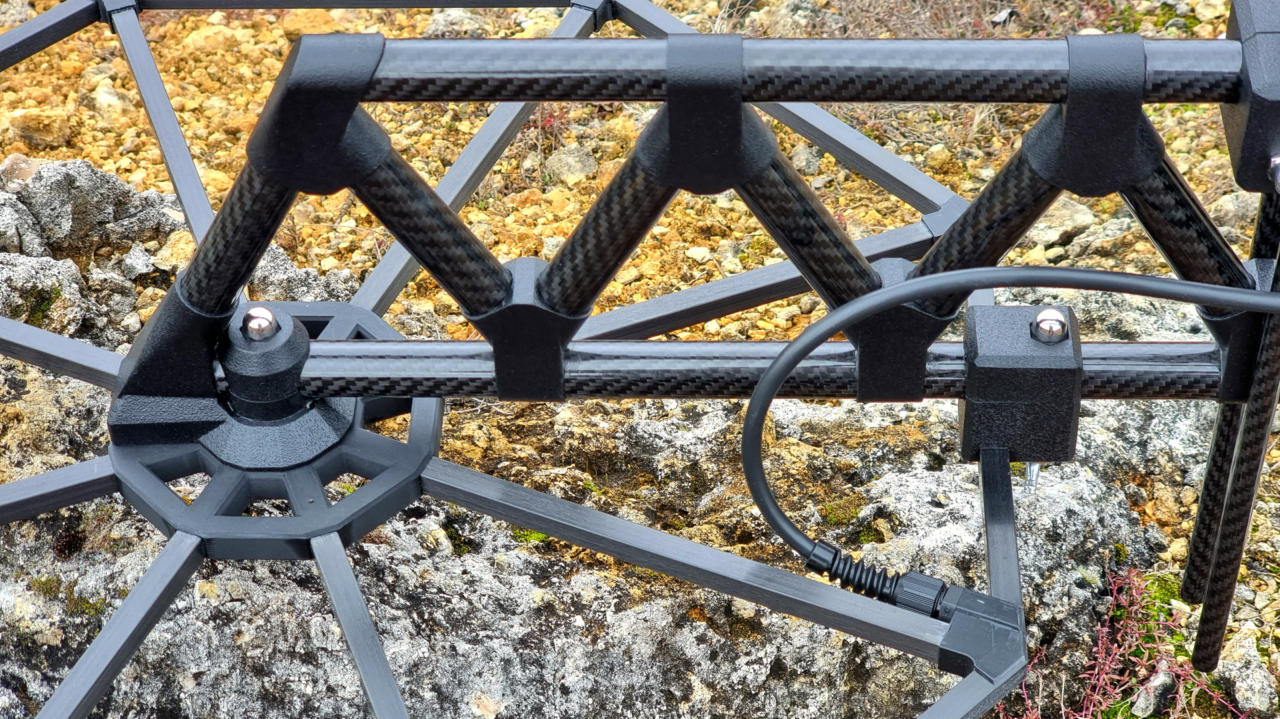

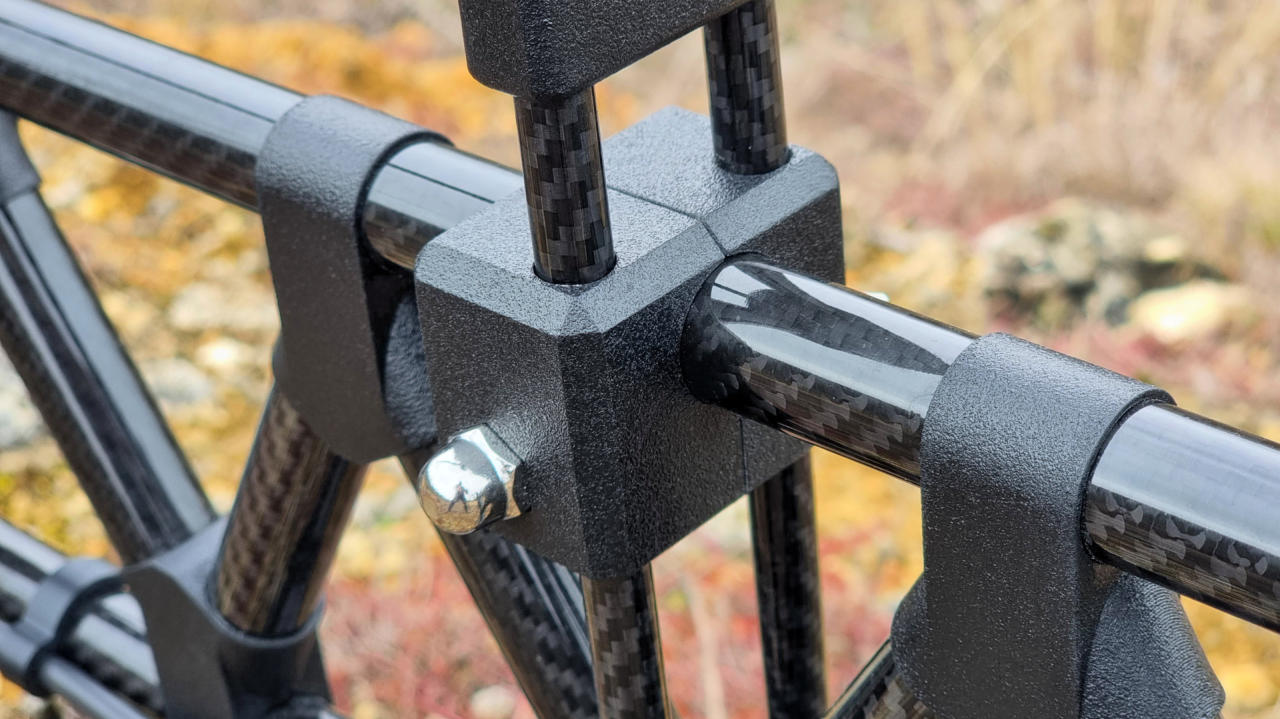

The total weight of the new Nexus Pathfinder V3 design including batteries is 3.9 kg. The maximum mechanical length of the detector is 162 cm.The two box metal detector redefines the terms depth and discrimination completely and have earned the name “iron buster” for its exceptional ability to completely ignore iron objects such as wires and nails of size up to 15 cm. It’s non-motion system ensures peak performance on iron contaminated sites. The mechanical construction is made out pure Carbon Fibre and it is designed to achieve extreme mechanical stability and very low weight simultaneously. The complete detector consists of 4 separate parts - Two part holding frame, handle and two search coils. These parts fits together in a couple of minutes and the unit is ready for use.
Manual adjustment of the settings allows fine tuning of this twin box for peak search efficiency of this non-motion metal detector.
Technical Specification

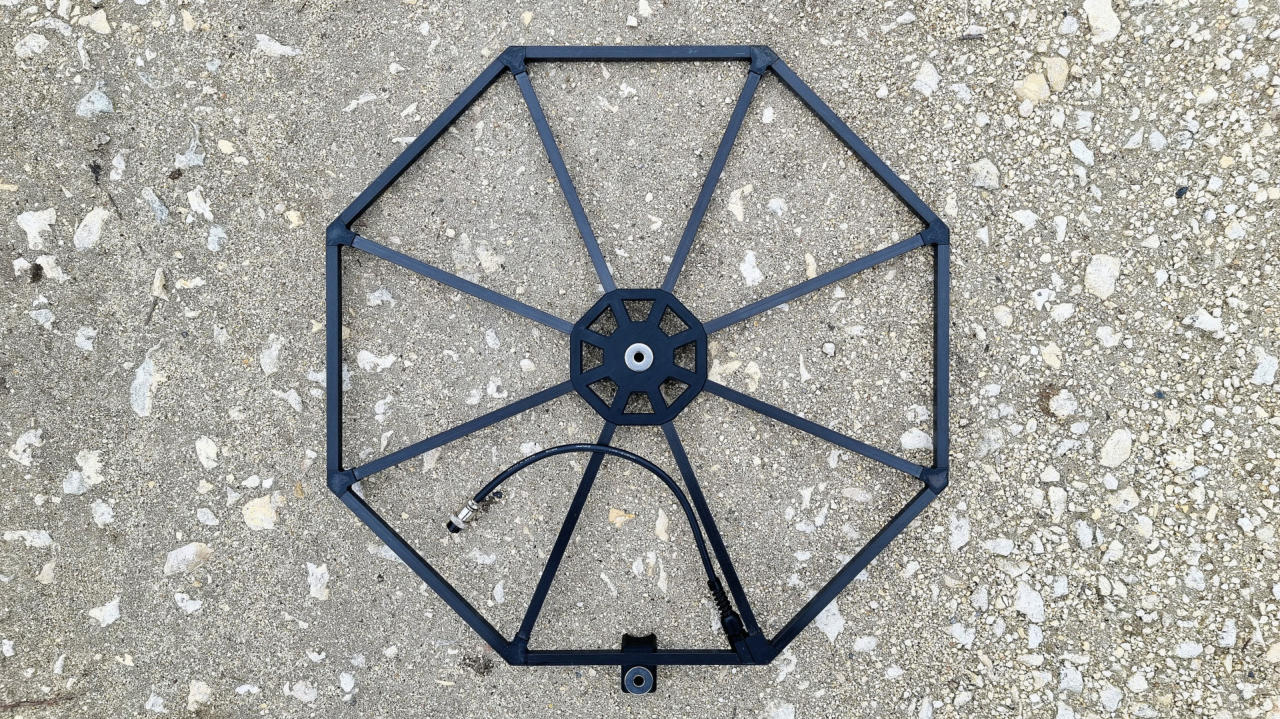

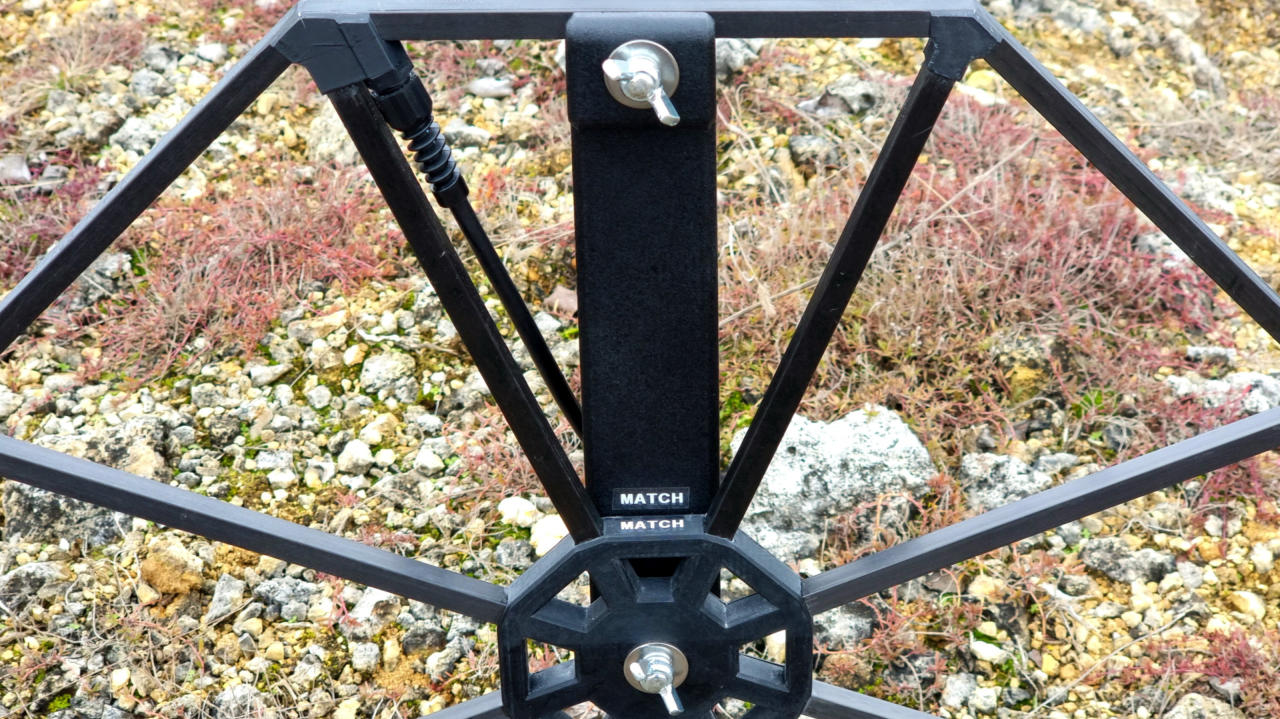

- Search coil size - 20 inch hexagonal loops for both receiving and transmitting
- Operating frequency - 5.7 kHz
- Weight of complete unit - 3.9 kg
- Detector length - 162 cm
- Collapsible modular construction for easy transport. The detector can be disassembled to 4 basic components - two coils and two parts of the holding frame

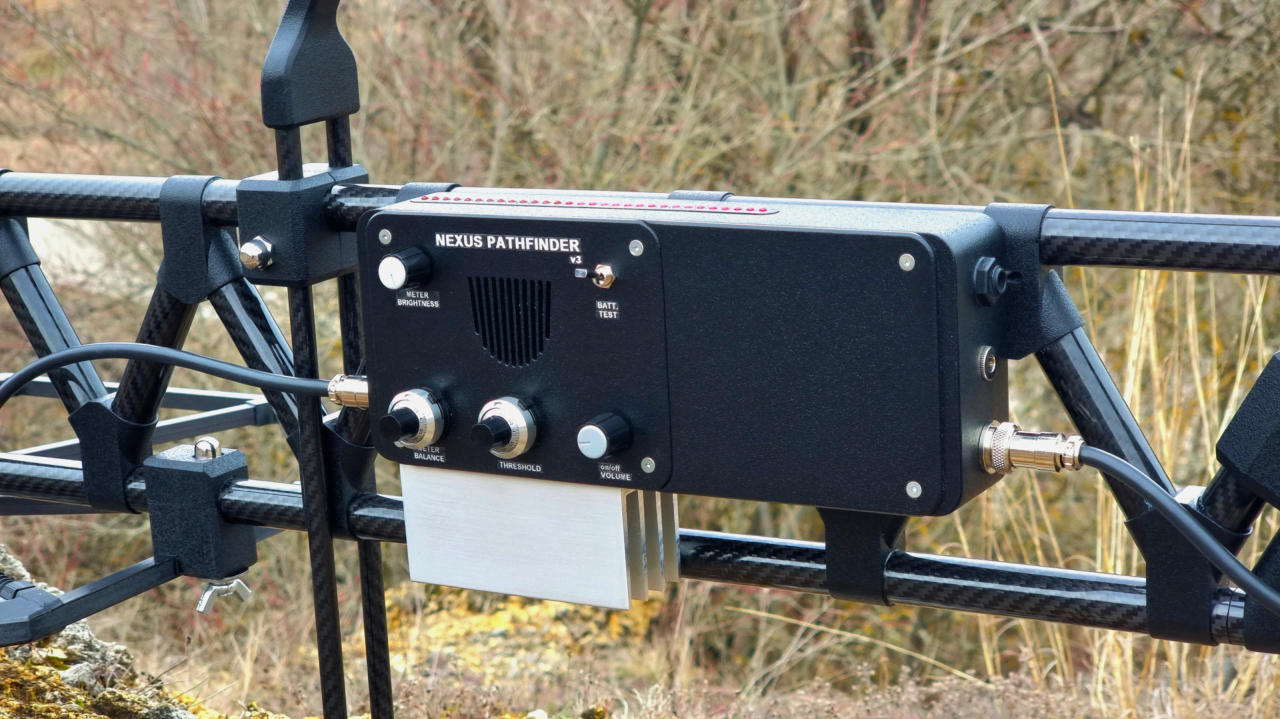

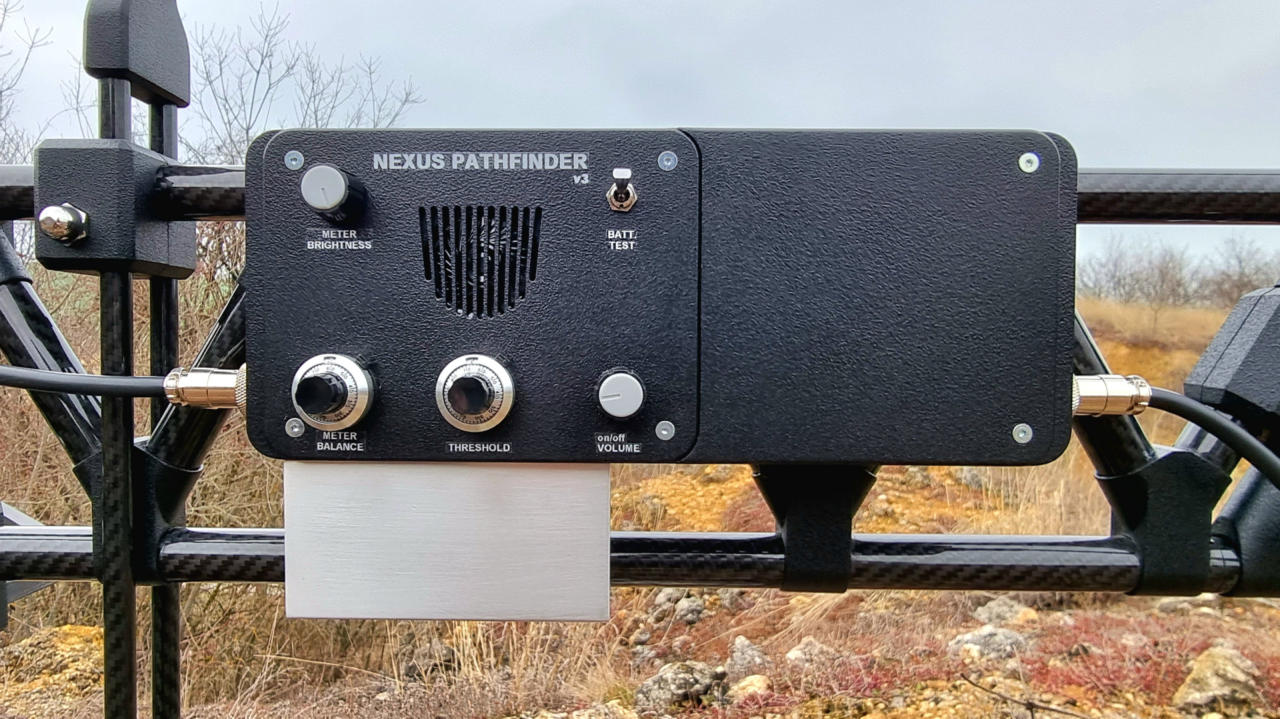

Electronic Controls
- Power on/off combined with a Volume control
- Threshold
- Meter Balance
- Meter Brightness
- Battery Test. Checks battery voltage from 12.3V to 16V
Connections
- TX coil connector
- RX coil connector
- Headphone socket
- On board loudspeaker
- Battery charger socket
- Internal lithium - Ion battery pack, permanently installed in the control box
- Smart Lithium-Ion battery charger is included in the set
Target Identification

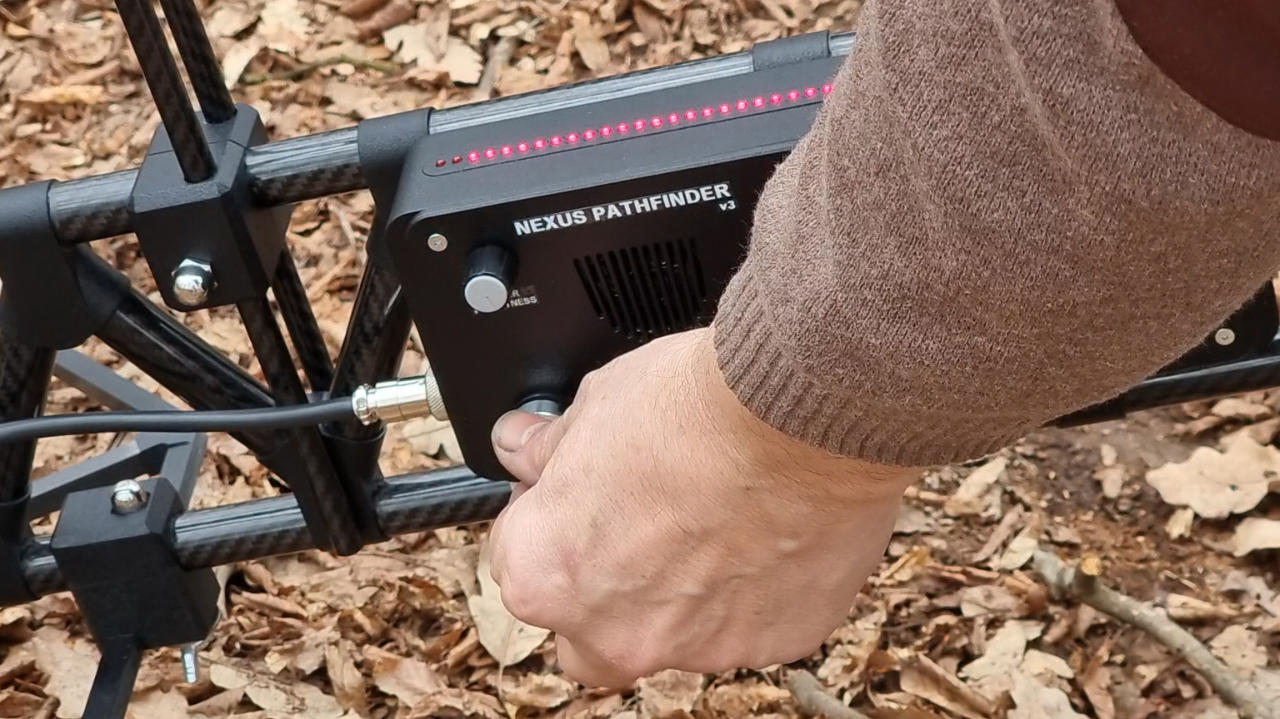

Visual: The LED meter indicates presence of non-ferrous metal targets
Sound: The VCO tones sounds high for non-ferrous metals and low for ferrous (iron). The Pathfinder V3 is capable to completely ignore iron objects such as wires andnails of size up to 15 cm

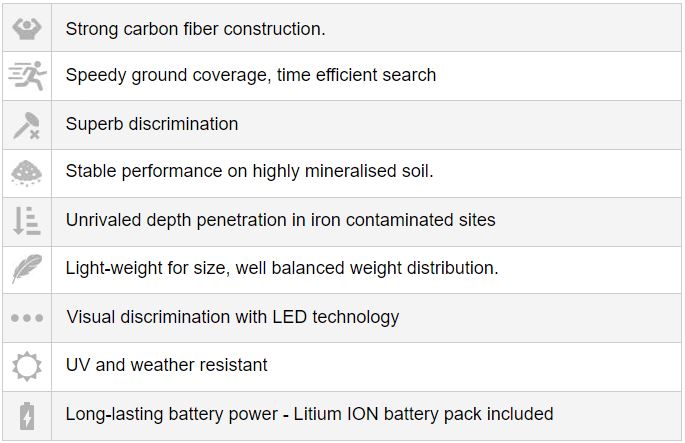

Features

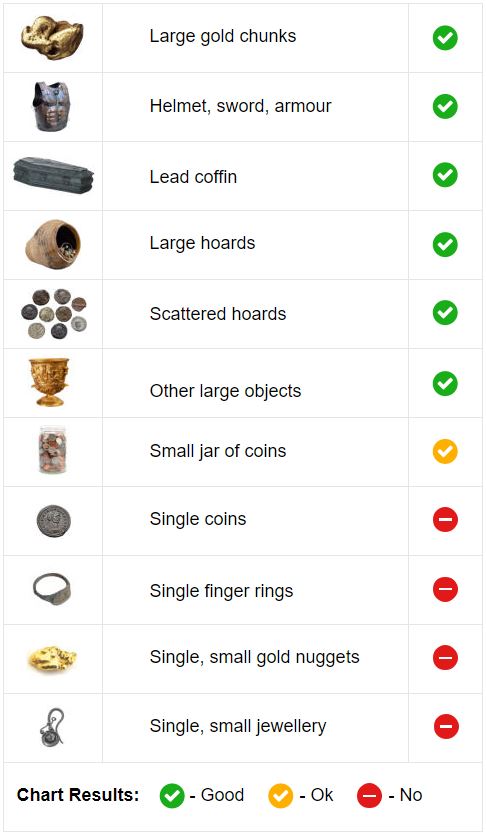

Recommended Targets
