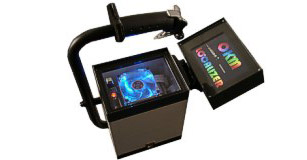

OKM Localizer 3000 (2003-2007)
The Earth Imager are the stars of our "FS - Future Serie". They can represent graphical measuring results without using any additional computer. Because of the high amount of optional accessories they are extendable individually. Every customer can purchase only that what he needs for his purposes.
Localizer 3000 is a ground penetrating instrument to find buried metal objects such as pipes, boxes, weapons and jewelry. Furthermore, you can detect voids, caves, rooms and graves below the surface.
With Localizer 3000 you are able to scan an area and get immediately a picture of the ground on the screen. All necessary data will be calculated in the internal 300 MHz Intel®-compatible processor. By using the professional imaging software Visualizer 3D you are able to determine the position and depth of objects.
Integrated features (standard) of Localizer 3000
- Magnetometer
- Single Sensor
- External Power Supply
- Differential Sensors
- Wireless Headphones
- Visualizer 3D with data cable
In order to locate deep objects you can use the differential probes. While using these antennas you will get a higher resolution of the underground.
All measurements will be stored automatically in the internal memory of the device. After the transmission of all records to a computer, detailed analysis can be done in the software Visualizer 3D.
Additional components (optional) for Localizer 3000
- Antenna for metal discrimination (DDV System)
- Super Sensor for high resolution ground scans
With the DDV System the detector is able to discriminate between different metals like gold, silver or iron. Besides an acoustic signal you get a visual representation on the screen of the device.
With the Super Sensor you get high resolution images. The integrated discrimination technology helps to distinguish between ferrous and non-ferrous metals as well as cavities.
Operating Modes of Localizer 3000
Localizer 3000 includes different operating modes:
- Magnetometer examines the ground regarding to ferromagnetic metals like iron. The indication takes place through an acoustic oscilloscope.
- Ground Scan allows a graphical measurement. The measured underground will be represented directly on the screen of the device. These measured data can be stored in the memory of the device and transferred to a computer. With the professional software Visualizer 3D the measurements can be analyzed regarding to the position and depth of objects.
- Side Scan provides a quick discrimination between cavities and metals. The immediate representation shows all anomalies in the inspected area.
- Metal Detector has been specially developed to locate small objects situated near the surface (e.g. coins or rings). With the detector you have also the possibility to examine potential findings with regard to their material: You can determine, if an object is made of gold, silver or iron.
Technical specification
The following technical indications are medial values. During operation small variations are quite possible.
Control unitOperating temperature 0 °C - 70 °C
Storage temperature -20 °C - 60 °C
Air humidity 5 % - 75 %
Waterproof No
Dimensions (H x W x D) 430mm x 380mm x 190mm
Weight about 3kg
Voltage 9,6 - 14,4 VDC, 22W maximum
Safety class IP40
Operating time (full charged battery, delivered power supply, 25°C) about 3 hours
Display 300 mcd backlight, 6.4" diagonal, 640 x 480 Pixel TFT, Color
Processor 300 MHz Prozessor, INTEL i586-compatible
Working memory 128 MB RAM
Data memory 128 MB
Feedback audible, visual
Data transmission (USB)Technology USB
Maximum Transfer Rate 19200 Baud
Computer, minimum requirements
The computer is not part of the scope of delivery. The indicated values should help you for a correct selection of a suitable computer for analysis of your measured results.CD-ROM drive minimum 4x
Interface (Data transmission) USB
Free disk space minimum 50 MB
Working memory (RAM) minimum 256 MB
Graphic card minimum 128 MB, OpenGL-compatible
Processor minimum 1.2 GHz
Operating system Windows XP, Windows Vista, Windows 7

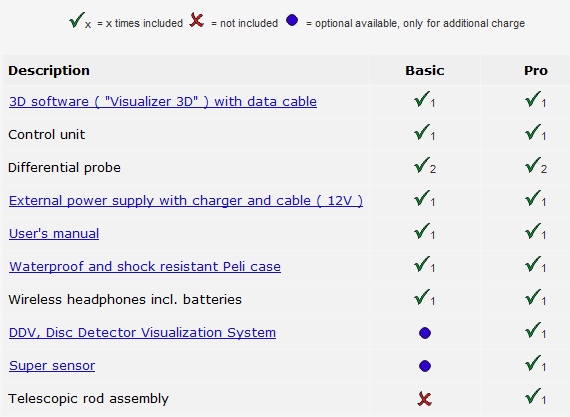

Scope of delivery:
Download:
