OKM GRAILFINDER (2004-2007)
Grailfinder - Exploration of tunnels and caves
All of our metal detectors and geophysical detecting instruments are part of the "FS - Future Series", a line of our latest technology to detect buried objects and underground structures. Beside the measuring instruments it includes our 3D software which assures a detailed analysis of the measured results.
The Grailfinder is a cavity detector combining geo-electric and electromagnetic pulse methods. It allows to localize cavities, tunnels and caves in the underground.
All of our metal detectors and geophysical detecting instruments are part of the FS – Future Series, a line of our latest technology to detect buried objects and underground structures. A detailed analysis of the measured results is possible through our 3D software Visualizer 3D.
Grailfinder combines geo-electric and electromagnetic pulse methods and, hence, the functionalities of Rover C and Cavefinder in order to find objects and cavities below the surface.
The Grailfinder is a combined device including geo-electric and electromagnetic pulse method. It combines the functionalities of Rover C and Cavefinder, so that the device includes the following functionalities:
- Acoustical magnetometer
- Graphical ground scans (manual/automatic)
- Automatic cavity measurement with easy "Yes/No" evaluation
- Graphical control output to a computer
Grailfinder functions
- Magnetometer
- Graphical ground scans (manual/automatic)
- Automatic cavity measurement with easy “Yes/No” evaluation
- Graphical control output to a computer
The Grailfinder includes a magnetometer to locate ferromagnetic metals like iron, nickel and cobalt which are situated close to the surface. With the standard probe or the optionally available Super Sensor, graphical measurements can be made and evaluated and analyzed via Visualizer 3D software.
Measurement data evaluation
Thanks to the integrated microprocessor technology, ground balance, depth measurement and data storage will be performed automatically by the device. The evaluation of the measured data takes place at the computer, where the scanned area can be analyzed in a three-dimensional graphic with the help of the software Standard 3D and Visualizer 3D.
The following technical indications are medial values. During operation small variations are quite possible.
Control unitOperating temperature 0 °C - 70 °C
Storage temperature -20 °C - 60 °C
Air humidity 5 % - 75 %
Waterproof No
Dimensions (H x W x D) 430 x 150 x 260 mm
Weight about 3 kg
Voltage 12 VDC
Processor Motorola, 4 MHz
Data memory (internal) about 1500 measured values
Data transmission (Bluetooth)Technology Bluetooth
Frequency 2.4 – 2.4835 GHz
Maximum Transfer Rate 1 Mbps
Receiving Sensitivity -85 dBm
Maximum Range approx. 100 m
Computer, minimum requirements
The computer is not part of the scope of delivery. The indicated values should help you for a correct selection of a suitable computer for analysis of your measured results.CD-ROM drive minimum 4x
Interface (Data transmission) USB
Free disk space minimum 50 MB
Working memory (RAM) minimum 256 MB
Graphic card minimum 128 MB, OpenGL-compatible
Processor minimum 1.2 GHz
Operating system Windows XP, Windows Vista, Windows 7

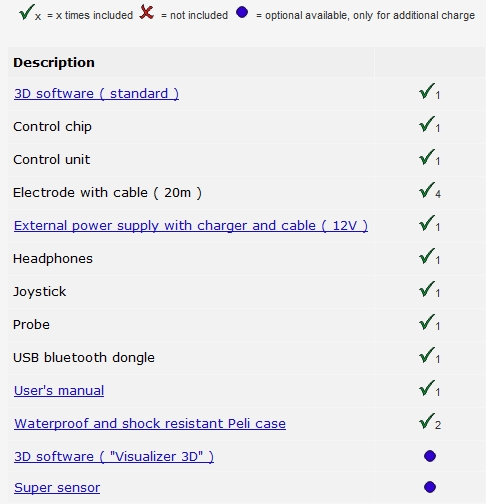

Scope of delivery:
