OKM GEMS
High resolution gradiometer
All of our metal detectors and geophysical detecting instruments are part of the "FS - Future Series", a line of our latest technology to detect buried objects and underground structures. Beside the measuring instruments it includes our 3D software which assures a detailed analysis of the measured results.
The GEMS is a HR-Gradiometer, which is principally made to find ferromagnetic metals like iron, nickel and kobalt. With the optional available Super Sensor there is also a discrimination between precious and non-precious metals possible. Even cavities like graves, tunnels and grave chambers can be located with the Gems.
The device includes the following functionality:
- Accoustical magnetometer
- Graphical field research
- Evaluation of measured results on a computer
All recorded measured value can be stored in the internal memory of the device temporarily and later transfered to a computer for analysis in the software Visualizer 3D. In the internal memory of the device maximal 65500 measured values can be stored. Additionally direct data transmission via bluetooth-technology to a computer is possible.
Because of the easy handling and facile usage the GEMS is specially interesting for beginners. Already after a short working time with the device you will come to appreciate the compact scale of the equipment. The small and transportable form allows the usage of the device in in different types of terrain. So it is also easy to handle in areas with difficult access. With the retaining clip on the back side of the device the GEMS is also portable on a girdle.
Specifications:
The following technical indications are medial values. During operation small variations are quite possible.
Control unit
Data transmission (Bluetooth)Technology Bluetooth
Frequency 2.4 – 2.4835 GHz
Maximum Transfer Rate 1 Mbps
Receiving Sensitivity -85 dBm
Maximum Range approx. 100 m
Computer, minimum requirements
The computer is not part of the scope of delivery. The indicated values should help you for a correct selection of a suitable computer for analysis of your measured results.CD-ROM drive minimum 4x
Interface (Data transmission) USB
Free disk space minimum 50 MB
Working memory (RAM) minimum 256 MB
Graphic card minimum 128 MB, OpenGL-compatible
Processor minimum 1.2 GHz
Operating system Windows Vista, XP, 98SE, 2000

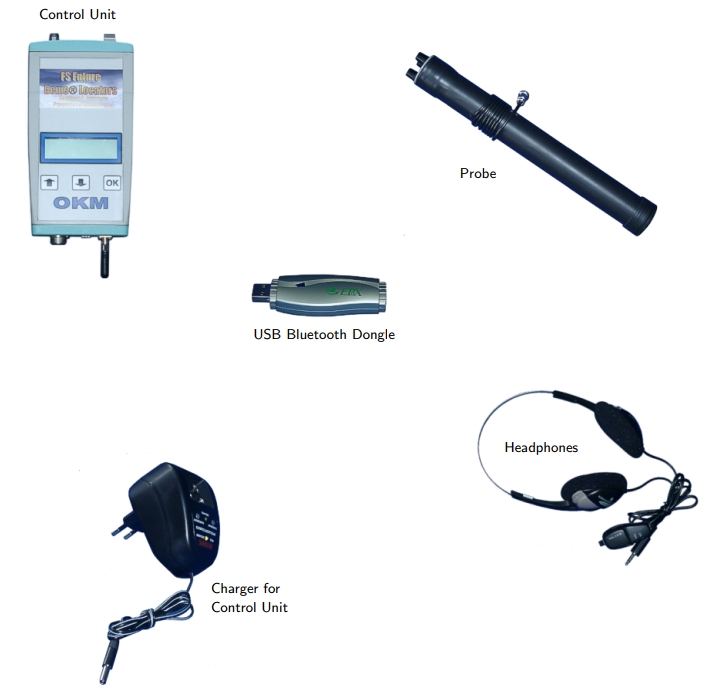

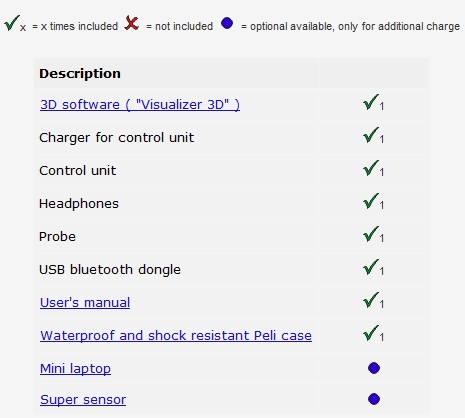

Scope of delivery:
Download:
