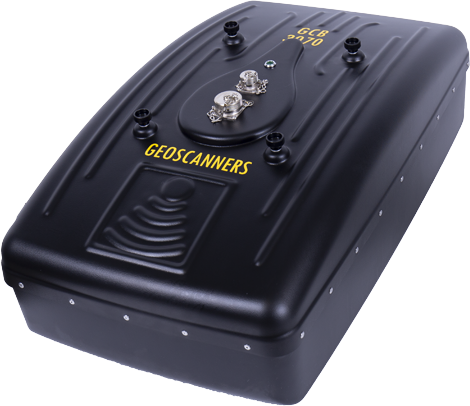

Geoscanners GCB-3070
GCB-3070 is part of the Geoscanners Smart Antenna series. It is a dual frequency smart antenna that provides native two channel GPR data collection. By using a smart antenna, in particular the GCB-3070 antenna, the GPR operator can collect data from both shallow and deep regions in one go. This way of collecting data reduces the time for the data acquisition by half when compared to single antenna operations. Furthermore, the collected data has idealy matched positioning, making it quite easy to observe the correlation between the information visible in the two channels.
GCB-3070 consists of a dedicated 300MHz antenna channel, 700MHz antenna channel and an integrated channel multiplexer. The performance of the 300MHz channel is comparable to the single channel Geoscanners GCB-300 antenna, with an improvement in the top resolution and slightly less penetration due to the extended distance between the transmitter and receiver.
The 700MHz channel results are comparable the Geoscanners GCB-700 antenna. The modifications in the design of the modern GCB-3070 antenna compared to GCB-700 resulted in a much wider frequency bandwidth, which improves the data even more.
Just like the rest of the smart antennas, GCB-3070 uses an advanced communication protocol when connected to a radar control unit. Through this protocol, the smart antenna will set its own default settings and do a system diagnostic check upon each start, allowing for easier usage. Because of the advanced technology and easy solutions for the user, the smart antennas can can only be used with the Akula 9000C or newer radar control units.
Area of Application
- Utility detection
- Shallow engineering
- Environmental applications
- Forensics
- Close to surface void detection
Features
Technical specifications
