Aka Sorex

АКА Sorex- entry level device

AKA invites you to become the owner of a selective eddy current metal detector, the oldest of all AKA Sorex - Sorex PRO models. The remaining models are discontinued: AKA Sorex 7280 and AKA Sorex 7280M. Development engineers of the Russian market leader in search and inspection technology are constantly improving production technologies and are developing new equipment models. The Sorex PRO model was the result of the best approbations of software and hardware solutions of previously released series. It is brought a lot of original ideas that made the search more efficient and comfortable. Innovations and new technical approaches have made Sorex PRO a universal device. You can purchase Sorex at a pleasant price right on this site.

aka_sorex_pro

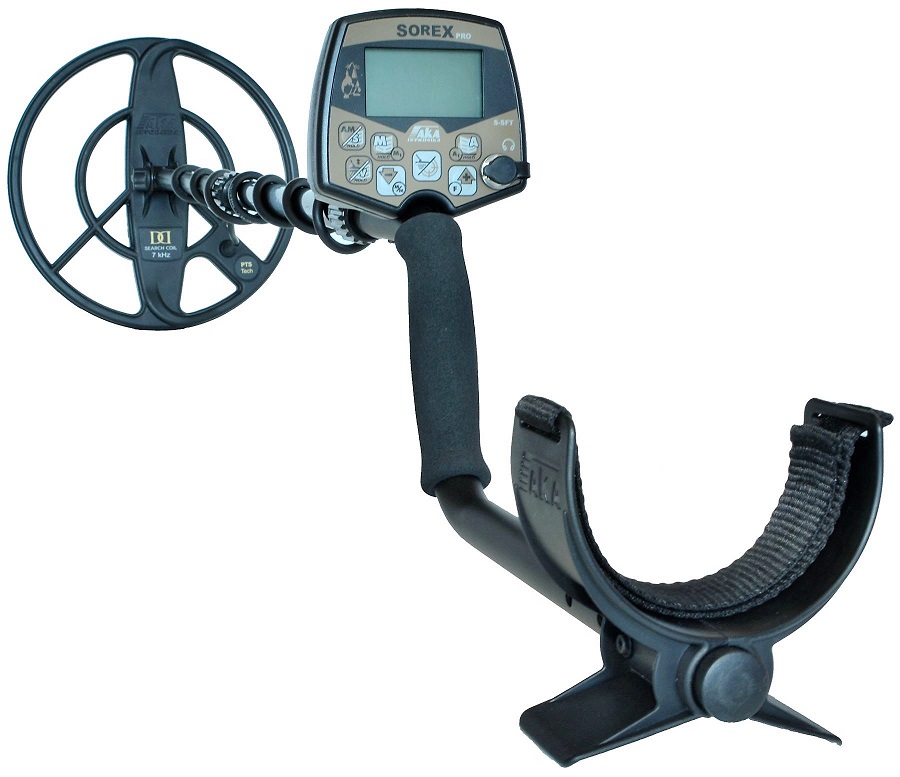

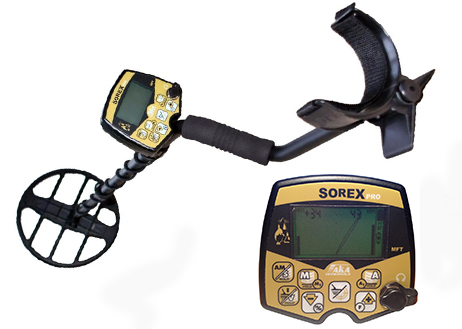

Multi-frequency Sorex PRO is based on the basic Sorex 7281, which is known among treasure hunters. It is powered by 4 AA batteries. Any sensors work with it, regardless of frequency and dimensions. Traditionally, information flows through two channels: one detects a target, the other identifies it. All Sorex models and the PRO version search when the sensor moves. However, when an object is detected, to more accurately find it, the device switches to static mode. Sorex metal detector prices are very attractive. The device’s operation is based on a proprietary method of hodographic visual identification of search targets, recognized as the most informative of the existing ones. According to his own preferences, the owner of the device can configure the type of sound identification.

The main feature of this model of search technology that distinguishes it from other series is that the owner can switch the basic signal processing algorithms. It means the possibility of increasing the reliability of target identification, improving the adaptation of the device to the search conditions.

All Sorex PRO signal processing work is done by using 3 independent algorithms. MSF allows the device to operate efficiently in relatively clean debris areas. SSF determines the magnetic properties of targets similar to non-ferrous metals. The GA - M / M metal debris filtering algorithm provides high quality search in littered areas.

Sorex PRO has the ability to perform all kinds of search tasks. It is one of the most versatile devices, breaking records in depth of search and unique identification of objects.

The AKA Sorex PRO metal detector is a multi-frequency device that has fairly simple controls and a variety of functions. The detector has a wide range of multi-sized sensors. It works on the principle of an induction compensated converter. Equipped with a modern hardware-software interface.

It operates on a two-channel scheme. The first is the detection channel. It transmits a signal in real time. The second is an identification channel that delivers short and different-frequency signals during the passage of a special sensor over a detected object.

Signal processing is carried out according to three independent algorithms:

MSF

GA (metal garbage)

SSF

In this model, manufacturers were able to modernize the soil balancing system. A hodograph is provided. A large modern German-made display is installed.

Professional , computerized , high-sensitivity , multi-frequency metal detector with original, patented , no analogue technology of space- harmonic filtering (SFT), which allows to significantly improve the quality of the identification of objects.

Specifications:

- An electronic unit, which allows transmission and processing of signals in the range of 1 to 30 kHz .
- Automatic compensator input allows to reach the sensitivity to 45cm for 25mm. coin ( with search coil 10 " DD/7kHz )
- A unique algorithm for identification of flat metal objects (S- algorithms)
- Large high contrast display
- Technology for immediate visualization of the objects during a search in the form of spectral - graphic images of the LCD display ( 128x64 )
- Two independent channels of search: RT ( in real time) and ST ( short ton )
- Signal processing in 3 independent algorithm - MSF, SSF and MM .
- 4 modes of sound indication of the possibility of setting the tone and limits of sound
- Automatic and Manual Ground Balance
- A system for automatic correction of ground balance with adjustable speed readjustment
- Dynamic and static modes of searching
- Unique algorithm discriminatory suppression and display " hot rocks "
- 6 course menu with instant access to all primary and secondary settings
- A quick overview of the status of the master settings
- S- shaped ergonomic design
- Waterproof search coil
- Possibility for rapid operational change search coils in the field without presets
- Power supply - 4 batteries 1,5 V AA
- Time to work with one set of batteries - up to 30 hours, depending on modes .
- Weight with batteries - 1,15 kg.
Additional search coils :
- 6 "/ 14kHz
- 6 " x10 " - 7kHz or 14kHz or 19kHz
- 9 "x12" - 7kHz or 14kHz
- 13 "- 3kHz or 7kHz
- 15 "- 3kHz

The main original feature of this detector and all the other models of Aka is a "hodograph" identification of targets, which allows to define targets very easy and with an exact value. No other metal detector brand has such an identification.
There are 3 algorithms to choose from, algorithms are best described as 3 chips that control the detector in different ways based on recovery speed and desired targets.
All 3 algorithms named MSF, SSF and MM have their own parameters, for example if you are using MM which is high trash mode and a very fast recovery speed all you settings such as discrimination, sensitivity, audio tone , etc are all saved under that feature, so when using another algorithm such as SSF you can save a different range of settings to suit your search requirements.
SSF is primarily for use in areas with large flat iron or heavily rusted iron plates, these are usually detected with mixed signal or are often confused as a non-ferrous signal.
When using algorithm SSF, these errors are avoided the machine clearly identifies that the detected signal is iron.
MSF is more of an all round setting, it has a medium recovery speed which rejects or identifies most iron with ease, this is best describes as a low to medium trash setting and will suit most people.
MM is also known as metal trash (MT), it is very dynamic and an ideal setting for working amongst high iron contamination such as ancient sites, the audio response is very sharp and precise so a slow sweep speed is recommended for MM mode.

Type — Discriminating Metal Detector;

10mm coin — 18 cm.; 25mm coin — 45 cm.; Helmet 2 world — 140 cm.; Maximum depth — 250 cm.;

Weight in working condition (without batteries) — 1,3 kg.; Shipping Weight — 1,7 kg.

Included in the АКА Sorex PRO box:
